Plenty of bit holders, but you can never have enough drawer space.

Plenty of bit holders, but you can never have enough drawer space.

  • Like
Reactions: szilagyi28

· Firewood Inquisitor
Joined
·
441 Posts

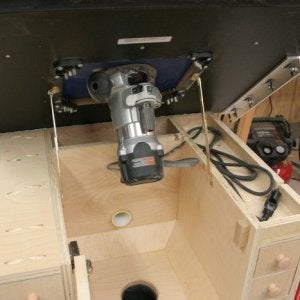

I'm not sure what I've still got around. This design is my own combination of the Kreg and New Yankee Workshop designs. I liked the Kreg design for having the dust collection setup inside the cabinet (the NYW design had an external Y fitting which would keep it from being close to a wall), so this has the U shaped upper big drawer to get around the dust fitting going down from the router enclosure. But I didn't like the Kreg design for the bit holders, so I stayed closer to NYW for that, plus I've got a small wire chase from the router enclosure over the right bit storage and out to the power switch on the side. And I went with the Kreg top/fence which I've been pretty happy with and it's on a piano style hinge with locking supports. The cabinet is on 4 double locking casters, so when they're all locked the unit is nice and heavy and stable - doesn't move. The only thing that's kinda awkward is that I've got a Porter Cable router in it pretty much all the time and it's every easy to ding my knuckles on the insert leveling screws when I'm trying to loosen/tighten the collet with the wrench, so I just have to be really careful there.


· Registered
Joined
·
0 Posts
Best cabinet I've seen so far in my treasure hunting. I appreciate your merging of several designs. It appears you took the most positive aspects of both design and produces a very functional cabinet. It has all the features of the cabinet i hope to build.
