I wanted to preface this post by saying that although accomplished furniture makers, we are by no means advanced marquetry craftsmen.
So... those of you who are masters at this craft will understand our beginner efforts at this skill... though helpful suggestions are ALWAYS welcome.

My youngest son (Brian) likes making intricate furniture as much, if not more than, the larger projects we do. He recently created an end table w/ a small inlay for us and we took a few pics of the various stages of it coming together. This work is historically referred to as marquetry.
Like all design work, it starts with a drawing.

Then he created this bird from 1/8th inch maple.

Then he used the bird cut out to mark exactly the size and shape of the area to be removed on the table top.

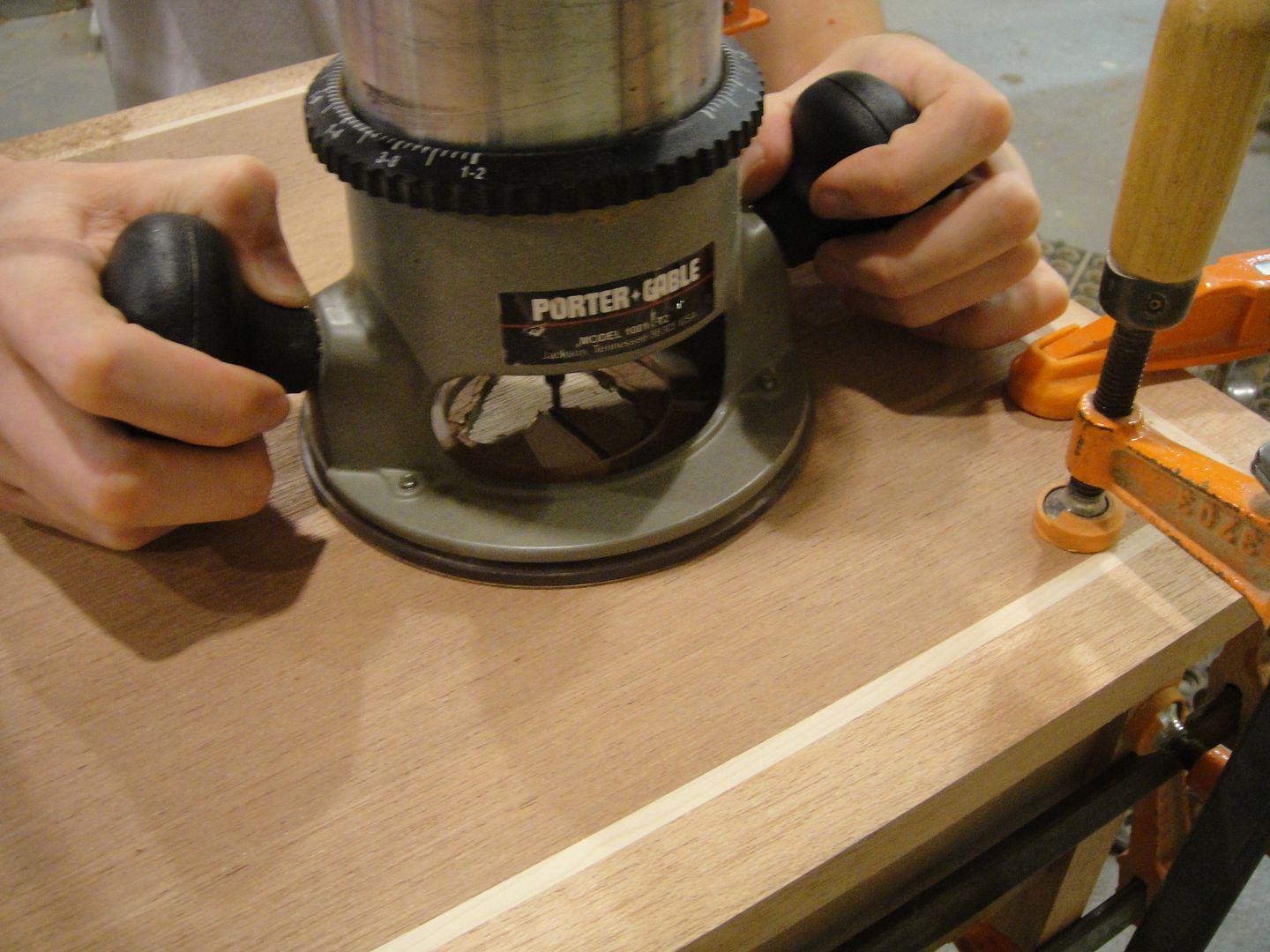

The router is used to create the inset area.

He made the bird's beak from a naturally red-colored wood called Paduak.

Inlay prior to finish coat.

Here is a detail of the drawer within the skirt.

Hand-rubbed oil finished with a urethane top coat.

I began to think of how great one of these inlays would look as a small 'signature' on one of the doors or drawer fronts in a kitchen or entertainment unit. A rosette made from a contrasting wood might also make a piece richer.
Here are a pair of doors I made many years ago for a client using what is known as marquetry inlay banding.

It seems that the possibilities for cabinet and furniture makers are endless.
Many use the word 'custom' but this is the kind of attention that gives that word meaning.

We make a whole bunch of different things out of wood / Check out the site, if you'd like...


Russell Hudson / Hudson Cabinetmaking, Inc.


·
Registered
Joined
·
1,718 Posts
Looking good for a first inlay Beautiful there, I did a class on here see if that helps you to, Marquarty is a little different from inlay one requires a vacum press or coll press an one just clamps. But outstanding work there
Roy :thumbsup::thumbsup::thumbsup::thumbsup::thumbsup:


·
Log dog
Joined
·
7,935 Posts
Well talented son you have there. Looks very nice
Thanks for sharing.
Now what about you. Are you just as talented as your boy?


·
Registered
Joined
·
134 Posts
Discussion Starter #4
Looking good for a first inlay Beautiful there, I did a class on here see if that helps you to, Marquarty is a little different from inlay one requires a vacum press or coll press an one just clamps. But outstanding work there
Roy :thumbsup::thumbsup::thumbsup::thumbsup::thumbsup:
Thanks for the clarification, Roy / Marquetry is like making a puzzle to adhere to a substrate vs (inlay) cutting out a shape in the surface to inset a different piece / makes sense / I'll check out the class


·
Registered
Joined
·
134 Posts
Discussion Starter #5
Well talented son you have there. Looks very nice
Thanks for sharing.
Now what about you. Are you just as talented as your boy?
taught 'em most all they know, but I hope they take all these skills far beyond their Dad's accomplishments...
