post #1 of 5 Old 07-01-2013, 04:42 PM Thread Starter
Junior Member

Join Date: Jun 2013
Posts: 13
View gmack's Photo Album My Photos
patio table mortising (angles)

The wife saw this patio table this weekend and wants me to try and build later this summer (price tag was $4,200 )

How did they angle the mortise slots? It looks like they're using 4x6's, how wide do you think the tenon is? I have only done M &T on 1 by and not very well with a mortising jig. On the cross piece, there is no pin holding it together, how could the joint hold when you got people sitting around it and have it outdoors?

This is probably way above my skill level but thought I'd ask you guys. The joinery was so tight, almost like the pieces were one. I would think for a table this size and weight if they would need to be perfect.
Attached Thumbnails
Click image for larger version

Name:	patio table 1.jpg
Views:	155
Size:	45.7 KB
ID:	74435

gmack is offline
Sponsored Links
Advertisement

post #2 of 5 Old 07-02-2013, 08:00 AM
Senior Member

Join Date: Sep 2011
Posts: 26,176
View Steve Neul's Photo Album My Photos
If you get a expensive professional hollow chisel mortiser the table will tilt on a angle to mortise like that. Building one table you could mortise it the 18th century way. Drill out most of the material on an angle and hand chisel the rest of it. As thick as the timber is the tenon is probably 1" thick. The joints would be stronger if glued together with a glue such as Titebond III but would be stronger if you put pins in there too. If you manage to make a good tight joint the pins would only help a little if you don't like the look.

Last edited by Steve Neul; 07-02-2013 at 08:04 AM.
Steve Neul is online now
post #3 of 5 Old 07-02-2013, 10:54 AM Thread Starter
Junior Member

Join Date: Jun 2013
Posts: 13
View gmack's Photo Album My Photos
great thanks for the info Steve
gmack is offline
Sponsored Links
Advertisement

post #4 of 5 Old 07-02-2013, 10:57 PM
Senior Member

MissionIsMyMission's Avatar

Join Date: Apr 2012
Location: Guthrie, OK
Posts: 353
View MissionIsMyMission's Photo Album My Photos

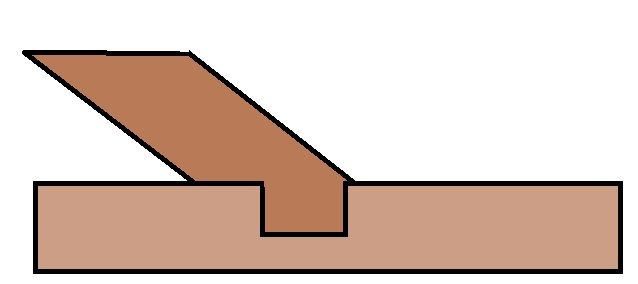

They may not be angled mortise's. They may be fashioned like so...


It's the way I would do it.

Still Got ALL my Fingers!!!
********* *********
MissionIsMyMission is offline
post #5 of 5 Old 07-03-2013, 12:00 AM
Senior Member

Join Date: Jan 2012
Posts: 1,874
View trc65's Photo Album My Photos
Quote:
Originally Posted by MissionIsMyMission View Post
They may not be angled mortise's. They may be fashioned like so...


It's the way I would do it.
+1 It's a lot easier this way

"Good Behavior is the last refuge of mediocrity" -- Henry S. Haskins
trc65 is offline
