out feed table

i need to mkae a table saw outfeed table what i am using right now is a bd workmate with a board clamped in it to support the workpeice but the board is only an inch thick and 12 long so i need to come up with a better idea for an out feed table but i dont have any idea what to do
Woodworkingkid is offline
Sponsored Links
Advertisement

post #2 of 12 Old 04-25-2011, 11:27 AM
Scotty D

mdntrdr's Avatar

Join Date: Dec 2009
Location: IL.
Posts: 4,479
View mdntrdr's Photo Album My Photos
A simple table with plastic laminate.
Attached Thumbnails
Click image for larger version

Name:	WAXED TS 007.jpg
Views:	239
Size:	99.5 KB
ID:	23849

Click image for larger version

Name:	WAXED TS 002.jpg
Views:	251
Size:	102.0 KB
ID:	23850


Scott
OH, wait a minute ............Yep!.............That's what he said!

"Like" us on facebook
www.ScottyDsWoodworks.com
Watch Our YouTube Video
mdntrdr is offline
post #3 of 12 Old 04-25-2011, 12:49 PM
The Young Blood

Join Date: Oct 2010
Location: Pennsylvania
Posts: 550
View Locodcdude's Photo Album My Photos
My outfeed table is just a few 2x4's with a 5/8" plywood top with some hardboard layed over it. A shelf on the bottom holds my router table. I also put this on locking casters so when I use my tablesaw, it easily moves in front of it. The dimensions are 2'x3'. Here's a picture.
Locodcdude is offline
Sponsored Links
Advertisement

post #4 of 12 Old 04-25-2011, 01:02 PM
Old School

cabinetman's Avatar

Join Date: Jul 2007
Location: So. Florida
Posts: 24,027
View cabinetman's Photo Album My Photos
Quote:
Originally Posted by mdntrdr View Post
A simple table with plastic laminate.
What about miter slots?








.
cabinetman is offline
post #5 of 12 Old 04-25-2011, 01:09 PM
Scotty D

mdntrdr's Avatar

Join Date: Dec 2009
Location: IL.
Posts: 4,479
View mdntrdr's Photo Album My Photos
Quote:
Originally Posted by cabinetman View Post
What about miter slots?

Pics were taken before routing.... they are there now.

Scott
OH, wait a minute ............Yep!.............That's what he said!

"Like" us on facebook
www.ScottyDsWoodworks.com
Watch Our YouTube Video
mdntrdr is offline
post #6 of 12 Old 04-26-2011, 04:56 AM
Junior Member

Join Date: Apr 2011
Location: usa
Posts: 4
View roger8's Photo Album My Photos
Quote:
Originally Posted by mdntrdr View Post
Pics were taken before routing.... they are there now.
Did you also take pics after routing??
roger8 is offline
post #7 of 12 Old 04-26-2011, 08:07 AM
The village amadán.

Mr Mac's Avatar

Join Date: May 2010
Location: Lula, GA
Posts: 783
View Mr Mac's Photo Album My Photos

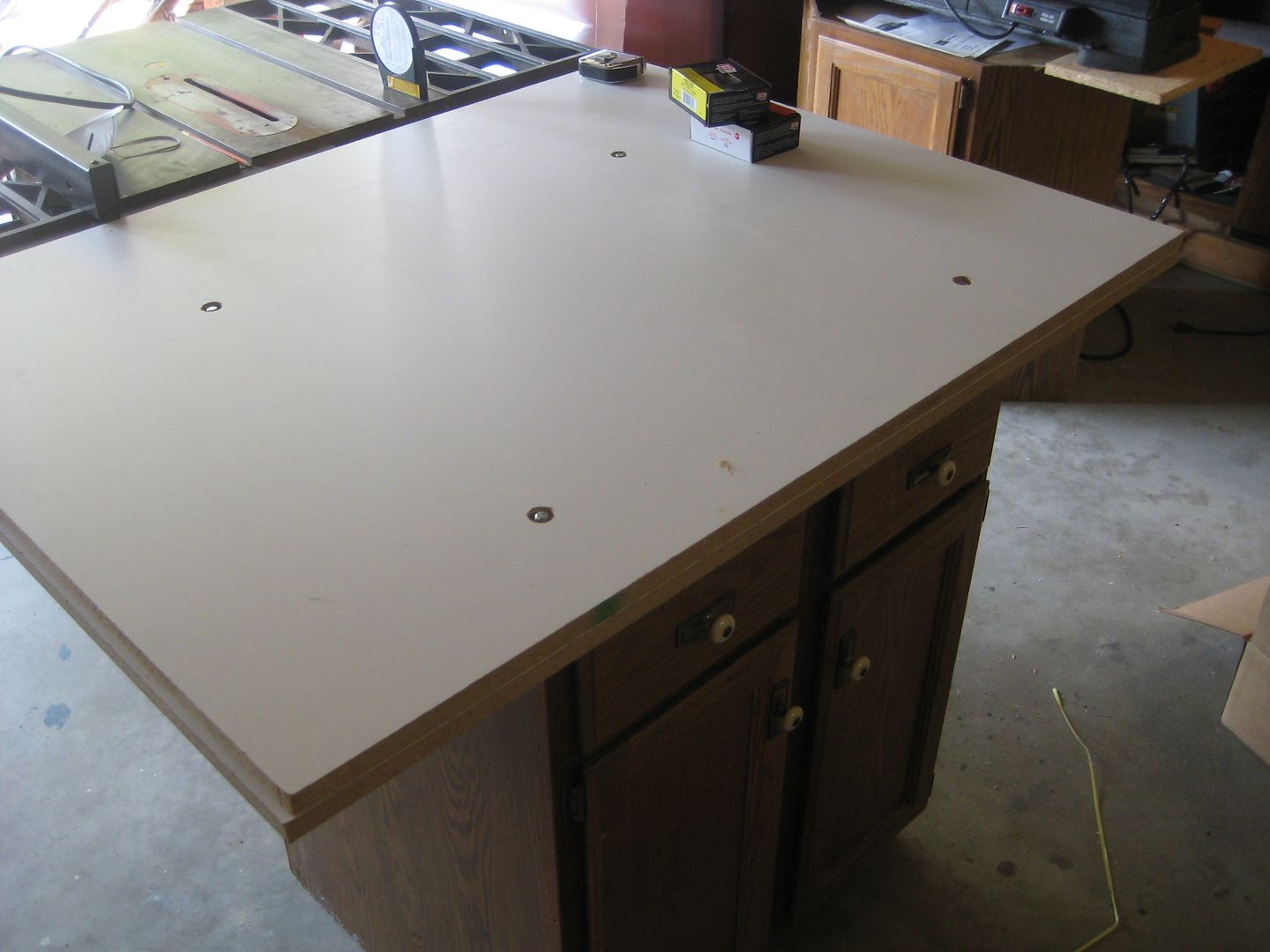

Mine is a kitchen base cabinet we got free from CL and a damaged 3/4"X4'X8' sheet of melamine I got from Home Depot for $10 (it was the top sheet and the metal shipping band chipped out two hunks as it crossed over the stack. I simply made two rip cuts to get rid of the broken pieces and then reused that piece as an auxiliary fence.) bolted to that cabinet.

The outfeed table surface sits about an eighth of an inch below the table saw table making it near perfect for sheet goods!

My $10 outfeed table.


After routing the miter grooves and cutting an opening for the blade guard.

But the wisdom that is from above is first pure, then peaceable, gentle, and easy to be intreated, full of mercy and good fruits, without partiality, and without hypocrisy. James 3:17

Last edited by Mr Mac; 04-26-2011 at 08:10 AM.
Mr Mac is offline
post #8 of 12 Old 04-26-2011, 06:49 PM
The Young Blood

Join Date: Oct 2010
Location: Pennsylvania
Posts: 550
View Locodcdude's Photo Album My Photos
My outfeed table doesn't have miter slots. My reasoning is this. My table saw is just a benchtop model and I move it around here to there. The outfeed table wasn't specifically designed for the task at hand for outfeed. It was originally made for a bench that is able to be thrown in the truck for what ever purpose, or wheeled around the shop for the planer. It ended up being the same height of the table saw, so I use it for that now. My boards that I cut with the miter gauge usually aren't huge, I own a miter saw that's tuned well. If anything else, I move the table out of the way for this one cut :D
Locodcdude is offline
post #9 of 12 Old 04-26-2011, 10:25 PM
In History is the Future

firemedic's Avatar

Join Date: Dec 2010
Location: South Louisiana - Gonzales
Posts: 6,423
View firemedic's Photo Album My Photos
Not long ago someone posted pictures of a folding out feed table. Looked like it did the job very well. Is space an issue for you?
firemedic is offline
post #10 of 12 Old 04-26-2011, 10:53 PM Thread Starter
Senior Member

Join Date: Jan 2011
Location: Detroit Michigan
Posts: 782
View Woodworkingkid's Photo Album My Photos
Space is always an issue but I have the room for a 4 by 4 outfeed table

Lighten up . It's just the internet.
Woodworkingkid is offline
post #11 of 12 Old 04-26-2011, 10:55 PM
In History is the Future

firemedic's Avatar

Join Date: Dec 2010
Location: South Louisiana - Gonzales
Posts: 6,423
View firemedic's Photo Album My Photos
Quote:
Originally Posted by Woodworkingkid View Post
Space is always an issue but I have the room for a 4 by 4 outfeed table
I'll try to find the pictures tomr... off to bed for me...
firemedic is offline
post #12 of 12 Old 04-26-2011, 11:07 PM Thread Starter
Senior Member

Join Date: Jan 2011
Location: Detroit Michigan
Posts: 782
View Woodworkingkid's Photo Album My Photos
Thanks and same with me I have to get up at 5
