Question Need advice on cabinet doors hinged from top

I've exhausted my research, hope someone can help. I'm making glass doors for a cabinet housing my sound equipment, want the doors to open from the top, one for each shelf. Would be about 12" x 32" each, 3 of them. No frame. I would like the doors to open upward and stay up until I closed them.

I've looked at all kinds of hardware including lift-up and stay-up hinges (some pretty expensive considering I'd need 6 of them). Thought about modifications on drop-table hinges. I've thought about using rails (like drawer slides) so the door would rise up and then could slide into the cabinet on the rails. Blum has a lot of hardware hinge options but can't find anything at a reasonable price that would keep the door up/open. Doors will go on a simple frameless cabinet, will be similar to old antique library units.

Am I looking for something that doesn't exist? There's got to be a solution that won't break the bank. Any advice is appreciated.
JennyMM is offline
Sponsored Links
Advertisement

post #2 of 14 Old 01-29-2018, 10:32 PM
Senior Member

Join Date: Aug 2017
Posts: 3,171
View Tool Agnostic's Photo Album My Photos
Look for "torsion hinges" "torque hinges" or "toy box hinges". These are hinges with resistance, designed to stay in whatever position you put them.

This is obviously not the ideal solution for you, but it would work. I bought three heavy duty torsion hinges for a future project - a bathroom mirror that hangs at an angle below a window that is above the sinks. The mirror will allow adjustable angles so people of different heights can use it easily.

It isn't much, but it is all I can offer. I hope this helps.
Tool Agnostic is online now
post #3 of 14 Old 01-30-2018, 03:38 PM Thread Starter
Junior Member

Join Date: Jan 2018
Location: Colorado Springs, CO
Posts: 10
View JennyMM's Photo Album My Photos
Thanks for the suggestions ... I will search for them.
JennyMM is offline
Sponsored Links
Advertisement

post #4 of 14 Old 01-30-2018, 04:10 PM
Senior Member

Join Date: Jul 2008
Location: Florida Panhandle
Posts: 12,527
View GeorgeC's Photo Album My Photos
Gas pistons like used on vehicle hatches would also hold up the door.

Like These from Amazon.

George
GeorgeC is offline
The Following User Says Thank You to GeorgeC For This Useful Post:
JennyMM (02-02-2018)
post #5 of 14 Old 01-30-2018, 05:37 PM
Senior Member

Join Date: Mar 2015
Location: Garland, TX
Posts: 4,232
View Toolman50's Photo Album My Photos
Old glass front bookcases were made in such a way that each shelf had a door that lifted and slid back (recessed) into the bookcase. I donít think there was a metal hinge.
woodnthings and JennyMM like this.

If you don't have time to do it right the first time, when will you have time to do it over?
Toolman50 is offline
The Following User Says Thank You to Toolman50 For This Useful Post:
JennyMM (02-02-2018)
post #6 of 14 Old 01-30-2018, 06:23 PM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 27,730
View woodnthings's Photo Album My Photos
You may like something like this....

This is a Lawyer's bookcase where the doors have pins on the top corners which follow a routed track along the bottom of the shelves:


From Rockler:
https://www.woodcraft.com/products/w...-plan-no-700hk

More Images:
https://images.search.yahoo.com/sear...2&action=close

The answer to your question will only be as detailed and specific as the question is detailed and specific. Good questions also include a sketch or a photo that illustrates your issue. (:< D)

Last edited by woodnthings; 01-30-2018 at 06:28 PM.
woodnthings is online now
post #7 of 14 Old 01-30-2018, 07:29 PM
Senior Member

Join Date: Sep 2011
Posts: 26,187
View Steve Neul's Photo Album My Photos
The OP is asking for hinges for glass doors that do not have a wooden frame though. I don't think there is anything available for that application.
Steve Neul is offline
post #8 of 14 Old 01-30-2018, 07:45 PM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 27,730
View woodnthings's Photo Album My Photos
there's all kinda frameless glass hinges.....

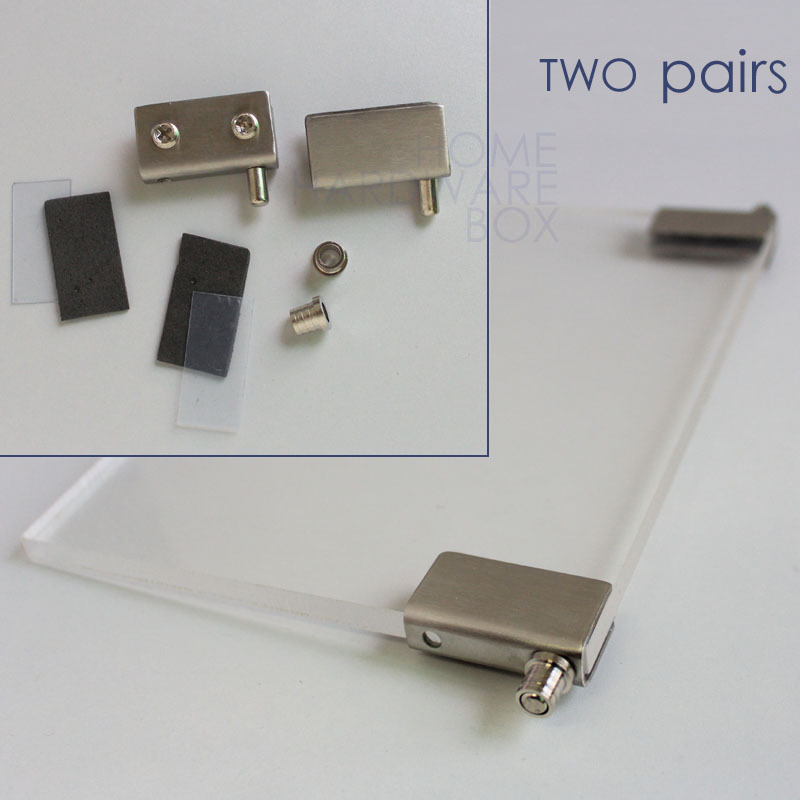

Here's what she would do to duplicate the lawyer;s book case sliding idea:


https://www.ebay.com/itm/Cabinet-Sho...-/371533039826

more frameless glass hinges:
https://images.search.yahoo.com/sear...F&action=close

The answer to your question will only be as detailed and specific as the question is detailed and specific. Good questions also include a sketch or a photo that illustrates your issue. (:< D)
woodnthings is online now
post #9 of 14 Old 01-30-2018, 07:58 PM
Senior Member

Join Date: Sep 2011
Posts: 26,187
View Steve Neul's Photo Album My Photos
Quote:
Originally Posted by woodnthings View Post
Here's what she would do to duplicate the lawyer;s book case sliding idea:


https://www.ebay.com/itm/Cabinet-Sho...-/371533039826

more frameless glass hinges:
https://images.search.yahoo.com/sear...F&action=close
I think in order to make those hinges work like the stack bookcases you would have to run a dado at the top for the pin to fit into that stopped short of coming through the front. Then when you slid the door back something would have to hold the door up in the front. I thought about a small wheel like on a pocket door but the hinge itself would hit the wheel.
Steve Neul is offline
post #10 of 14 Old 02-02-2018, 06:59 PM Thread Starter
Junior Member

Join Date: Jan 2018
Location: Colorado Springs, CO
Posts: 10
View JennyMM's Photo Album My Photos
Thank you, I looked at these, thinking I could do one gas hinge per door, but still need hinges on them. I'd like to use soft-close hinges as it sounds like the gas stay hinge might come down hard and fast. (that was from some reviews.)
JennyMM is offline
post #11 of 14 Old 02-02-2018, 07:04 PM Thread Starter
Junior Member

Join Date: Jan 2018
Location: Colorado Springs, CO
Posts: 10
View JennyMM's Photo Album My Photos
Quote:
Originally Posted by Toolman50 View Post
Old glass front bookcases were made in such a way that each shelf had a door that lifted and slid back (recessed) into the bookcase. I donít think there was a metal hinge.
Yes, I had thought about exactly that, just trying to figure out how to do it. Woodnthings posted a photo and some info that I will look into further. I hope I could route a groove, but the cabinet is already built ...
JennyMM is offline
post #12 of 14 Old 02-02-2018, 07:06 PM Thread Starter
Junior Member

Join Date: Jan 2018
Location: Colorado Springs, CO
Posts: 10
View JennyMM's Photo Album My Photos
Quote:
Originally Posted by Steve Neul View Post
The OP is asking for hinges for glass doors that do not have a wooden frame though. I don't think there is anything available for that application.
I wasn't clear enough in my original post. It is the cabinet that is frameless. The doors will be framed in wood with glass panels.
JennyMM is offline
post #13 of 14 Old 02-02-2018, 07:21 PM Thread Starter
Junior Member

Join Date: Jan 2018
Location: Colorado Springs, CO
Posts: 10
View JennyMM's Photo Album My Photos
Quote:
Originally Posted by woodnthings View Post
This is a Lawyer's bookcase where the doors have pins on the top corners which follow a routed track along the bottom of the shelves:


From Rockler:
https://www.woodcraft.com/products/w...-plan-no-700hk

More Images:
https://images.search.yahoo.com/sear...2&action=close
Yes, exactly what my first thought was, just didn't know how to proceed. Unfortunately the cabinet is already built so I'm not sure if and how I could route out a groove. There should be enough headroom for sliding the doors in though. I thought I might need something like drawer slides mounted in there. I will look at your links. Any further suggestions would be appreciated.

P.S., I have a 1/4" straight bit that could do the groove (but it doesn't have a bearing), and rabbet bits.
Attached Thumbnails
Click image for larger version

Name:	cabinetForMediaEquipment.jpg
Views:	58
Size:	57.0 KB
ID:	339025

JennyMM is offline
post #14 of 14 Old 02-02-2018, 07:53 PM Thread Starter
Junior Member

Join Date: Jan 2018
Location: Colorado Springs, CO
Posts: 10
View JennyMM's Photo Album My Photos
I'm thinking the easiest (maybe best) way to do this is to use gas stay hinges, one per door, and hinges. Like this: 4 for $13.99 https://www.amazon.com/dp/B01KPW4YQI...3LVTR35B&psc=1

For hinges, I could use anything but am hoping the soft-close would work ... and want some adjustable to be able to properly align the doors to the cabinet. Like these? Only $5.99/pair.
https://www.amazon.com/dp/B073VVWBB4...3LVTR35B&psc=1
Or these: https://www.amazon.com/Blum-38N355B-...TTJM3E0DN0XM77

Any thoughts out there? Thanks much!

Last edited by JennyMM; 02-02-2018 at 08:00 PM. Reason: addition to post
JennyMM is offline
