A few shop tables/fixtures.

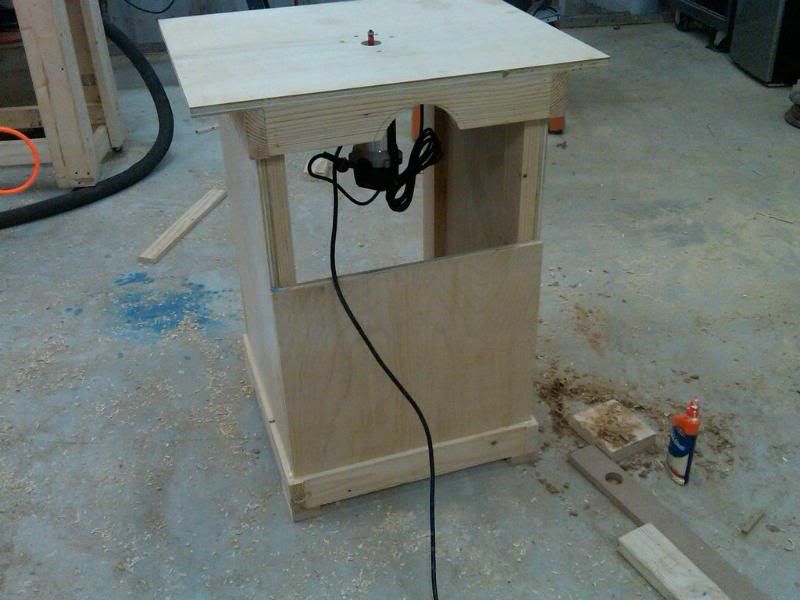

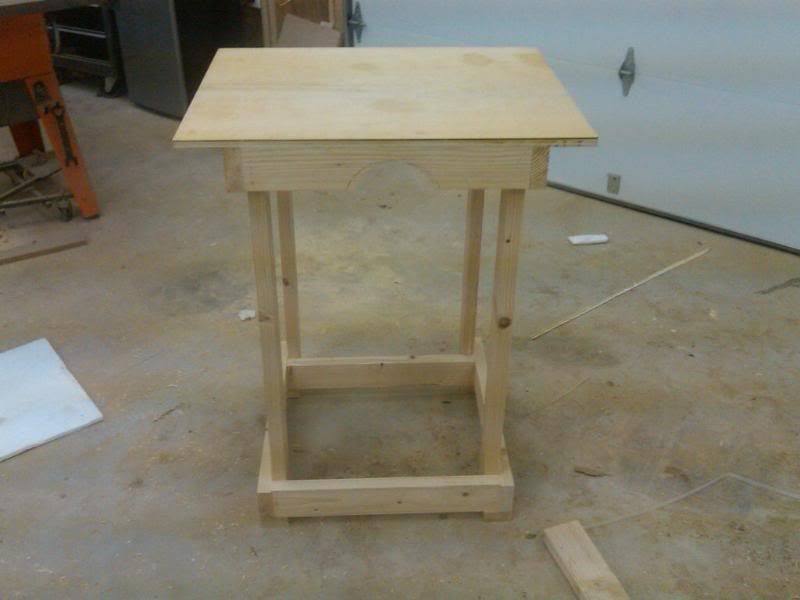

Here is a router table I am working on...



Colt W. Knight is offline
Sponsored Links
Advertisement

post #2 of 6 Old 01-03-2010, 06:17 PM Thread Starter
Senior Member

Join Date: Nov 2009
Posts: 868
View Colt W. Knight's Photo Album My Photos

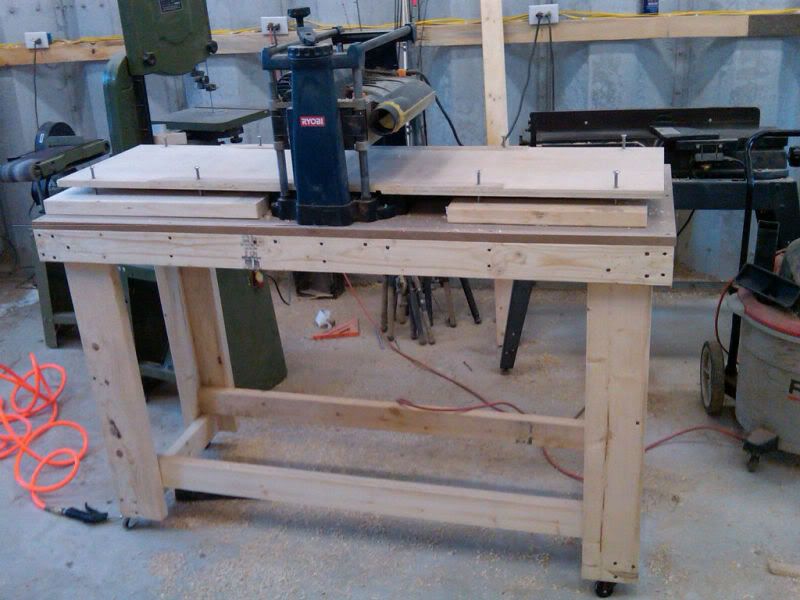

Planer table with auxillary infeed and outfeed tables...

Oscillating Spindle Sander mobile base...
Colt W. Knight is offline
post #3 of 6 Old 01-03-2010, 09:44 PM
Member

Join Date: Jul 2008
Location: I am in Holland Michigan.
Posts: 37
View olddutchman's Photo Album My Photos
How is the planer set-up. It looks as tho you use it as a jointer?
olddutchman is offline
Sponsored Links
Advertisement

post #4 of 6 Old 01-03-2010, 10:00 PM Thread Starter
Senior Member

Join Date: Nov 2009
Posts: 868
View Colt W. Knight's Photo Album My Photos
It is a ryobi 13" two blade thickness planer. Stock, it doesn't come with any infeed or outfeed tables or a work bench. When setup in stock form, the snipe is horrible on both ends, about 10th of an inch 2.5" back. Yikes. That meant I had to glue up two ends or cut off 5 inches of stock. The table I added is 3/4" birch ply wood that runs continuously through the planer giving the stock a place to rest. both wings on the auxilliary table have 4 set screws in brass bushings to level both sides of the table so stock is fed through evenly. This dramatically reduces snipe, and if you are really careful, you can eliminate any appreciable snipe all together. With sharp blades, the ryobi produces an extremely smooth finish, especially on straight grain hardwoods.

My jointer is behind the planer table. Its an old craftsman. Its old and warn out. I am hoping to replace it soon with a big spiral cutterhead deal soon.
Colt W. Knight is offline
post #5 of 6 Old 01-04-2010, 08:53 AM
Senior Member

Join Date: Dec 2009
Location: North Bay, Ontario
Posts: 127
View Burnt_Blade's Photo Album My Photos
Colt, I like your setups. Just gonna suggest you consider making the top of your router table with some hinges, so you could lift it up for bit changes etc. I have a plan for that type of thing in one of my mags here somewheres...if your interested I can dig it out for ya.
Burnt_Blade is offline
post #6 of 6 Old 01-04-2010, 12:00 PM Thread Starter
Senior Member

Join Date: Nov 2009
Posts: 868
View Colt W. Knight's Photo Album My Photos
I would like to see that.
how much easier do the hinges make things? Right now all I need to do is open the a lever and my router motor slides out.
