Crib conversion kit

So just to idiot check myself:

We have this crib, and the conversion kits here and here are $350. I already have some of the same stain from when I made a bookcase and table to match the crib, so I don't see why I shouldn't just make the kits. I've got other things on my schedule competing for time, but this looks pretty straightforward.

I have all of the bolts, as they came with the crib, so I'll just need some threaded inserts judging from the assembly instructions.

How large do side rails usually need to be on a children's bed? If I make it like the same piece on the crib side it'd be 4/4 thick and 3 1/2 deep, but I'm thinking a real bed will want deeper rails. Perhaps I'll go measure the ones on my bed... Length for a double bed mattress is 75", do you make the rails exact or is there a fudge factor in making beds?

This looks like it'll be cake, but that also makes me feel like I'm overlooking something...
Gilgaron is offline
Sponsored Links
Advertisement

post #2 of 8 Old 08-27-2013, 08:20 AM
Moderator

Steve Neul's Avatar

Join Date: Sep 2011
Posts: 25,759
View Steve Neul's Photo Album My Photos
I'm confused. Are you wanting to make the conversions for the crib or make a childs bed in a similar design?
Steve Neul is online now
post #3 of 8 Old 08-27-2013, 09:59 AM Thread Starter
Senior Member

Gilgaron's Avatar

Join Date: Mar 2012
Location: Central Ohio
Posts: 911
View Gilgaron's Photo Album My Photos
I just want to make the conversion (rails/slats, toddler bet front rail). You're probably just confused because it seems stupid easy, and I'm mostly posting because I wanted another pair of eyes to make sure I'm not missing an obvious pitfall.
Gilgaron is offline
Sponsored Links
Advertisement

post #4 of 8 Old 08-27-2013, 11:27 AM
Moderator

Steve Neul's Avatar

Join Date: Sep 2011
Posts: 25,759
View Steve Neul's Photo Album My Photos
I'm sorry, I was confused because I'm on dial up internet and the link didn't completely load. All I was getting this morning was the top picture and I couldn't figure out what the 75" mattress was about. The twin bed mattress is 39"x75". If the width would allow I would make the space between the side rails 40" and the length between the head and footboard 76" allowing an inch for bedding. Rather than mortising the slats into the side rails like shown I would just put an strip of oak 3/4"x 1 1/2" at the bottom of the rail, the full length of the rail. Since there is no box springs I think I would make the slats out of hardwood as well and screw them to the strip of oak on the side rail. That way if the children start jumping on the bed the side rails don't defect outward and let the slats fall. Depending on how ridgid the mattress is you might need to put a piece of 1/2" plywood over the slats for more support. I think you are right about the 3 1/2" side rails. I think they need to be 5" to 7" wide even using oak.
Steve Neul is online now
post #5 of 8 Old 08-27-2013, 01:41 PM Thread Starter
Senior Member

Gilgaron's Avatar

Join Date: Mar 2012
Location: Central Ohio
Posts: 911
View Gilgaron's Photo Album My Photos
Great, thanks for the opinions! And good idea about screwing down the slats... I've seen beds with them screwed and otherwise, but hadn't considered the benefits of screwing them down with rowdy play.
Gilgaron is offline
post #6 of 8 Old 08-27-2013, 02:01 PM
No Longer Here

Join Date: Oct 2007
Posts: 3,536
View frankp's Photo Album My Photos
Piece of cake is right. Make it yourself. I will caution that if it's for children we recently had an incident where my 1 1/2 year old got stuck between her mattress and the frame because of a poor frame design (stupid hand-me-downs) that I haven't addressed yet. Don't make the gap for bedding too large. 1 inch should be more than sufficient as Steve indicated.

I've never understood not using a box spring, they're ridiculously cheap and make for a far more comfortable bed (in my opinion) but if you don't have one, definitely put some ply under the slats. Or even a buckie board like used for bunk beds.
frankp is offline
post #7 of 8 Old 08-27-2013, 10:47 PM
Senior Member

chopnhack's Avatar

Join Date: Dec 2007
Location: Somewhere sunny
Posts: 155
View chopnhack's Photo Album My Photos

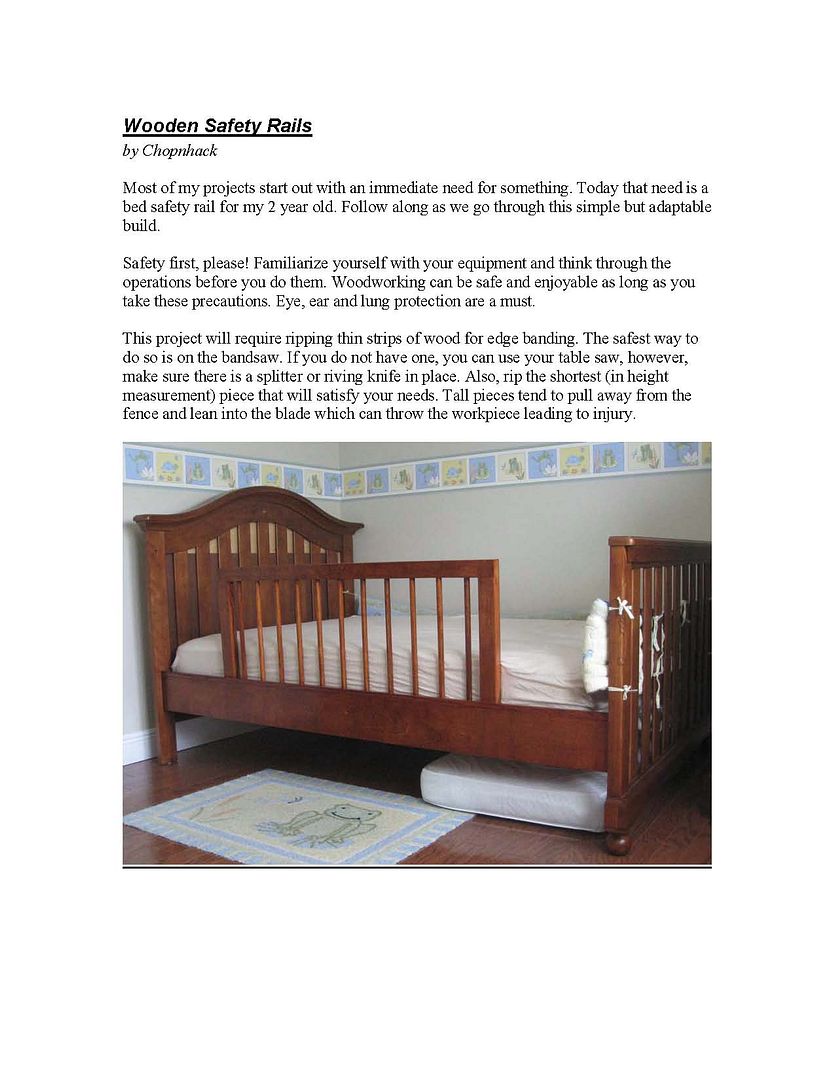

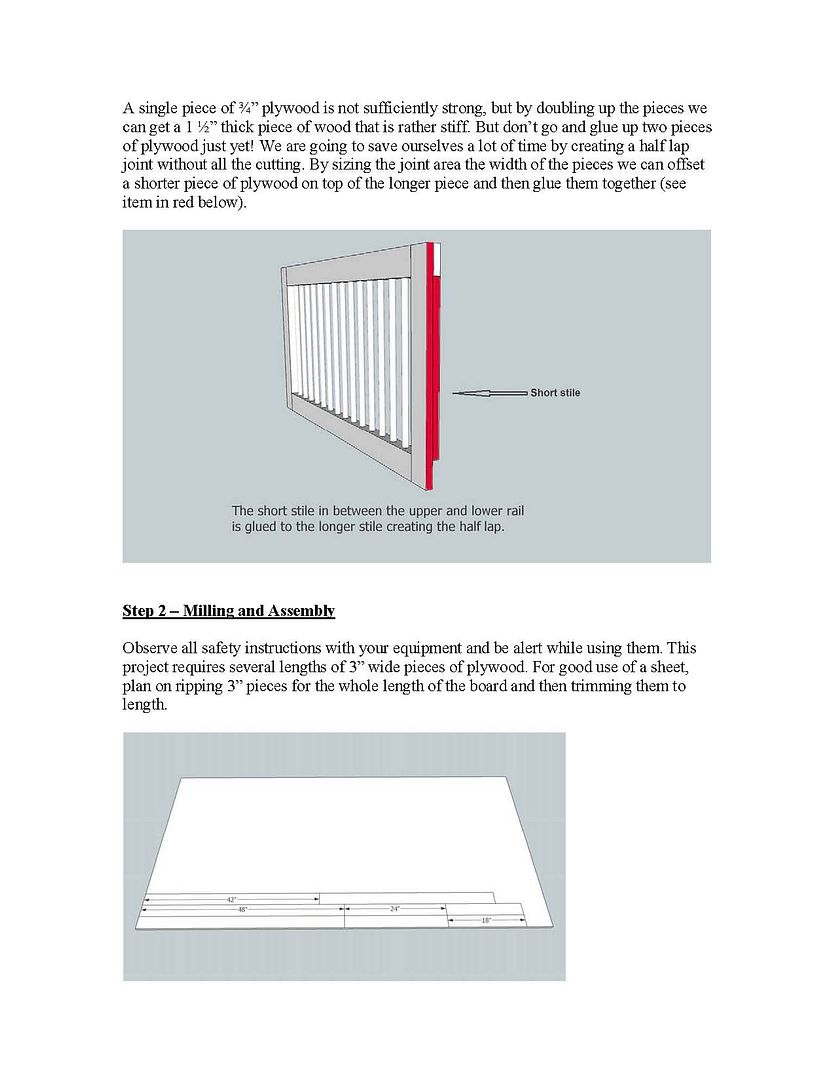

I did this for both my boys. Maybe this will give you some ideas. I never completed the article as it was turned down by one of the mags. Of interest to you would be the actual bed rails which are just plywood with some solid wood topping it.






chopnhack is offline
post #8 of 8 Old 08-28-2013, 01:16 AM
Senior Member

Brian T.'s Avatar

Join Date: Dec 2012
Location: McBride, BC
Posts: 2,647
View Brian T.'s Photo Album My Photos
I have a really nice rocking cradle, birch with a dark stain. Both my D1 and D2 slept in it.
I've been hanging onto that sucker for 35 years.
Now, it appears(?) that I will be a Grandpa, likely the end of October or so.
While I'm excited about that, I need to know how to refit that cradle for twins.
Yeah, my SIL shot off both barrels at once.
Brian T. is offline
