Turning plywood

I'm thinking of attempting a type of segmented turn.

I have a bunch of 3/4" Bamboo plywood scraps that I'm considering gluing up to make 2" - 4" deep bowls.

I'm sure one of you turning masters have spun plywood before. No?
What should I be aware of with all the changes in grain direction?

Bad idea?

Learning more about tools everyday
tcleve4911 is offline
Sponsored Links
Advertisement

post #2 of 11 Old 06-29-2011, 08:27 AM
Sydney, Australia

Join Date: Mar 2008
Posts: 207
View hughie's Photo Album My Photos
I have turned up a plywood cookie jar. It turns ok tends to be dusty and it comes out in small bits not really chips.
With bamboo ply wood it will be hard and play havoc on your cutting edges, as most bamboo has silica in it. I would rough out with some sort of tungsten tipped tool and finish with your regular gouge.

hughie
_______________________________________
hughie is offline
The Following User Says Thank You to hughie For This Useful Post:
tcleve4911 (06-29-2011)
post #3 of 11 Old 06-29-2011, 09:47 AM
Senior Member

Glidden's Avatar

Join Date: Dec 2010
Location: Topeka, KS
Posts: 249
View Glidden's Photo Album My Photos
As long as all the laminates in the plywood are glued together tightly, which on bamboo I would think they should be, then you should be fine. I've done a few small things with BC plywood for jam chucks and such and find that since it's not glued together quite as tight that you get some chips and tearout pretty easily.

I want to die quietly in my sleep like my grandfather, not screaming in terror like the passengers of his car.
Glidden is offline
Sponsored Links
Advertisement

post #4 of 11 Old 06-29-2011, 10:39 AM
Senior Member

Join Date: Sep 2007
Location: Baxter, Tennessee
Posts: 3,257
View john lucas's Photo Album My Photos
Plywood is not a problem although it tends to dull your tools quickly. bamboo plywood or at least Bamboo flooring is a problem. It has some sort of coating on it that doesn't bond well to glue. Sand both side thoroughly before you glue it or it won't hold. You have to sand or plane off this finish to get the glue to hold. after that it turns nicely. I used epoxy to glue mine up. I don't know how well yellow glue will work with it.
john lucas is offline
post #5 of 11 Old 06-30-2011, 06:27 AM
Senior Member

don716's Avatar

Join Date: Feb 2008
Location: North Georgia (USA)
Posts: 623
View don716's Photo Album My Photos
Any pics of a plywood turning???? I've never tried one of those.
don716 is offline
post #6 of 11 Old 06-30-2011, 08:18 AM
Sydney, Australia

Join Date: Mar 2008
Posts: 207
View hughie's Photo Album My Photos
Cookie Jar

Here go, construction plywood beam 2" thick glued up with PVA glues, with laminated Pine lid. 9"dia and 7" high finish with a friction polish.
Attached Thumbnails
Click image for larger version

Name:	DSC00335.jpg
Views:	1116
Size:	95.9 KB
ID:	26016

Click image for larger version

Name:	DSC00336.jpg
Views:	489
Size:	84.0 KB
ID:	26017


hughie
_______________________________________
hughie is offline
post #7 of 11 Old 06-30-2011, 08:21 AM
Senior Member

Join Date: Jun 2011
Location: Otautahi , Te WahiPounamu ( Christchurch , New Zealand)
Posts: 1,486
View Manuka Jock's Photo Album My Photos
This site has one that was up for auction .


http://www.liveauctioneers.com/item/5739979
Manuka Jock is offline
post #8 of 11 Old 06-30-2011, 08:50 AM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
Thanks for the responses, folks.
It's good to see that someone else has tried this with success before I waste my time experimenting.

I will heed the advice of Mr Lucas by sanding the pieces before glue up.

I've used bamboo ply for standard applications like table tops and trim and the glued up pieces milled beautifully, but I understand that it all changes when you start spinning stuff.

I posted a few pics of my standard applications using bamboo plywood

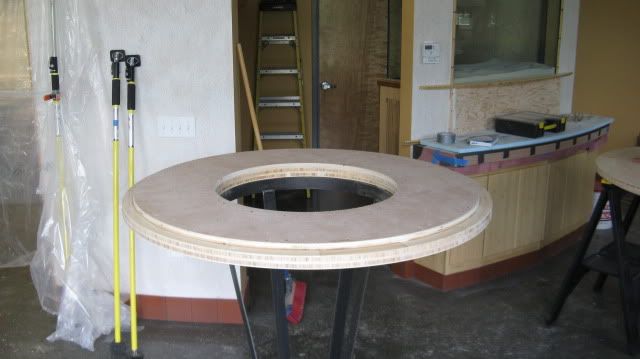

A round, segmented table with a planter in the middle of it.

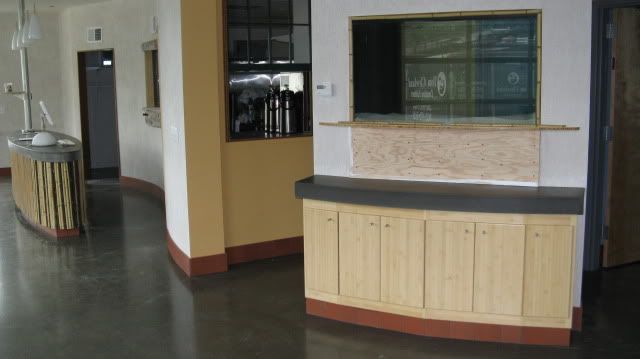

A fish tank/ coffee center cabinet with plywood doors



Tables and trim



Any piece of wood you see is Bamboo plywood


Learning more about tools everyday
tcleve4911 is offline
post #9 of 11 Old 06-30-2011, 09:13 AM
Senior Member

Join Date: Sep 2007
Location: Baxter, Tennessee
Posts: 3,257
View john lucas's Photo Album My Photos
Regular Bamboo plywood may not have the glue up problems. I was gluing together layers of bamboo flooring. It has a coating on the top surface that has to be removed. The bottom surface is not flat so it has to be flattened. I've never actually seen Bamboo plywood. Might be fun to play with.
john lucas is offline
post #10 of 11 Old 06-30-2011, 09:53 PM
Senior Member

firehawkmph's Avatar

Join Date: Apr 2008
Location: Near Cleveland, Ohio
Posts: 4,982
View firehawkmph's Photo Album My Photos
Quote:
Originally Posted by john lucas View Post
Regular Bamboo plywood may not have the glue up problems. I was gluing together layers of bamboo flooring. It has a coating on the top surface that has to be removed. The bottom surface is not flat so it has to be flattened. I've never actually seen Bamboo plywood. Might be fun to play with.
Any of the prefinished flooring with the heavy duty finishes, don't run them through your planer until you sand the top side till the finish is gone. Belt sander works fine. I ran some pieces through my planer without doing the sanding and it ruined a set of blades pretty quick.
Mike Hawkins
firehawkmph is offline
post #11 of 11 Old 06-30-2011, 10:06 PM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
The 3/4" bamboo plywood costs $325 / 4 x 8 sheet.

It doesn't have a finish on it, but it's pretty smooth so I will hit it with some 100 grit with the palm sander just to make sure my Titebond II adheres okay.

I usually use Titebond III, but it dries brown so I think the yellow TB II will look better on the pale plywood.

Wish me luck.......

Learning more about tools everyday
tcleve4911 is offline
