Sharpening the tools

On a Delta New yankee workshop sharpening station.
I can do the standard Wolverine style jig, but Im not sure if a hollow grind would be better then flat.


I do not plan on using the wet stone for the lathe tools, so the other side can do a flat grind with the tool rest attached to it.
The set-up for this thing is an absolute nightmare but once it is set up It gives a very very clean grind!

has anyone made any jigs for a setup like this? or does anyone have any ideas? It is a love hate thing with this sharpening center!

Anybody can become a woodworker, but only a Craftsmen can hide his mistakes!
slicksqueegie is offline
Sponsored Links
Advertisement

post #2 of 12 Old 04-24-2011, 01:36 PM
Senior Member

Join Date: Jan 2011
Location: Jacksonville, NC
Posts: 517
View wildwood's Photo Album My Photos
That dry grinding wheel on side looks small. Am no expert but would not try to sharpen turning tools on a wheel five inches or less.

Recommend you bit the bullet and find a 6 or 8 inch dry grinder locally. I have been using a 6 inch Sears grinder for years and do replace wheels when they hit the 5 inches. I would like a grinder with 8”x1” wheel, and 3/4 hp but in no hurry to get one.
wildwood is offline
post #3 of 12 Old 04-24-2011, 05:05 PM Thread Starter
Senior Member

slicksqueegie's Avatar

Join Date: Feb 2011
Location: Warren, MI
Posts: 572
View slicksqueegie's Photo Album My Photos
this is what I came up with,
I made 2 jigs one for the 1" skew and one for the roughing gouge.

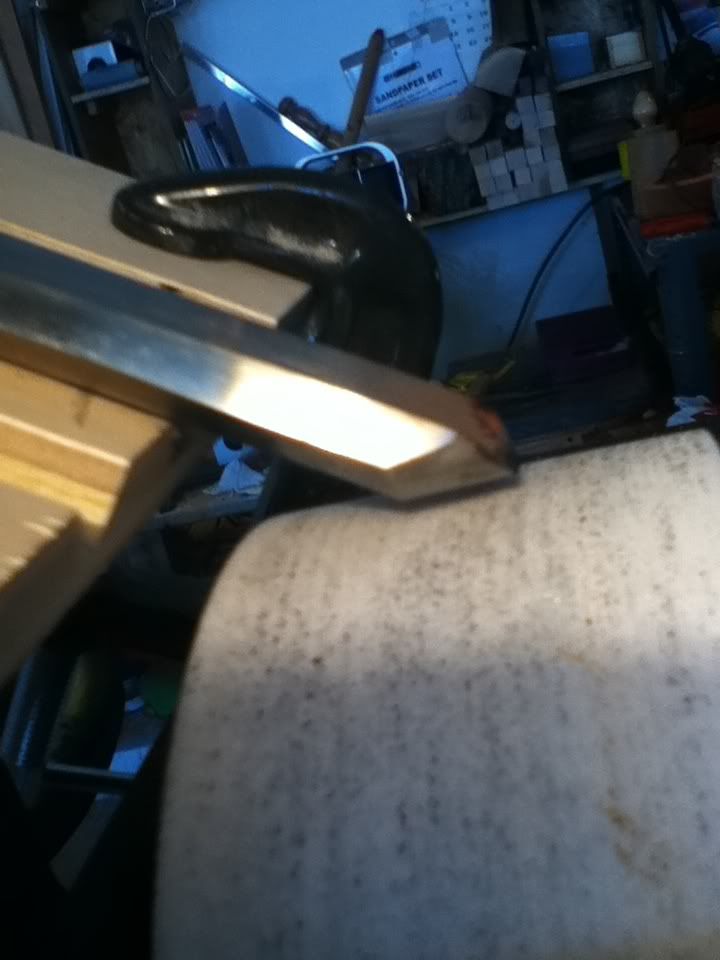

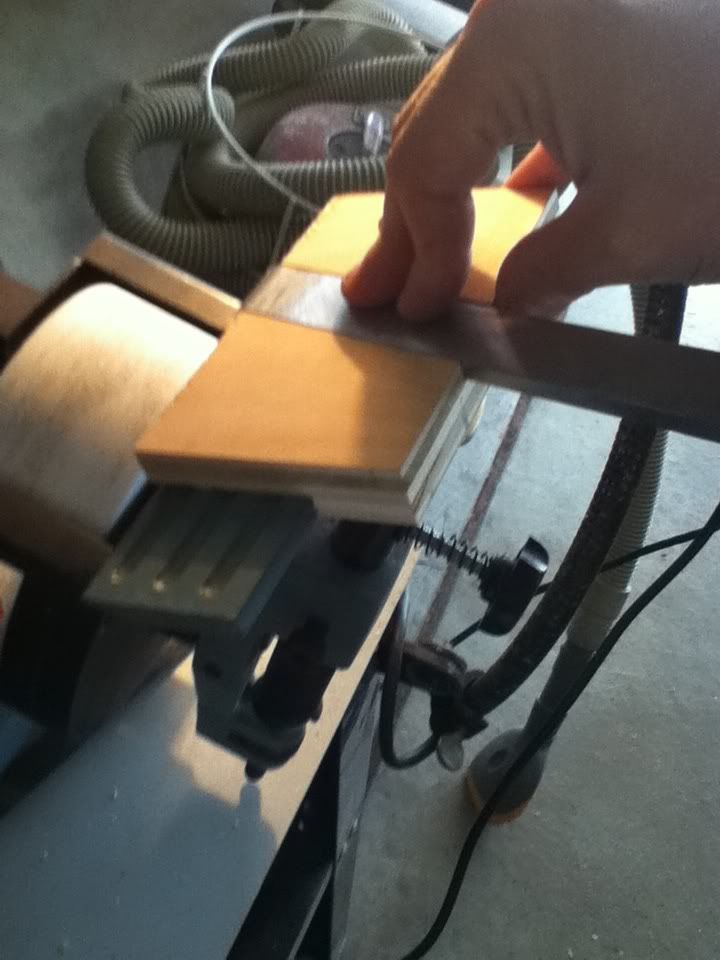

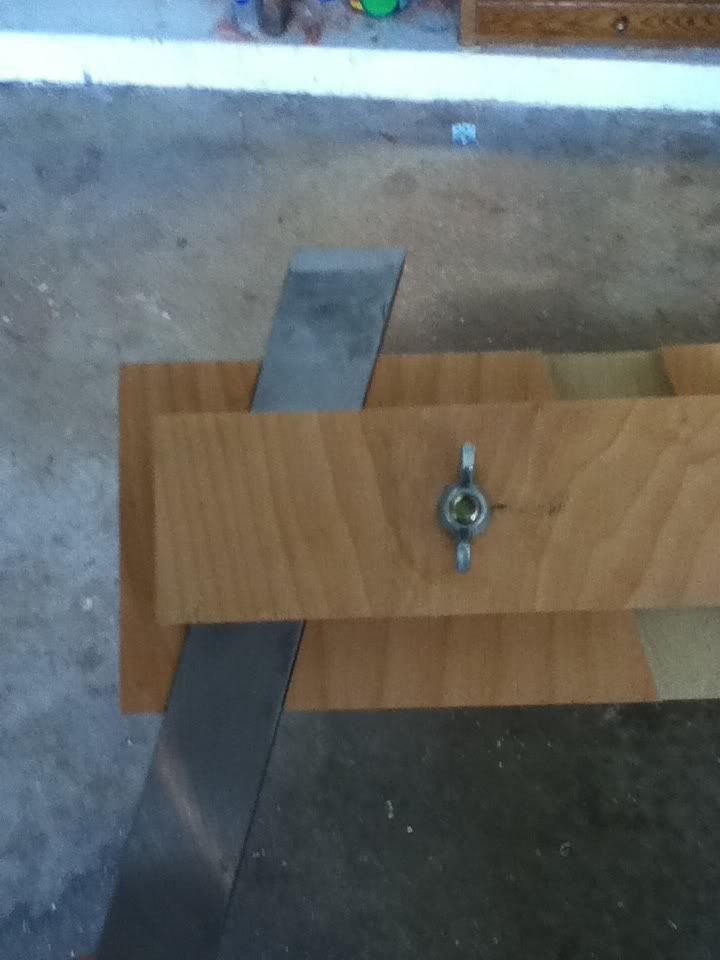

here is the skew chisel jig

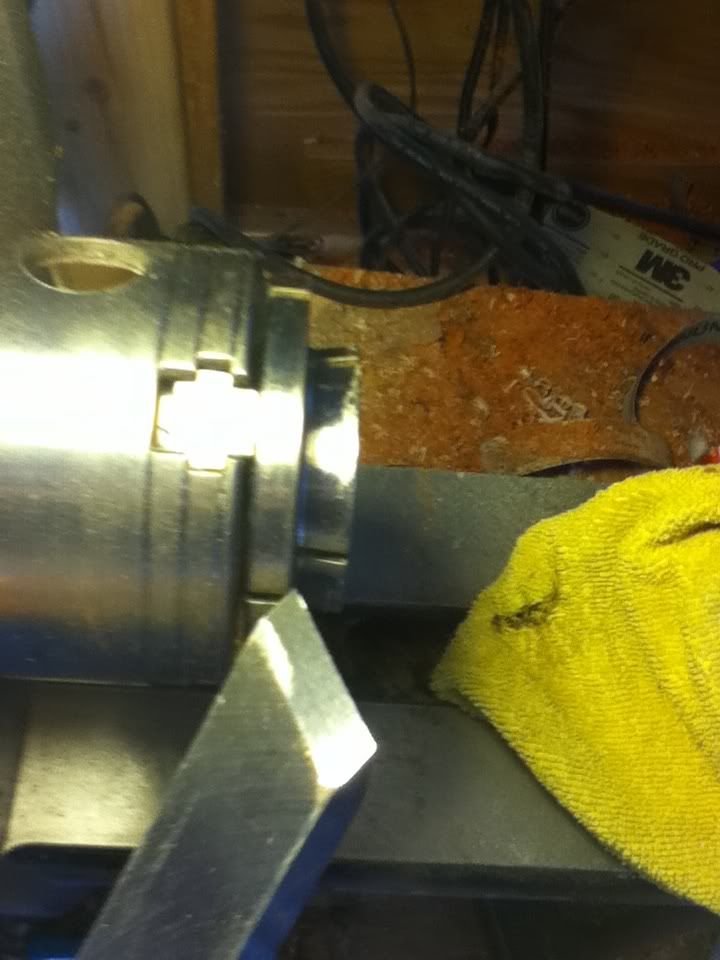

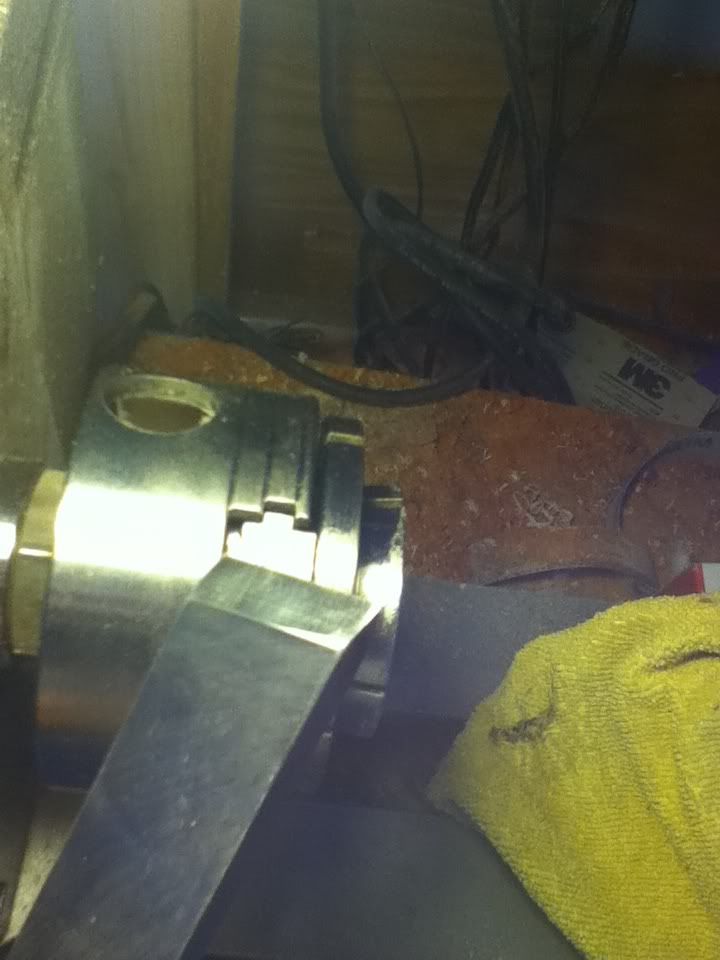

and this is the outcome


I'm pleased with this jig, but the gouge jig needs improvement or re-design.

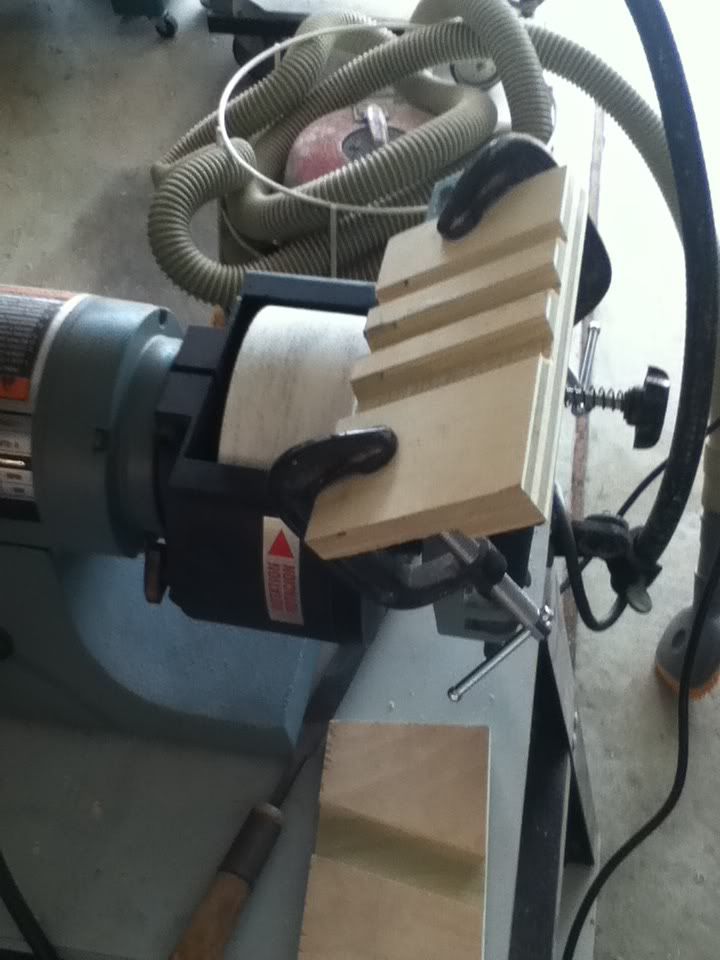

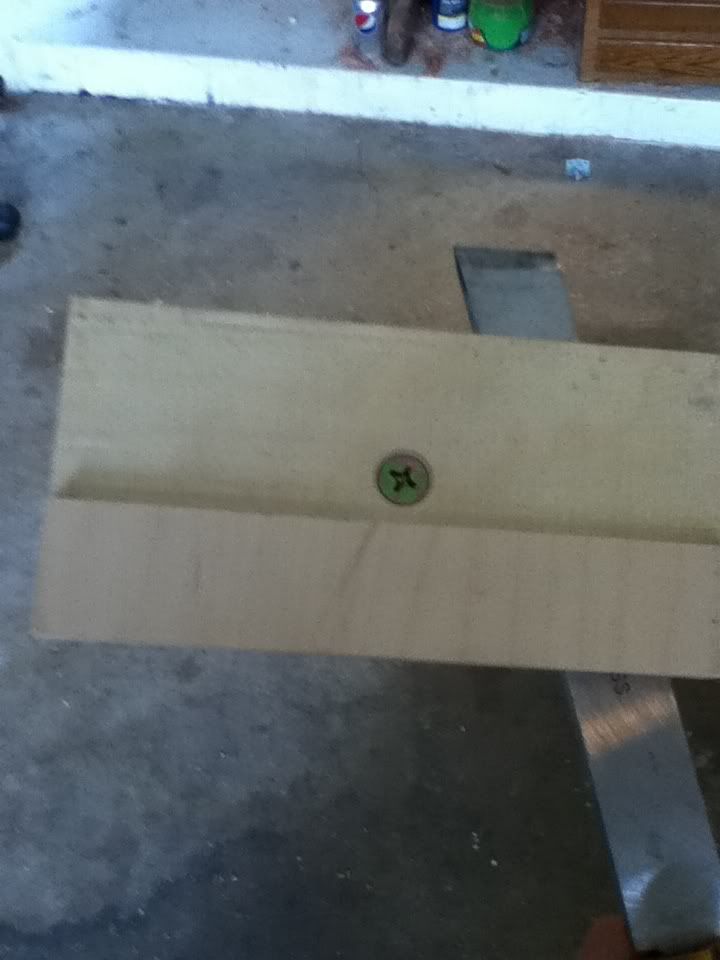

here it is

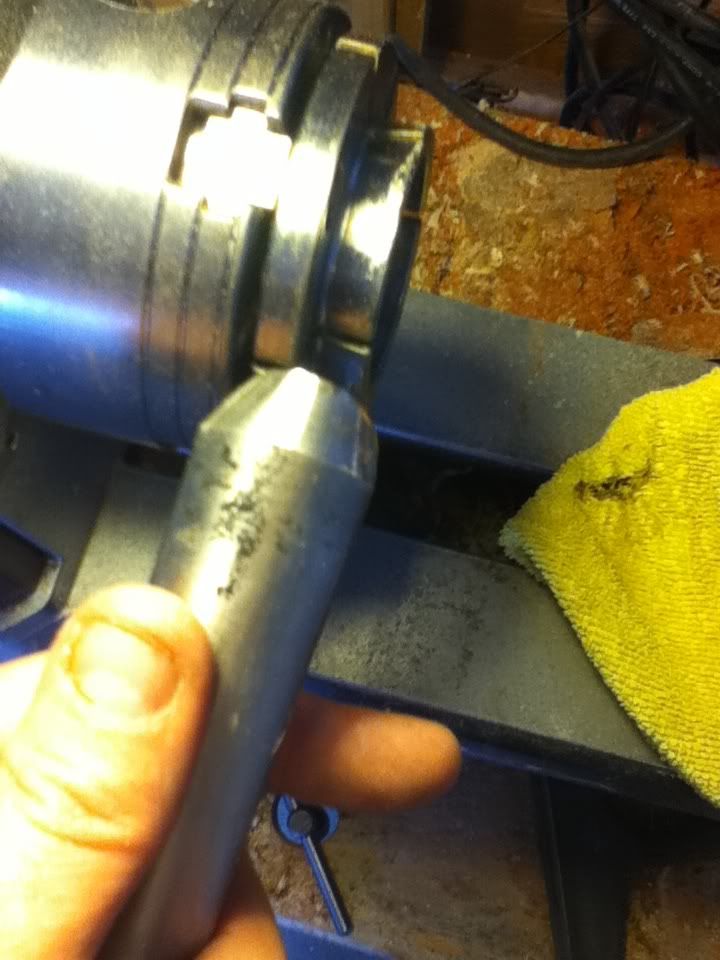

and the outcome

I suppose it works but there has to be a better way.

Anybody can become a woodworker, but only a Craftsmen can hide his mistakes!
slicksqueegie is offline
Sponsored Links
Advertisement

post #4 of 12 Old 04-24-2011, 06:43 PM
Senior Member

sawdustfactory's Avatar

Join Date: Jan 2011
Location: North Bend, WA
Posts: 4,801
View sawdustfactory's Photo Album My Photos
Break down and buy a slow speed 8" grinder, get some Norton wheels and a Wolverine varigrind jig...you won't regret spending the money when you see how easy it becomes to sharpen your tools consistently every time.

That bowl was perfect right up until that last cut...
sawdustfactory is offline
post #5 of 12 Old 04-24-2011, 11:13 PM
Senior Member

Join Date: Sep 2007
Location: Baxter, Tennessee
Posts: 3,257
View john lucas's Photo Album My Photos
Your jig will work but the wheel is on the small side and will get smaller as it wears. I've used a lot of sharpening systems over the years and think the larger grinders are hard to beat.
Personally I would sharpen the skew at a sharper angle. The angle you have now will work but will require more pressure to cut and when turning beads you will have to move the handle further to stay on the bevel. I use 35 degrees, bevel to bevel. That seems to be a good compromise between 25 which some pro's recommend but seems catchy to me, and 45 or more that many skews come with.
john lucas is offline
post #6 of 12 Old 04-25-2011, 09:45 AM
djg
Senior Something

Join Date: Dec 2009
Posts: 1,019
View djg's Photo Album My Photos
Quote:
Originally Posted by wildwood View Post
That dry grinding wheel on side looks small. Am no expert but would not try to sharpen turning tools on a wheel five inches or less.

Recommend you bit the bullet and find a 6 or 8 inch dry grinder locally. I have been using a 6 inch Sears grinder for years and do replace wheels when they hit the 5 inches. I would like a grinder with 8x1 wheel, and 3/4 hp but in no hurry to get one.
I'm in the same boat; I only have a 5" dry wheel. Has anyone ever used one of those threaded arbor extensions that clamp onto the motor shaft of an ordinary motor with Allen screws? Or would there be too much run-out of the shaft then?
djg is offline
post #7 of 12 Old 04-25-2011, 10:11 AM Thread Starter
Senior Member

slicksqueegie's Avatar

Join Date: Feb 2011
Location: Warren, MI
Posts: 572
View slicksqueegie's Photo Album My Photos
So basically I'm back to hating this thing! Garbage sharpener!

I do have an 8"bench grinder, maybe break down and pick up new stones for it! It just really sucks having this expensive sharpener and not wanting to use it.

Anybody can become a woodworker, but only a Craftsmen can hide his mistakes!
slicksqueegie is offline
post #8 of 12 Old 04-25-2011, 10:44 AM
djg
Senior Something

Join Date: Dec 2009
Posts: 1,019
View djg's Photo Album My Photos
Quote:
Originally Posted by slicksqueegie View Post
So basically I'm back to hating this thing! Garbage sharpener!
Ditto for me too. But I still can use the wet wheel for skews and scrapers(?).
djg is offline
post #9 of 12 Old 04-30-2011, 06:15 AM
Junior Member

Join Date: Apr 2011
Posts: 11
View alexfleming9's Photo Album My Photos
Quote:
Originally Posted by slicksqueegie View Post
I do have an 8"bench grinder, maybe break down and pick up new stones for it! It just really sucks having this expensive sharpener and not wanting to use it.

I still also using some very costly sharpeners of my tools. i am using a 8 inch grinder and find it faultless. It working so nice for sharpening my tools.

Check for Home and Gardening pergola plans or various plans for pergola.
alexfleming9 is offline
post #10 of 12 Old 04-30-2011, 03:22 PM
johnep

Join Date: Apr 2007
Location: East Anglia UK
Posts: 1,876
View johnep's Photo Album My Photos
I have an extension on my grinder which allows me to attach a buffing/polishing wheel or wire brush. No problem.
johnep
johnep is offline
post #11 of 12 Old 04-30-2011, 07:15 PM
Senior Member

Join Date: Aug 2010
Location: North Carolina
Posts: 1,021
View NCPaladin's Photo Album My Photos
Quote:
Originally Posted by slicksqueegie View Post
I do have an 8"bench grinder, maybe break down and pick up new stones for it!\
If your tools are HSS you can continue to use your present wheels. You can keep a small cup of oil handy to quench if you feel it is necessary. At the worst I would buy ONE finishing wheel and leave a gray one on for rough work (and sharpening the mower blade, etc). You can go through a friable wheel quickly reshaping tools.
This is just my frugal opinion.
Mike
