Longworth chuck

Has anyone here built a Longworth chuck?
I see a lot of how-to's but wonder about the success rate.
$140 to buy a cnc one already made but I have scraps of baltic I'd love to use.
Thanks in advance, guys
Tommy

Learning more about tools everyday
tcleve4911 is offline
Sponsored Links
Advertisement

post #2 of 12 Old 08-27-2011, 11:48 AM
OLD DUDE AT WORK

H. A. S.'s Avatar

Join Date: Sep 2010
Location: IN
Posts: 1,460
View H. A. S.'s Photo Album My Photos
Never built a Longworth, I use Cole jaws instead. Building a Longworth looks pretty straightforward:



Harrison, at your service!
H. A. S. is offline
post #3 of 12 Old 08-27-2011, 01:11 PM
Senior Member

Join Date: Jan 2008
Location: Burbs of STL, Mo
Posts: 121
View Bill Bolen's Photo Album My Photos
I've made quite a few and after the first it is a fairly quick process. Kept one for myself and use it fairly regularly. I must admit that vacuum chucking has proven itself to be a faster means. (I use the shop vac powered chuck) I also have and use a small set of Nova Cole jaws. The Longworth offers much faster mounting versus the cole jaws (no screws to remove and relocate) although you can't crank the jaws as tightly as you can with the cole jaws. An 8 jaw chuck for larger diameter and a 6 jaw for the 10" size. For me all three methods demand the tailstock be in use for as long as you can.
Attached Thumbnails
Click image for larger version

Name:	10 longworth frt.jpg
Views:	1396
Size:	66.1 KB
ID:	28126

Bill Bolen is offline
The Following User Says Thank You to Bill Bolen For This Useful Post:
tcleve4911 (08-28-2011)
Sponsored Links
Advertisement

post #4 of 12 Old 08-27-2011, 03:01 PM
Senior Member

Join Date: Jul 2008
Location: UP of Michigan
Posts: 1,048
View Bob Willing's Photo Album My Photos
Here are some instructions http://www.woodcentral.com/cgi-bin/r...cles_485.shtml I might try one of these!
Bob Willing is offline
The Following 2 Users Say Thank You to Bob Willing For This Useful Post:
Biscobob (08-28-2011), tcleve4911 (08-28-2011)
post #5 of 12 Old 08-28-2011, 12:07 AM
Sydney, Australia

Join Date: Mar 2008
Posts: 196
View hughie's Photo Album My Photos
Fairly easy to make, although there are a few tricks is your going to have more than 4 jaws.

I built this one out of Poly carbonate. Backing plate is 3/8th" front is 1/4" 24" in dia.

Cole Jaws have their place but for larger diameters you cant beat a Longworth chuck.
Attached Thumbnails
Click image for larger version

Name:	DSC00897.jpg
Views:	2446
Size:	97.2 KB
ID:	28146


hughie
_______________________________________

Last edited by hughie; 09-04-2011 at 03:18 AM.
hughie is offline
post #6 of 12 Old 08-28-2011, 08:35 AM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
Quote:
Originally Posted by Bill Bolen View Post
I've made quite a few and after the first it is a fairly quick process. Kept one for myself and use it fairly regularly. I must admit that vacuum chucking has proven itself to be a faster means. (I use the shop vac powered chuck) I also have and use a small set of Nova Cole jaws. The Longworth offers much faster mounting versus the cole jaws (no screws to remove and relocate) although you can't crank the jaws as tightly as you can with the cole jaws. An 8 jaw chuck for larger diameter and a 6 jaw for the 10" size. For me all three methods demand the tailstock be in use for as long as you can.
Those look like cane bottoms?
Do those work well?
Any tips on the hardware or the thicknesses of the two pieces of plywood?

Thanks everyone for your replies.

Learning more about tools everyday
tcleve4911 is offline
post #7 of 12 Old 08-28-2011, 02:14 PM
Senior Member

Join Date: Jan 2008
Location: Burbs of STL, Mo
Posts: 121
View Bill Bolen's Photo Album My Photos
Quote:
Originally Posted by tcleve4911 View Post
Those look like cane bottoms?
Do those work well?
Any tips on the hardware or the thicknesses of the two pieces of plywood?

Thanks everyone for your replies.
The tips are from Home depot. They are table or chair leg tips. 5/8" size, I also have a set in 3/4" size, My two plates are 3/4" birch ply for the main disc and 1/4" luan for the front moveable plate. All the strength needs to be with the main back plate, The front one just relocates the jaws hence the thinner ply. I also originally used Woodcenterals original article for the first build.
Bill Bolen is offline
post #8 of 12 Old 08-28-2011, 02:23 PM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
Thanks, Bill
Good info on the back plate strength.

I'm going to make a 12" chuck
I plan on mounting a 3" faceplate to the back

I'm thinking of using 1/2 baltic for both pieces just 'cause I have them in the shop. See any issues with that choice?

I ordered a set of (8) buttons and bolts from Woodline. By the time I went to HD and messed around, I decided to use what the company is selling and just make my own disks.

This is fun.........

Learning more about tools everyday
tcleve4911 is offline
post #9 of 12 Old 08-28-2011, 02:59 PM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
My next question is that I see different arc patterns.





Especially this one..



so....what's the difference besides the number of knobs?

Learning more about tools everyday
tcleve4911 is offline
post #10 of 12 Old 08-28-2011, 06:36 PM
Senior Member

Join Date: Jan 2008
Location: Burbs of STL, Mo
Posts: 121
View Bill Bolen's Photo Album My Photos
Your bottom picture is of the backside of the chuck while the others are of the front. Hence the arc's are reversed.
As for the thickness of the material you are going to use you SHOULD be OK although all I have ever used is 3/4" for the back. I would think the 1/2 will be ok because the one Hughie posted is thinner than 3/4 and he has had no troubles.
...Bill...

As a side note: the direction of the arc's is supposed to make a difference. If routed as pictured the chuck will self tighten the jaws when turned on if the jaws are loose. The other direction is supposed to loosen them.

You can also buy the Nova cole jaw buttons at WC.

Last edited by Bill Bolen; 08-28-2011 at 06:41 PM.
Bill Bolen is offline
post #11 of 12 Old 09-02-2011, 07:47 AM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos

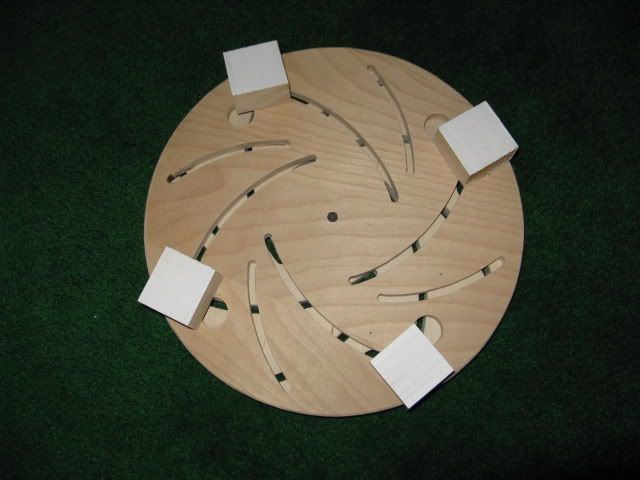

I used the temporary wood blocks just to see if this thing worked at all.


It works pretty slick.


I'm waiting for the 8 buttons, bolts and wingnuts that I ordered from Woodline.

Gonna chuck it up and I'll let you know how it works.

Thanks for everyone's input

Learning more about tools everyday
tcleve4911 is offline
post #12 of 12 Old 09-02-2011, 10:01 PM
Senior Member

Join Date: Jan 2008
Location: Burbs of STL, Mo
Posts: 121
View Bill Bolen's Photo Album My Photos
VERY nice job. I think you will get a bunch of use from your new Longworth!
Bill Bolen is offline
