lighting for a lathe work area. - Woodworking Talk - Woodworkers Forum

Thread Tools Display Modes
post #1 of 14 Old 03-15-2012, 06:30 PM Thread Starter
Member

packer34's Avatar

Join Date: Dec 2010
Posts: 46
View packer34's Photo Album My Photos
lighting for a lathe work area.

Trying to find some decent light for around my lathe. I have fluorescent lights hanging from the ceiling but it's not enough around my lathe. Looking for something to hang off my wall. Any suggestions?

Thx
packer34 is offline
Sponsored Links
Advertisement

post #2 of 14 Old 03-15-2012, 06:33 PM
No Longer Here, BY CHOICE

Join Date: Nov 2010
Posts: 2,442
View BassBlaster's Photo Album My Photos
I have flourescents above the bench then a desk lamp on an arm that can be moved around any where attached to the bench behind my lathe.

RRBrown, knottscott and many others were banned, they didn't just leave. They were banned for standing up to the new owners that are destroying this site. Come join us all at woodworking chat, the best new woodworking site on the net!!
BassBlaster is offline
post #3 of 14 Old 03-15-2012, 07:45 PM
Senior Member

sawdustfactory's Avatar

Join Date: Jan 2011
Location: North Bend, WA
Posts: 4,801
View sawdustfactory's Photo Album My Photos
I use a magnetic based flexible shaft lamp that sits on the headstock of the lathe. Bought it at Rockler. Works great.

That bowl was perfect right up until that last cut...
sawdustfactory is offline
Sponsored Links
Advertisement

post #4 of 14 Old 03-15-2012, 08:52 PM
Senior Member

Join Date: Aug 2010
Location: North Carolina
Posts: 1,021
View NCPaladin's Photo Album My Photos
I purchased two of these and mounted to the wall. They have standard light/lamp threads. Two gives a 36" gooseneck and I mounted a small diameter outdoor spot light from HD.

http://www.ebay.com/itm/Flex-Arm-for...item3cc3805359
Attached Thumbnails
Click image for larger version

Name:	Lathe Light 002.jpg
Views:	659
Size:	64.5 KB
ID:	40944


They who can give up essential liberty to obtain a little temporary safety, deserve neither liberty nor safety. Benjamin Franklin
NCPaladin is offline
post #5 of 14 Old 03-15-2012, 11:57 PM
Senior Member

Join Date: Jan 2011
Location: McKinney, Tx
Posts: 763
View Bonanza35's Photo Album My Photos
Quote:
Originally Posted by NCPaladin
I purchased two of these and mounted to the wall. They have standard light/lamp threads. Two gives a 36" gooseneck and I mounted a small diameter outdoor spot light from HD.

http://www.ebay.com/itm/Flex-Arm-for...item3cc3805359
That looks really slick. Is it strong enough to support itself and the light or do you have it braced toward the end?
Bonanza35 is offline
post #6 of 14 Old 03-16-2012, 09:09 AM
Senior Member

Join Date: Sep 2007
Location: Baxter, Tennessee
Posts: 3,257
View john lucas's Photo Album My Photos
I'm a big fan of the Moffet lights. I don't remember who sells them now, possible Craft Supplies or Woodcraft. I have 3, 2 mounted on the lathe at all times and the 3rd one travels with my mini lathe. I put the 45watt CFL's in them although I prefer the 100 incandescent. I just thought I'd try the CFL's because they aren't as hot. I don't like the warm up time but I'm getting used to it.
What I do have to do is rig up a better way to hold both the lights and my Dust collector.
john lucas is offline
post #7 of 14 Old 03-16-2012, 09:21 AM
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos

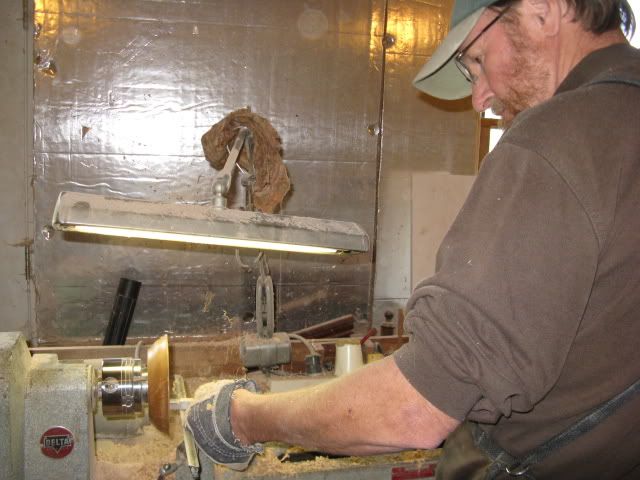

This is just a clamp-on fluorescent desk lamp....works great.




Learning more about tools everyday
tcleve4911 is offline
post #8 of 14 Old 03-16-2012, 09:51 AM
Senior Member

Join Date: Aug 2010
Location: North Carolina
Posts: 1,021
View NCPaladin's Photo Album My Photos
Quote:
Originally Posted by Bonanza35 View Post
That looks really slick. Is it strong enough to support itself and the light or do you have it braced toward the end?
Yes it will support a small light but that is what I wanted. The light is 100 watt outdoor accent spot, about $10 at HD. It may not support the big 6" diameter fixtures but this one is about 1.5" diameter. It provides plenty of light from 3 or 4 feet away (like while working on the inside of a bowl or enclosed form). For finish work I can bring it down parallel with the work to check for scratches or other flaws. For general turning I just use the normal overhead lights. Being mounted on the wall I can push it out of the way when not needed.

They who can give up essential liberty to obtain a little temporary safety, deserve neither liberty nor safety. Benjamin Franklin
NCPaladin is offline
post #9 of 14 Old 03-16-2012, 08:35 PM
Member

Join Date: Jul 2011
Location: beaverton michigan
Posts: 58
View fixer's Photo Album My Photos

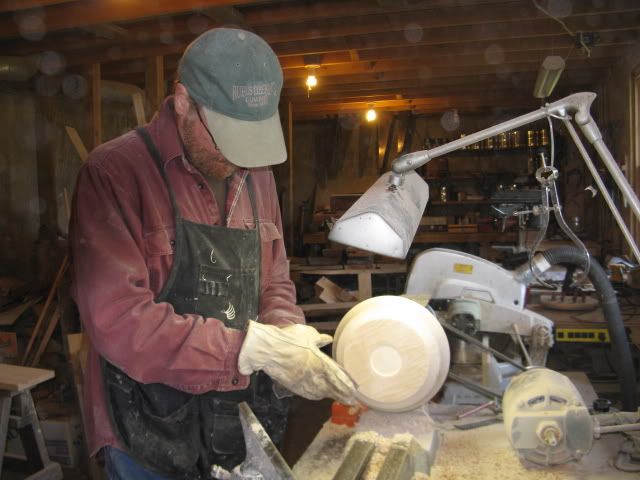

I've got 2 like this



plus 2 floresents 1 behind the lathe and 1 overhead
these 2 are mounted on the wall behind the lathe
fixer is offline
post #10 of 14 Old 03-16-2012, 10:45 PM
Senior Member

Join Date: Dec 2011
Location: Brillion, WI
Posts: 190
View pvechart's Photo Album My Photos
I read on another discussion board that the incandescent lights are better at showing scratches while sanding because they show the scratches shadow better than fluorescent lights. Right now I have just fluorescents but will try the incandescent lights.
pvechart is offline
post #11 of 14 Old 03-17-2012, 01:15 AM
Senior Member

Join Date: Jan 2011
Location: McKinney, Tx
Posts: 763
View Bonanza35's Photo Album My Photos
Quote:
Originally Posted by pvechart
I read on another discussion board that the incandescent lights are better at showing scratches while sanding because they show the scratches shadow better than fluorescent lights. Right now I have just fluorescents but will try the incandescent lights.
I just bought an led lamp and it throws a hard shadow too, just FYI.
Bonanza35 is offline
post #12 of 14 Old 03-17-2012, 10:30 AM
Senior Member

Join Date: Aug 2010
Location: North Carolina
Posts: 1,021
View NCPaladin's Photo Album My Photos
I like the one that Fixer shows also. I have one at my radial arm and one at my grinder table. Most come with a bracket to mount to the wall and the head will also swivel 360. I haven't checked but I am sure the light fixture is standard so it could be replaced will a small sealed unit (no dust collecting on a hot bulb).
Should be able to push it back against the wall or bring the arm down to spindle height for parallel light.

They who can give up essential liberty to obtain a little temporary safety, deserve neither liberty nor safety. Benjamin Franklin
NCPaladin is offline
post #13 of 14 Old 03-18-2012, 04:24 AM
Senior Member

Join Date: Jul 2010
Location: Auckland, New Zealand
Posts: 138
View MGP Roofing's Photo Album My Photos
I have a lamp similar to Fixer's one. My new shop will have a mix of incandescent and fluorescent lights, plus it has a 1.5 by 3m skylight, and plenty of windows, so I won't need much artificial light during the day. That will be a 300% improvement on my current setup which has 1 incandescent ceiling light, and the lamp by the lathe, and 1 tiny window. The sunny side of my current shop is the concrete fire wall between our garage and the neighbours' garage!
MGP Roofing is offline
post #14 of 14 Old 03-18-2012, 07:24 PM
dmh
Senior Member

dmh's Avatar

Join Date: Sep 2010
Location: Central Florida
Posts: 467
View dmh's Photo Album My Photos
I was at the woodworking show and at the Craft Supply USA booth they had a light mounted on a Tool Mule setup. I played with it a little bit and was surprised at how small and bright it was. My wife asked if they had any and they told her no, the lights themselves came from Ikea.

Looking at the Ikea site it is either this one or this one that they removed the base from and mounted it to the Tool Mule bracket.

Needless to say the next time I'm near an Ikea I will be picking up one or two.

Mark
only 84 more to go...
dmh is offline
