Ist Easywood turnings

Well I had my chance to try out my new toys.
I am very new to this and just trying to get things set up so I can turn a lot this fall and winter....man this is addictive and fun!!!

I know these are caveman compared to you guys, but I'm working on minimizing my sanding time and going inside a vessel.

I introduced these new tools to my system.

My new Easywood rougher & scraper and a nova chuck.

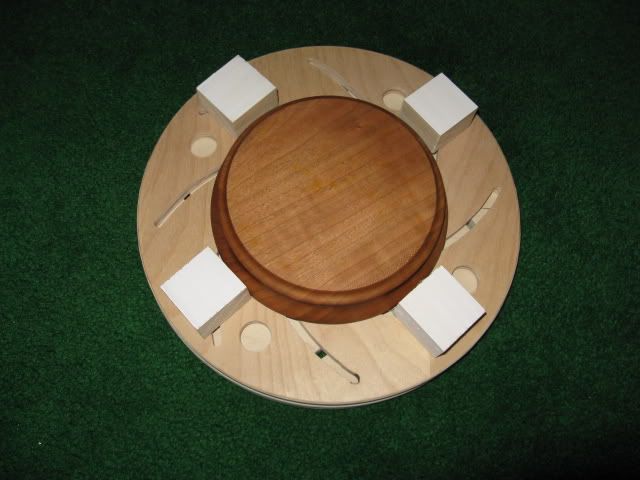

My homemade Longworth chuck



The blocks were temporary until I got my parts from Woodline.com.

I turned all three of these out in about three hours including unpacking and setting up.

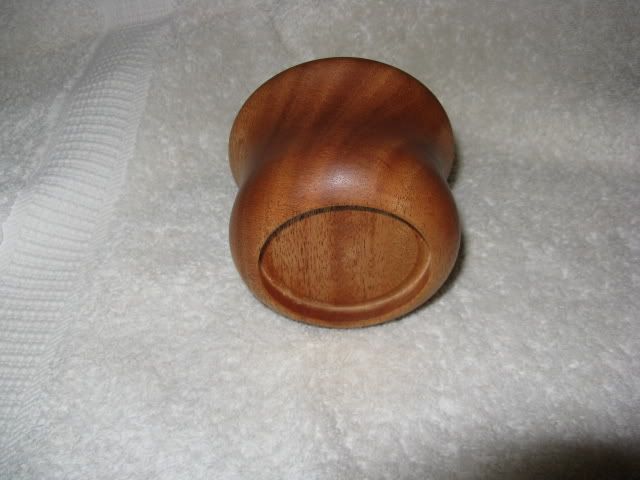

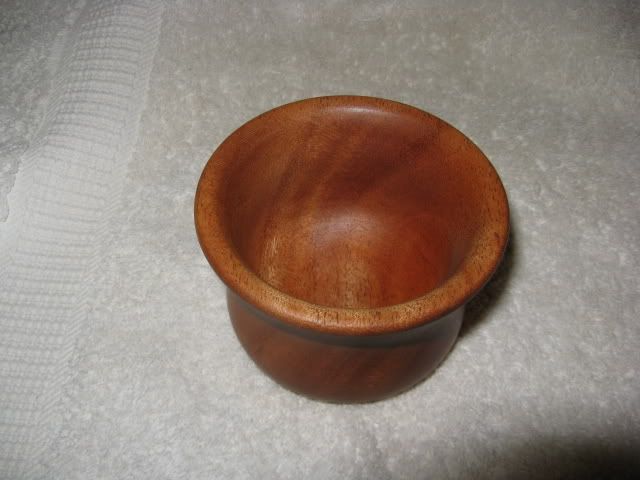

Mahogany from a Newel Post scrap

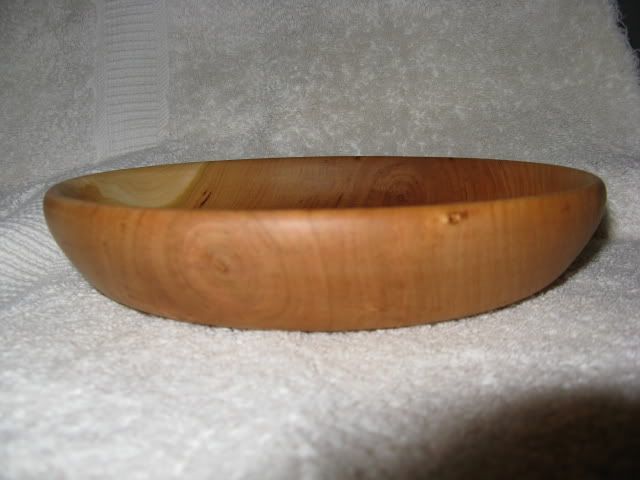

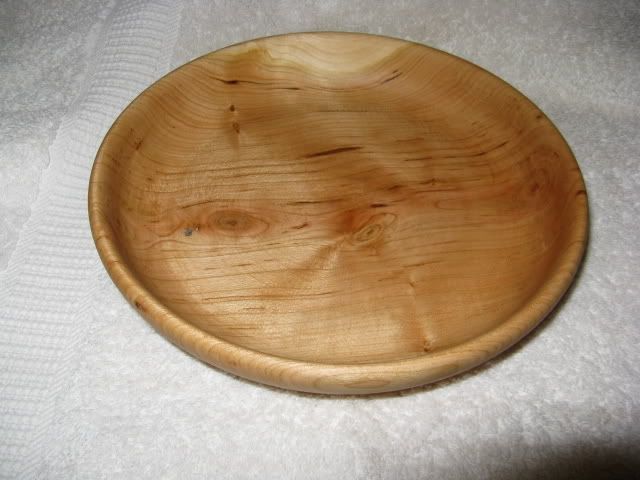

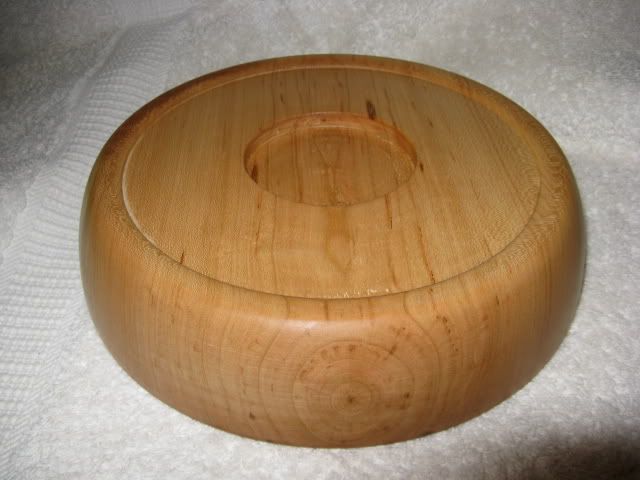

Black cherry air dried bowl







I need a lot of design and form refinement so I find myself really looking at the shape of bowls these days.

So any and all critique is welcome.

Thanks to all of you who have shared info on my prior posts about starting this addictive art.

Learning more about tools everyday
tcleve4911 is offline
Sponsored Links
Advertisement

post #2 of 17 Old 09-07-2011, 07:55 AM
sawdust manufacturer

txpaulie's Avatar

Join Date: Jul 2010
Location: SE Texas
Posts: 581
View txpaulie's Photo Album My Photos
Lookin' good!

The best piece of advice I received was, "turn 100 bowls".

I'm not there yet, but I can see a big improvement from #5 to # 50!

There's so much yet I'm itching to try...

'shrooms, for instance!

...and pens, and tool handles, and lamp bases, and...

p

...ever notice how "I'm sorry" and "I apologize" mean the same thing, unless you are at a funeral..?
txpaulie is offline
post #3 of 17 Old 09-07-2011, 09:21 AM
Splinter Cushion

Join Date: Feb 2009
Location: Huntsville, AL
Posts: 661
View b00kemdano's Photo Album My Photos
These look really good.

I'd like to see that cherry bowl in a couple days or weeks. With the pith right through the middle like that, I'd be surprised if it didn't warp or crack on you. How dry was it when you started? Did you dry it yourself, or buy a dried blank?
b00kemdano is offline
Sponsored Links
Advertisement

post #4 of 17 Old 09-07-2011, 09:34 AM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
These are blanks I made from a cherry tree I cut down 2 years ago, cut it into 2" slabs and dried it overhead in the garage.

These four bowls are turned from the same slab



I turned the darker ones a month ago and they have darkened just by sitting around and being used all the time.

Learning more about tools everyday
tcleve4911 is offline
post #5 of 17 Old 09-07-2011, 09:37 AM
Senior Member

sawdustfactory's Avatar

Join Date: Jan 2011
Location: North Bend, WA
Posts: 4,801
View sawdustfactory's Photo Album My Photos
When I was first learning to turn, one very experienced turner said something to me that really stuck. He felt that a bowl should have a nice smooth continuous curve both inside and out. Anything with straight(er) sides, he referrred to as a dog dish. The walls should be as close to uniform in thickness as possible. One way he had us practice this was to turn a small bowl and then take it to the bandsaw and cut it in half. Very hard to do when you're starting out as every piece feels like a masterpiece to you.

Several critiques of the cherry bowl: There are still visible tool marks. The chuck recess seems a little deep...you don't need that much for the chuck to hold. Decorate the bottom of your bowls, because everyone always turns them over to look at the bottom.

The little one looks great. Like TX said, turn 100 bowls. Keep turnin' and learnin'.

That bowl was perfect right up until that last cut...
sawdustfactory is offline
post #6 of 17 Old 09-07-2011, 10:04 AM
Senior Member

firehawkmph's Avatar

Join Date: Apr 2008
Location: Near Cleveland, Ohio
Posts: 5,023
View firehawkmph's Photo Album My Photos
TC,
You're off to a good start. Our first bowls all look pretty simular, straight sides, a bit thick, etc. These bowls work really good for task work. I have one on my dresser I put my change in, known as a 'pocket butler'. Keep working on the shapes. When you are forming the bottom side, concentrate on getting rid of the outside lower corner. This will help your bottom become more rounded. Take a bowl from the kitchen out to your shop with you to compare the shape and give you something to visualize. Once you get the shape down, work on getting a little thinner. If you plan on using the bowl, don't get it too thin. Turn a few thin ones (1/8"walls) for the heck of it, then you'll find a happy medium. All in all, good work, keep it up.
Mike Hawkins
firehawkmph is offline
post #7 of 17 Old 09-07-2011, 10:11 AM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
Thanks so much, Mike.
I really enjoyed this session and for the first time was able to relax my shoulder muscles and get more of a "feel" for the tool.

I like to be able to see some sort of form before I just start removing wood but was just playing with the new toys.

I like your idea of modeling a plate or a bowl from the cupboard.

I envy the shapes you create and as txpaulie said ....turn 100 bowls.....I only have 90 to go......

Learning more about tools everyday
tcleve4911 is offline
post #8 of 17 Old 09-07-2011, 12:31 PM
Senior Member

Join Date: Oct 2008
Location: North Carolina
Posts: 2,304
View TomC's Photo Album My Photos
How do you like the easy wood tools. I am looking at buying one. Did you get the full size or mid size?
Tom
TomC is offline
post #9 of 17 Old 09-07-2011, 01:16 PM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
I bought the two larger sizes
The rougher & the finisher

The round finisher was awesome. I could go inside the bowl and not worry about catching a edge.

The shavings were coming off in ribbons 3-4' long.

I absolutely love them

Learning more about tools everyday
tcleve4911 is offline
post #10 of 17 Old 09-07-2011, 01:22 PM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
Quote:
Originally Posted by sawdustfactory View Post
When I was first learning to turn, one very experienced turner said something to me that really stuck. He felt that a bowl should have a nice smooth continuous curve both inside and out. Anything with straight(er) sides, he referrred to as a dog dish. The walls should be as close to uniform in thickness as possible. One way he had us practice this was to turn a small bowl and then take it to the bandsaw and cut it in half. Very hard to do when you're starting out as every piece feels like a masterpiece to you.

Several critiques of the cherry bowl: There are still visible tool marks. The chuck recess seems a little deep...you don't need that much for the chuck to hold. Decorate the bottom of your bowls, because everyone always turns them over to look at the bottom.

The little one looks great. Like TX said, turn 100 bowls. Keep turnin' and learnin'.
Thanks so much for the critique.

Tool marks - Should I sand more or slow my cuts down? How do you minimize tool marks?

Recess - I wondered about that one but was scared of not having it deep enough.
How deep is recommended?
Is the same true of a tenon?

This is great being able to have artists like yourself share such valuable info for beginners like myself.

Learning more about tools everyday
tcleve4911 is offline
post #11 of 17 Old 09-07-2011, 02:39 PM
Senior Member

sawdustfactory's Avatar

Join Date: Jan 2011
Location: North Bend, WA
Posts: 4,801
View sawdustfactory's Photo Album My Photos
As for tool marks try taking lighter cuts first. As for the recess, if the inner portion is flat ( and it should be) and has a nice clean, square edge ( again it should) then there is a lot of surface area for the chuck to contact. I like my tenons a little long, but they should not bottom out in the chuck. Also check your chuck, some require a dovetail, some straight.

Looking great for your first ten, only 90 more to go. ;-)

That bowl was perfect right up until that last cut...
sawdustfactory is offline
post #12 of 17 Old 09-07-2011, 02:42 PM
Senior Member

sawdustfactory's Avatar

Join Date: Jan 2011
Location: North Bend, WA
Posts: 4,801
View sawdustfactory's Photo Album My Photos
One other thing about chucking with a recess. Once you have it mounted, give it a good twist to check it. Check it every so often as you turn. Oh, and stand out of the line of fire :-0

That bowl was perfect right up until that last cut...
sawdustfactory is offline
post #13 of 17 Old 09-07-2011, 05:09 PM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
Quote:
Originally Posted by sawdustfactory View Post
Also check your chuck, some require a dovetail, some straight.
Mine is a dovetail..... good? bad?

Learning more about tools everyday
tcleve4911 is offline
post #14 of 17 Old 09-07-2011, 06:08 PM
Yea i got wood

robert421960's Avatar

Join Date: Dec 2010
Location: Rockholds Ky
Posts: 3,016
View robert421960's Photo Album My Photos
a dovetail should give you better grip
i have plenty of trouble with tool marks still too so hopefully practice will make better not perfect lol
you sure look to be off to a good start to me
robert421960 is offline
post #15 of 17 Old 09-07-2011, 07:06 PM
Senior Member

sawdustfactory's Avatar

Join Date: Jan 2011
Location: North Bend, WA
Posts: 4,801
View sawdustfactory's Photo Album My Photos
dovetail or straight, you can argue for either...just need to know what shape tenon you need to cut

That bowl was perfect right up until that last cut...
sawdustfactory is offline
post #16 of 17 Old 09-07-2011, 07:24 PM
Senior Member

phinds's Avatar

Join Date: Mar 2009
Location: Central New York
Posts: 3,248
View phinds's Photo Album My Photos
really nice work

You can never have too much pepperoni on your pizza or own too many clamps.
www.hobbithouseinc.com/personal/woodpics/
phinds is offline
post #17 of 17 Old 09-08-2011, 12:40 PM
junior member

Join Date: Jun 2010
Location: Marietta ga.
Posts: 37
View ronjboucher's Photo Album My Photos
take it to next level

Quote:
Originally Posted by tcleve4911 View Post
Well I had my chance to try out my new toys.
I am very new to this and just trying to get things set up so I can turn a lot this fall and winter....man this is addictive and fun!!!

I know these are caveman compared to you guys, but I'm working on minimizing my sanding time and going inside a vessel.

I introduced these new tools to my system.

My new Easywood rougher & scraper and a nova chuck.



My homemade Longworth chuck



The blocks were temporary until I got my parts from Woodline.com.

I turned all three of these out in about three hours including unpacking and setting up.

Mahogany from a Newel Post scrap





Black cherry air dried bowl







I need a lot of design and form refinement so I find myself really looking at the shape of bowls these days.

So any and all critique is welcome.

Thanks to all of you who have shared info on my prior posts about starting this addictive art.
Looking at your turning projects, I can feel you enjoyment and pride of accomplishment, well done.

If I may

Turnoff, the bottoms(all), big ugly chuck holes.

1. Woodcraft sells a 1 in. 8 threads tap to make waste blocks. Good investment. Easy to make, I mass produce 12 or more at a time.

2. Either purchase a flat plate with pins/chuck comes as a kit, from Penn State or make jamb chucks, a great way to rework the bottom of your projects.

3. Voila ugly holes all gone. Ron Marietta Ga.
ronjboucher is offline
The Following User Says Thank You to ronjboucher For This Useful Post:
tcleve4911 (09-08-2011)
