How to finish the top of a Peppermill

I'm struggling to find a good way to finish the top section a Peppermill. I turn the top with a chuck then separate it but don't have a good way to sand. I've been using a pen mandrel but that doesn't work well since the Peppermill hole is bigger than the mandrel causing vibration.

I need some ideas.
gmcsmoke is offline
Sponsored Links
Advertisement

post #2 of 12 Old 04-06-2014, 03:59 PM
No Longer Here, BY CHOICE

Join Date: Nov 2010
Posts: 2,442
View BassBlaster's Photo Album My Photos
Do you have firehawk's tutorial? If not you can find it on the net.

Sand and finish your PM including the top before you part it all off. Then theres very little to sand and finish afterward.

RRBrown, knottscott and many others were banned, they didn't just leave. They were banned for standing up to the new owners that are destroying this site. Come join us all at woodworking chat, the best new woodworking site on the net!!
BassBlaster is offline
post #3 of 12 Old 04-06-2014, 04:40 PM
Senior Member

Dave Paine's Avatar

Join Date: May 2012
Location: Eastern PA
Posts: 7,222
View Dave Paine's Photo Album My Photos
A picture would help us know what the top looks like.

a) If the top has a tenon to fit into the main body, grip this in a scroll chuck. It may leave marks, but this part is rarely seen.

b) If the top has a hole for the shaft, typically 1/4in, mount on a 1/4in dia rod. I have a 1/4/in dia shaft for a pen mandrel. I mount in the #1 jaws of my scroll chuck and use plastic spacers on either side to give me access for sanding, or turning.
Dave Paine is offline
Sponsored Links
Advertisement

post #4 of 12 Old 04-06-2014, 07:30 PM
Turning Wood Into Art

DaveTTC's Avatar

Join Date: May 2012
Location: Jerilderie, New South Wales, Australia
Posts: 4,043
View DaveTTC's Photo Album My Photos
Alternatively

Try making your own timber MT to fit your lathe and put a large cone on the other end, this will fit your knob on it. Bring a live centre up to the small hoe and turn between centres.

It will be a friction drive.

On the large cone you can turn a small shoulder if you are worried about pressure splitting the knob. Keep the cone snug enough to keep the work central and the should small enough not to hinder sanding.

Dave

The Turning Cowboy

DaveTTC

The Turning Cowboy
Turning Wood into Art
DaveTTC is offline
post #5 of 12 Old 04-06-2014, 07:42 PM
Senior Member

Join Date: Oct 2008
Location: North Carolina
Posts: 2,304
View TomC's Photo Album My Photos
I turn a piece that will fit into the bottom end of the top( a friction chuck). You can run the tail stock up into the shaft hole for part of the final finish. I normal finish the top with a few shear scrapes with a spindle gouge followed by sanding.
Tom
TomC is offline
post #6 of 12 Old 04-06-2014, 08:55 PM
Senior Member

firehawkmph's Avatar

Join Date: Apr 2008
Location: Near Cleveland, Ohio
Posts: 5,031
View firehawkmph's Photo Album My Photos
Gmc,
If you would like, I'll send you my peppermill tutorial. It has pictures with an explanation for every step of the process, very easy to follow. Free for the asking. Just send me an email at [email protected]
And I'll reply back with it.
Mike Hawkins
firehawkmph is offline
post #7 of 12 Old 04-07-2014, 07:02 AM Thread Starter
Senior Member

Join Date: Feb 2011
Location: Saxonburg
Posts: 246
View gmcsmoke's Photo Album My Photos
Mike, I sent you an email for the tutorial, thanks. The pm top has a tenon but my chuck jaws are not small enough to grip it. I'll try the wooden cone for the top, I use a drive tenon on the bottom and that works pretty well.
gmcsmoke is offline
post #8 of 12 Old 04-07-2014, 07:26 AM
Turning Wood Into Art

DaveTTC's Avatar

Join Date: May 2012
Location: Jerilderie, New South Wales, Australia
Posts: 4,043
View DaveTTC's Photo Album My Photos
Quote:
Originally Posted by gmcsmoke
Mike, I sent you an email for the tutorial, thanks. The pm top has a tenon but my chuck jaws are not small enough to grip it. I'll try the wooden cone for the top, I use a drive tenon on the bottom and that works pretty well.
Pictures of how you do it or it didnt happen

Dave The Turning Cowboy

DaveTTC

The Turning Cowboy
Turning Wood into Art
DaveTTC is offline
post #9 of 12 Old 04-08-2014, 05:07 PM Thread Starter
Senior Member

Join Date: Feb 2011
Location: Saxonburg
Posts: 246
View gmcsmoke's Photo Album My Photos

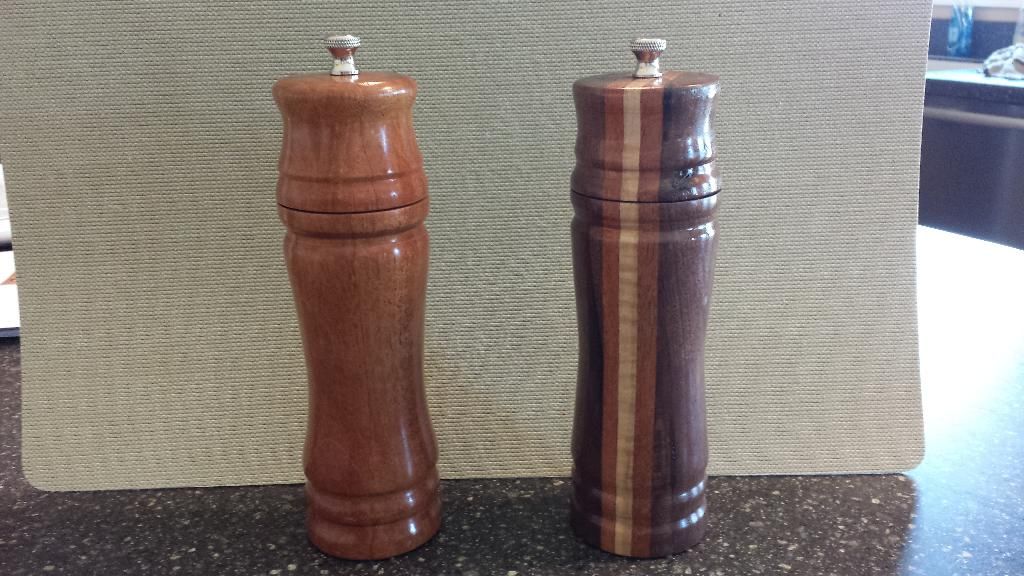

Here's how my first couple turned out. Finished them with salad bowl finish, they're just some scraps I had in the shop.

Thanks for the tips and Mike for the tutorial.


[/URL]
gmcsmoke is offline
post #10 of 12 Old 04-08-2014, 05:55 PM
Senior Member

Dave Paine's Avatar

Join Date: May 2012
Location: Eastern PA
Posts: 7,222
View Dave Paine's Photo Album My Photos
Looking good. They came out very nice.

I love being able to use offcuts. Laminating pieces is a great way to use board offcuts to make turning blanks.
Dave Paine is offline
post #11 of 12 Old 04-08-2014, 06:14 PM
Turning Wood Into Art

DaveTTC's Avatar

Join Date: May 2012
Location: Jerilderie, New South Wales, Australia
Posts: 4,043
View DaveTTC's Photo Album My Photos
+1 looks great. Would have loved an in process pic too but the finished job is nice and impressive.

Dave The Turning Cowboy

DaveTTC

The Turning Cowboy
Turning Wood into Art
DaveTTC is offline
post #12 of 12 Old 04-09-2014, 10:33 AM
Senior Member

firehawkmph's Avatar

Join Date: Apr 2008
Location: Near Cleveland, Ohio
Posts: 5,031
View firehawkmph's Photo Album My Photos
Very good GM, they turned out nice. Glad to be able to help. Now you'll find they can become addicting.
Mike Hawkins
firehawkmph is offline
