Help I broke my banjo

Yep it happened...I caught an edge on some green wood and snapped the end off the banjo tool rest.......ruined my turning session but that's all.
Now I have to decide to repair the banjo or upgrade.
I'm going to take it to my local metal fabricator and see if he can repair it.
Do you guys have a source of banjos that might be compatible with my old delta rockwell?
What do I need to know to make them compatible?

Please help...I'm bummin'

Learning more about tools everyday
tcleve4911 is offline
Sponsored Links
Advertisement

post #2 of 22 Old 10-16-2011, 09:53 AM
Senior Member

sawdustfactory's Avatar

Join Date: Jan 2011
Location: North Bend, WA
Posts: 4,801
View sawdustfactory's Photo Album My Photos
The banjo is the piece that holds the tool rest and attaches to the lathe bed. Did you breat this, or the actual tool rest?

That bowl was perfect right up until that last cut...
sawdustfactory is offline
post #3 of 22 Old 10-16-2011, 10:01 AM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
Quote:
Originally Posted by sawdustfactory View Post
The banjo is the piece that holds the tool rest and attaches to the lathe bed. Did you breat this, or the actual tool rest?
I broke the banjo.

Learning more about tools everyday
tcleve4911 is offline
Sponsored Links
Advertisement

post #4 of 22 Old 10-16-2011, 10:22 AM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 25,435
View woodnthings's Photo Album My Photos
anything on Ebay?

http://www.ebay.com/sch/i.html?_nkw=lathe+banjo
I've had good luck brazing cast iron. I broke the entire idler pulley and support off my metal cut off saw and brazed it back on, after positioning and securing it, ground it down and painted it. Can't tell anything ever happened. A good metal shop will fix it, no problems, look/ask for the "old" guy who knows how. bill

The answer to your question will only be as detailed and specific as the question is detailed and specific. Good questions also include a sketch or a photo that illustrates your issue. (:< D)
woodnthings is online now
post #5 of 22 Old 10-16-2011, 10:32 AM
Senior Member

duncsuss's Avatar

Join Date: Aug 2009
Location: Boston, MA
Posts: 2,609
View duncsuss's Photo Album My Photos
1) I'm REALLY glad that the damage was limited to just the banjo

2) can you post photos of the broken part(s) ... I have an old Dunlap lathe which I was trying to figure out what I should do with ... maybe the banjo would fit your lathe ways?

Please visit my website, Fruit of the Lathe
duncsuss is offline
post #6 of 22 Old 10-16-2011, 01:08 PM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
Quote:
Originally Posted by woodnthings View Post
http://www.ebay.com/sch/i.html?_nkw=lathe+banjo
I've had good luck brazing cast iron. I broke the entire idler pulley and support off my metal cut off saw and brazed it back on, after positioning and securing it, ground it down and painted it. Can't tell anything ever happened. A good metal shop will fix it, no problems, look/ask for the "old" guy who knows how. bill
Thanks,
That answers my first question....Metal shop.....I'm looking for someone as old as I am

2nd..
Is it worth it to repair or should I consider updating the banjo to a more versatile rest and attachments.

Thanks
Tom

Learning more about tools everyday
tcleve4911 is offline
post #7 of 22 Old 10-16-2011, 04:21 PM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 25,435
View woodnthings's Photo Album My Photos
repair or update..

I'd repair it. It will take an hour or so of shop time if it's a simple break which can be V grooved and brazed. It may also be able to be reinforced with a sleeve if it's the vertical part. The wings are a different story and are under a lot of force from the securing bolt.
A weld/braze may nor hold up...pictures would help or a description of the exact "condition" for further online surgical advice....

If there is an upgrade that offers more features maybe that's the way to go. I donno? I've seen some with dual posts for longer work..spindles. etc. You can always fix AND get a new one. bill

The answer to your question will only be as detailed and specific as the question is detailed and specific. Good questions also include a sketch or a photo that illustrates your issue. (:< D)
woodnthings is online now
post #8 of 22 Old 10-16-2011, 05:28 PM
Senior Member

phinds's Avatar

Join Date: Mar 2009
Location: Central New York
Posts: 3,248
View phinds's Photo Album My Photos
I once broke a banjo and had great luck using a piece of oak for a temporary replacement while I ordered a new one. For all I know the oak piece might have lasted forever.

You can never have too much pepperoni on your pizza or own too many clamps.
www.hobbithouseinc.com/personal/woodpics/
phinds is offline
post #9 of 22 Old 10-16-2011, 05:53 PM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
Quote:
Originally Posted by woodnthings View Post
I'd repair it. It will take an hour or so of shop time if it's a simple break which can be V grooved and brazed. It may also be able to be reinforced with a sleeve if it's the vertical part. The wings are a different story and are under a lot of force from the securing bolt.
A weld/braze may nor hold up...pictures would help or a description of the exact "condition" for further online surgical advice....
Dear Dr Bill
Here's my problem..........

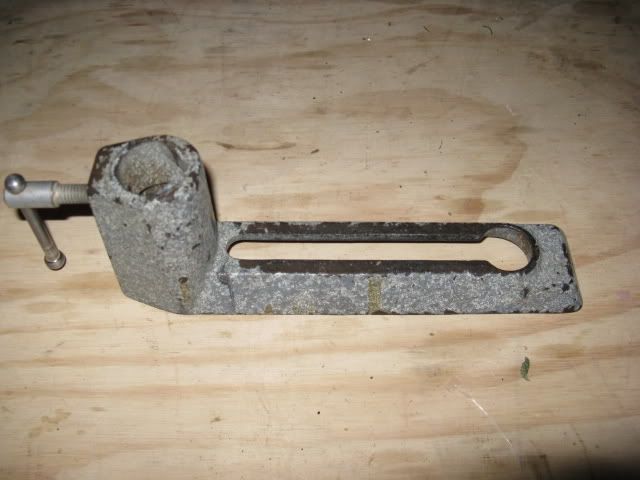

I started with this

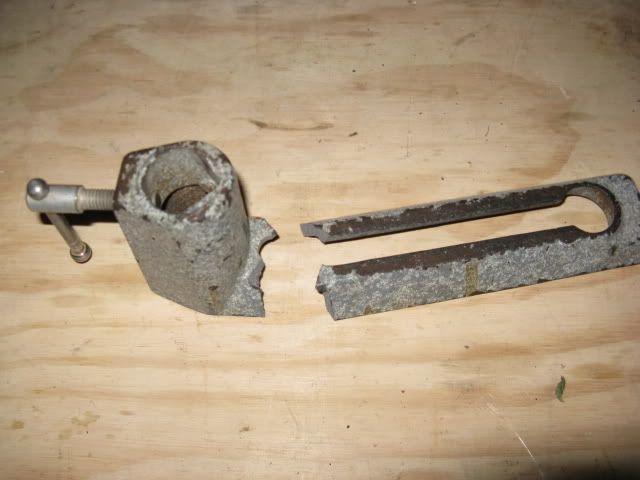

....and ended up with this



Repair or upgrade?????

Learning more about tools everyday
tcleve4911 is offline
post #10 of 22 Old 10-16-2011, 06:07 PM
Senior Member

phinds's Avatar

Join Date: Mar 2009
Location: Central New York
Posts: 3,248
View phinds's Photo Album My Photos
Ah ... I forgot ... when I did the fix w/ oak, it was on a tube-rail lathe with a two-part banjo and the bottom part broke and was easily replaced w/ oak. No help to you at all.

You can never have too much pepperoni on your pizza or own too many clamps.
www.hobbithouseinc.com/personal/woodpics/
phinds is offline
post #11 of 22 Old 10-16-2011, 06:14 PM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
Quote:
Originally Posted by phinds View Post
Ah ... I forgot ... when I did the fix w/ oak, it was on a tube-rail lathe with a two-part banjo and the bottom part broke and was easily replaced w/ oak. No help to you at all.
That's okay...I appreciate the interest.

....besides...I was trying to picture that....oak?

Learning more about tools everyday
tcleve4911 is offline
post #12 of 22 Old 10-16-2011, 07:33 PM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 25,435
View woodnthings's Photo Album My Photos
I you can add any additional material up close to the post to reinforce the intersection, then brazing may work. Keep in mind the intersection is the weakest part of the rest.

What I would do: I would saw off the post and braze it to a new steel plate with the slot cut into it with a metal cutting bandsaw from the post end. Or use two separate bars welded together to form the proper slot width. Or make the whole thing out of steel and bore a round to accept the tool rest. Don't get me started here.... I never throw away a broken tool unless I've come to hate it for some reason. bill

This one looks close: http://www.ebay.com/itm/SEARS-Crafts...item3a6b43b4fb


The answer to your question will only be as detailed and specific as the question is detailed and specific. Good questions also include a sketch or a photo that illustrates your issue. (:< D)

Last edited by woodnthings; 10-16-2011 at 10:11 PM.
woodnthings is online now
post #13 of 22 Old 10-16-2011, 08:00 PM
Old School

cabinetman's Avatar

Join Date: Jul 2007
Location: So. Florida
Posts: 24,062
View cabinetman's Photo Album My Photos
If the part is available, I would just order another one.








.
cabinetman is offline
post #14 of 22 Old 10-16-2011, 10:17 PM
Senior Member

RetiredLE's Avatar

Join Date: Jan 2011
Location: Eastern WA State
Posts: 308
View RetiredLE's Photo Album My Photos
Is this a cast iron piece?

If so this article might help if you have the tools. Otherwise, as has been said, just get a new one.

Welding Cast Iron
There are many different cast irons, many of which are totally unweldable as they will crack when you heat them. Fortunately by far the most common and the most frequently used for car components (bell housings etc) is called Nodular or SG Iron.

Nodular Cast Iron is modified by adding an innoculant just before casting (Magnesium or Cerium) which changes the shape of the graphite flakes from pointed (stress raiser) to spheroidal (hence SG or Spheroidal Graphite). This grade welds relatively easily but there is a knack to it:
  • Keep it cool not cold (around 50C is a good indicator).
  • Avoid long runs, 25mm max.
  • Balance the welds across the joint - start at one end and then weld a bit at the opposite end.
  • Use specialist Nickel Iron electrodes that run on low current.
  • After every weld peen the bead (tap it lightly with the round part of a ball pein hammer). When preparing the joint grind out the surface to be welded so you get a full penetration weld.
  • If it’s a crack repair, grind out the crack, drill the ends to stop it propagating, and allow to cool to room temperature after every weld.
Preheat or Not?

To preheat effectively you need to heat the casting to 500C (I wouldn’t fancy trying to weld it when its that hot). Also the preheat has to be applied consistently, no hot spots or cold spots. Castings are usually variable section thickness so the thick bits need to be the same temperature as the thin bits. Really the only way to effectively preheat is to use an oven / furnace which makes it very difficult. Therefore the cool method is the most widely used.

The weld metal filler specifically designed for cast iron is either pure nickel or nickel-iron. It is possible to use mild steel but it will pick up carbon from the cast iron and become very hard and brittle which makes it crack sensitive and very difficult to grind back to shape. Nickel blocks the migration of carbon therefore it doesn’t become brittle, even the nickel-iron alloy, so it can be machined and it retains its elasticity.

The electrode coatings used are designed to promote operation at low currents and consist mainly of graphite which is an excellent electrical conductor. Why is this type of coating only used on cast iron rods? For exactly the same reason as mentioned in the earlier paragraph. Graphite would add carbon to, and em-brittle, virtually any steel but not nickel rich alloys.

--
When you think about it, God has to be the best inventor of all time. He took a rib from Adam and made a loudspeaker.

Last edited by RetiredLE; 10-16-2011 at 10:23 PM.
RetiredLE is offline
post #15 of 22 Old 10-17-2011, 09:29 PM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
After a few calls in my area, I am headed down to see "Butch the Banjo Guy".
He has a specialty welding & fabrication shop in the next town over.
When I called him he said " oh sure...bring in on in. You're not the first to bring one of these in for repair''
.......awesome!!!!
This might be fun.... or expensive......or both.
I'll keep you posted

Learning more about tools everyday
tcleve4911 is offline
post #16 of 22 Old 10-17-2011, 09:43 PM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 25,435
View woodnthings's Photo Album My Photos
take some pictures!

Show how he does it if he'll let you. Tell him his shop will be famous on the web. Good Luck.

The answer to your question will only be as detailed and specific as the question is detailed and specific. Good questions also include a sketch or a photo that illustrates your issue. (:< D)
woodnthings is online now
post #17 of 22 Old 10-18-2011, 07:21 AM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
Quote:
Originally Posted by woodnthings View Post
Show how he does it if he'll let you. Tell him his shop will be famous on the web. Good Luck.
Good idea....I'll bring my camera and get right in his way and say " look this way, and smile for the forum, BUTCH!!!!

Learning more about tools everyday
tcleve4911 is offline
post #18 of 22 Old 10-18-2011, 09:12 AM
Sydney, Australia

Join Date: Mar 2008
Posts: 207
View hughie's Photo Album My Photos
Tig

I see that its cast iron, so see if your fabricator has a TIG welder. If so, good, as TIG welding of cast iron is the way to go its fast and reliable.
All you do is knock the flux off some cast iron arc welding rods and use them as filler for the TIG. As for gas the standard argon gas used for stainless will do fine. You can get awya with little of no pre-heat of the banjo

I have done this on my own cast toolrest a couple of times and for others around my neck of the woods, never had problem with any of the joints

hughie
_______________________________________
hughie is offline
The Following User Says Thank You to hughie For This Useful Post:
tcleve4911 (10-18-2011)
post #19 of 22 Old 10-18-2011, 07:04 PM
OLD DUDE AT WORK

H. A. S.'s Avatar

Join Date: Sep 2010
Location: IN
Posts: 1,460
View H. A. S.'s Photo Album My Photos
Quote:
Originally Posted by tcleve4911 View Post
Thanks,
That answers my first question....Metal shop.....I'm looking for someone as old as I am

2nd..
Is it worth it to repair or should I consider updating the banjo to a more versatile rest and attachments.

Thanks
Tom

Here's one I made to replace the cheap POS, that came with the cheap POS, HF lathe:

http://www.woodworkingtalk.com/membe...ums/machining/

Harrison, at your service!
H. A. S. is offline
post #20 of 22 Old 10-18-2011, 07:15 PM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 25,435
View woodnthings's Photo Album My Photos
Now that's what I was talking about!

You might want to consider a slightly larger washer under the locking bolt, but HD is right! I actually think you could make it with 2 solid bars and the bored round,with a cross bolt at the far end with a spacer, rather than slotting a wide bar. At least that's the way I would do it, because I'd want a clean slot on the inside, and I don't have a vertical mill. (it's on the list however) bill



The answer to your question will only be as detailed and specific as the question is detailed and specific. Good questions also include a sketch or a photo that illustrates your issue. (:< D)
woodnthings is online now
Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Woodworking Talk - Woodworkers Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Similar Threads
Thread Thread Starter Forum Replies Last Post
Common problem with craftsman? (stopper broke) Paniller Power Tools & Machinery 2 01-28-2011 10:15 AM
Help! I broke one of my dad's antique chisels! greg falone General Woodworking Discussion 5 06-09-2010 08:41 PM
LOML broke an agreement! hancockj Off Topic 11 02-16-2010 04:05 PM
Older Banjo Eyebolt Buckeye94 Power Tools & Machinery 4 08-13-2009 09:34 AM
Old Banjo trash collector Off Topic 1 01-02-2009 03:24 PM

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


For the best viewing experience please update your browser to Google Chrome
