post #1 of 29 Old 03-13-2009, 09:21 AM Thread Starter
Splinter Cushion

Join Date: Feb 2009
Location: Huntsville, AL
Posts: 661
View b00kemdano's Photo Album My Photos
First Bowl

Hey folks. Here's my first bowl! It was a lot more work than the tops and the pens. It's about 7" diameter, 4" tall and 3 1/2" deep. It's made from a 1x8 oak board that was chopped up and glued together with each piece turned 90 degrees. That turn made a nice grain pattern. You can see in the two pictures, that when you turn the bowl, the bands alternate light and dark. The walls are a little thick at 3/8", but I started getting nervous, and I don't have the right tools for a bowl. I was having a horrible time getting the inside of the walls squared up, so I ended up easing the parting tool in all the way from the top to the bottom to square it, then rounded the inside bottom corner a bit with a spindle gouge.

What tools are recommended for bowls?





I rubbed it down with teak oil a few times. I think when that fully cures, I'll wax it with some orange wax.

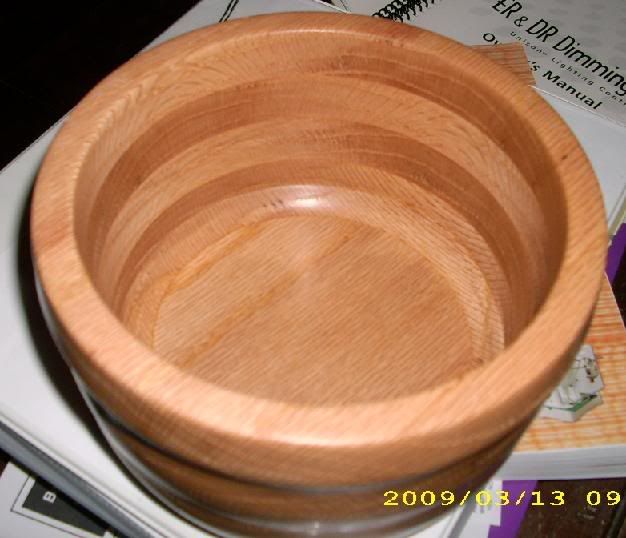

Here's the inside.



Whaddya think?
b00kemdano is offline
Sponsored Links
Advertisement

post #2 of 29 Old 03-13-2009, 10:11 AM
Junior Member

Join Date: Jan 2009
Location: Rogersville al.
Posts: 23
View cwhit's Photo Album My Photos
The bowl looks great, I think I'll try that with the alternating boards.
cwhit is offline
post #3 of 29 Old 03-13-2009, 10:21 AM
Member

Join Date: Dec 2008
Location: **** balls
Posts: 98
View jporter5333's Photo Album My Photos
good looking bowl

Jason Porter
jporter5333 is offline
Sponsored Links
Advertisement

post #4 of 29 Old 03-13-2009, 06:02 PM
This Space For Rent

slatron25's Avatar

Join Date: Dec 2007
Location: TN
Posts: 819
View slatron25's Photo Album My Photos
Nice bowl. A bowl gouge might be in your future. Maybe a heavy side scraper also. Using a spindle gouge down off in there could be a little dangerous.

Tim
slatron25 is offline
post #5 of 29 Old 03-13-2009, 06:45 PM
Senior Member

firehawkmph's Avatar

Join Date: Apr 2008
Location: Near Cleveland, Ohio
Posts: 4,982
View firehawkmph's Photo Album My Photos
Ditto on what Slatron said,
Get yourself a decent bowl gouge. Don't use a spindle gouge inside a bowl. Good chance for an big catch.
Mike Hawkins
firehawkmph is offline
post #6 of 29 Old 03-13-2009, 07:09 PM
Just makin chips fly

Join Date: Mar 2008
Location: FL an NC
Posts: 642
View The woodsman's Photo Album My Photos
First bowl

Ditto on all.Very nice looking piece,but You should have a bowl gouge (good one) as they are heavier flute and far less likely to snap if you get a big catch.
Ken
The woodsman is offline
post #7 of 29 Old 03-13-2009, 07:53 PM
Fighting the fight.....

PTownSubbie's Avatar

Join Date: Mar 2009
Location: Hampton Roads, VA
Posts: 231
View PTownSubbie's Photo Album My Photos
Very nice for a first bowl!! I haven't gotten that far yet. Might take a class tomorrow.

I like the alternating grain that was created by rotating the boards with each level. I will have to try that with some of the cutoffs in my shop.

Very nice though.....

Fred
PTownSubbie is offline
post #8 of 29 Old 03-13-2009, 11:46 PM
Senior Member

AZ Termite's Avatar

Join Date: Dec 2008
Location: Globe, AZ
Posts: 680
View AZ Termite's Photo Album My Photos
Very nice bowl. If you look in my photos you can see a few of mine. I have a 3/8 bowl gouge that I use. It has a long handle on it that makes controlling it much easier. I have really gotten into turning bowls. The latest ones I have done are segmented bowls. They are more work to make the blanks but the options are endless.

Assumption is the mother of all foul -ups
AZ Termite is offline
post #9 of 29 Old 03-14-2009, 12:07 AM Thread Starter
Splinter Cushion

Join Date: Feb 2009
Location: Huntsville, AL
Posts: 661
View b00kemdano's Photo Album My Photos
The bowl was a lot more turning than anything that I've done yet. Of course, it was a giant chunk of glued wood. If I glued some rings together instead, it might not take so long to shape. Having a bowl gouge would probably help, too.

I'd really like to make cool stuff like a clewes style box.

This site has some really neato box projects. I'm running out of scrap oak, though.... I may have to make a run to the hardwood store again!
b00kemdano is offline
post #10 of 29 Old 03-14-2009, 09:16 AM
Member

Join Date: Nov 2008
Location: missouri
Posts: 41
View Hhaines's Photo Album My Photos
Now that you have your feet wet.....go to "Segmented turning" and start looking at some ideas that will really get you hooked.......You have a very nice start.......keep going.......
Hhaines is offline
post #11 of 29 Old 03-14-2009, 09:44 AM
4Woodturning

Jeff4woodturning's Avatar

Join Date: Jan 2009
Location: Cedar Hill, MO.
Posts: 352
View Jeff4woodturning's Photo Album My Photos
Nice job on your first bowl. like your idea with gluing different wood together.

A nice bowl gouge and a heavy bowl scraper maybe needed in your future. A member of our turning club over extended a 3/8 gouge doing a bowl, broke 2 fingers and receive 10 stitches. please be careful.

Jeff,

"Just because your not bleeding, don't mean your turning safely"..
Jeff4woodturning is offline
post #12 of 29 Old 03-14-2009, 11:30 AM Thread Starter
Splinter Cushion

Join Date: Feb 2009
Location: Huntsville, AL
Posts: 661
View b00kemdano's Photo Album My Photos
Quote:
Originally Posted by Jeff4woodturning View Post
broke 2 fingers and receive 10 stitches
YOWCH!

I had a few catches in there, but, luckily, I wasn't putting much pressure on it, and they didn't hurt. Very light passes for me! I also learned a more proper way of sharpening my tools yesterday, so I think that will help in the future.

I'm gonna have to psych myself up to forking out $60 for a bowl gouge, I guess.

Segmented bowls are was what made me decide to buy a lathe instead of a band saw! I'm not sure I will have the patience to assemble an elaborate segmented bowl, but I will probably glue up random pieces of whatever's around and see what I come up with!
b00kemdano is offline
post #13 of 29 Old 03-14-2009, 11:39 AM
Fighting the fight.....

PTownSubbie's Avatar

Join Date: Mar 2009
Location: Hampton Roads, VA
Posts: 231
View PTownSubbie's Photo Album My Photos
Segmented bowls are what enticed me to get a lathe also. I think they are so cool. I have to learn the basics first and live through the patience of glue ups.

Might glue up some scraps like you did today and see how it goes.
PTownSubbie is offline
post #14 of 29 Old 03-15-2009, 10:45 AM
Senior Member

AZ Termite's Avatar

Join Date: Dec 2008
Location: Globe, AZ
Posts: 680
View AZ Termite's Photo Album My Photos
Dano, PT, Segmented turning is a lot of fun. The one thing with segmented turning is that you have to have the angles of the miters right or you will end up with gaps in the joints. That is the part that I find most annoying. I bought the Incra 1000SE miter gauge and that helps a lot. The main thing is to have fun with it and let your imagination run.

Assumption is the mother of all foul -ups
AZ Termite is offline
post #15 of 29 Old 03-15-2009, 10:52 AM Thread Starter
Splinter Cushion

Join Date: Feb 2009
Location: Huntsville, AL
Posts: 661
View b00kemdano's Photo Album My Photos
I've got some segmented blanks glued up right now for pens, and I can't wait to see how they turn out!

I'll have to work up the patience to wait for glue to dry on a whole bowl!
b00kemdano is offline
post #16 of 29 Old 03-15-2009, 11:44 AM
Senior Member

AZ Termite's Avatar

Join Date: Dec 2008
Location: Globe, AZ
Posts: 680
View AZ Termite's Photo Album My Photos

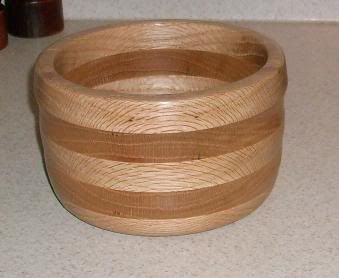

I did a thread First Segmented bowl,http://www.woodworkingtalk.com/f13/f...ted-bowl-8336/ I did a step by step at the bottom. It is all about starting where you are comfortable. The first one was 3 rings and the bottom. The second was 4 rings and the bottom. If you buy enough strap clamps you can glue more rings at once. I only have two strap clamps so I can only do two at a time. Like I say though it is a lot of fun.

Assumption is the mother of all foul -ups

Last edited by AZ Termite; 03-15-2009 at 11:57 AM.
AZ Termite is offline
post #17 of 29 Old 03-15-2009, 12:20 PM
Fighting the fight.....

PTownSubbie's Avatar

Join Date: Mar 2009
Location: Hampton Roads, VA
Posts: 231
View PTownSubbie's Photo Album My Photos
AZ,
Did you finish the bottom or just leave the chuck cutout? It looked like you mounted the bottom board directly on the chuck. Is that correct?

Did you just come up with the cut dimensions yourself or use a program?

That segmented bowl is really cool.
PTownSubbie is offline
post #18 of 29 Old 03-15-2009, 12:58 PM
Senior Member

AZ Termite's Avatar

Join Date: Dec 2008
Location: Globe, AZ
Posts: 680
View AZ Termite's Photo Album My Photos
PT, I did finish the bottom of the bowl. I have a set of flat jaws for my chuck. I turned the bowl around on the flat jaws and turned the mounting hole out of it.
I did not use a program. I cut the stock 1 1/2" wide and cut the segments. Each ring needs to be a little longer than the ring before. I start with the smallest ring and work from there. The top ring I made quit a bit bigger than the ring before, that enabled me to to flare it at the top. Here are a couple of pics.
Name:  turn6.jpg
Views: 215
Size:  61.6 KB

Name:  bottom.jpg
Views: 219
Size:  51.7 KB

Assumption is the mother of all foul -ups
AZ Termite is offline
post #19 of 29 Old 03-15-2009, 03:43 PM
Fighting the fight.....

PTownSubbie's Avatar

Join Date: Mar 2009
Location: Hampton Roads, VA
Posts: 231
View PTownSubbie's Photo Album My Photos
AZ, Thanks for the pictures.

b00kemdano, How did you finish your bottom?
PTownSubbie is offline
post #20 of 29 Old 03-15-2009, 05:37 PM Thread Starter
Splinter Cushion

Join Date: Feb 2009
Location: Huntsville, AL
Posts: 661
View b00kemdano's Photo Album My Photos
Termite! I tried to find that thread a couple weeks ago to show my wife your segmented bowl.... so YOU'RE the one!

I must say that your segmented bowl there is the reason that I opted for the lathe instead of the band saw. I had never considered wood turning before I came to this forum, and your bowl cinched it for me.

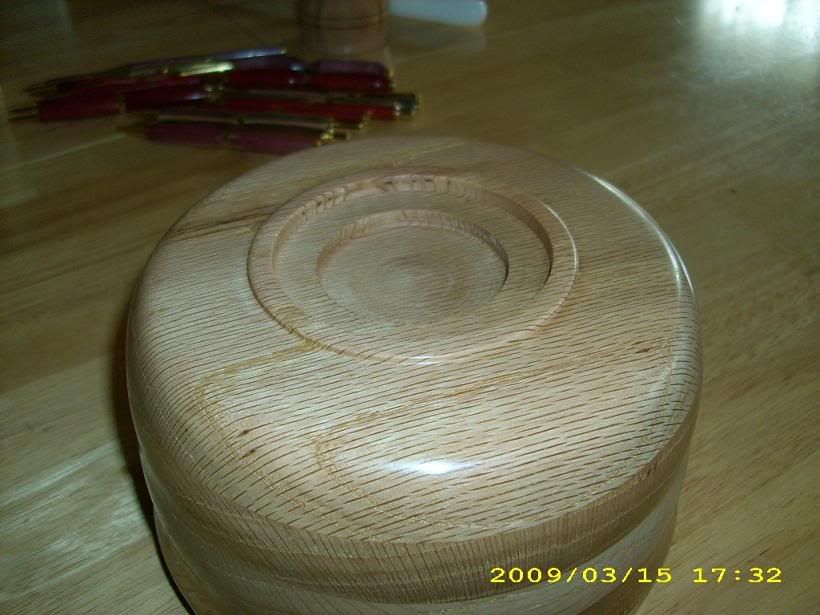

PT - The bottom of my bowl is a little thick because it was the first time I used my 4 jaw chuck and my estimate for how wide it would open was wrong. So, there's a large recess that is too big for my chuck, and within that, there's a smaller recess that actually fits the chuck. When I formed the bottom of the bowl, though, I left about 1/8" ring on the outside of the larger recess so the bowl would sit on the ring.

b00kemdano is offline
