post #1 of 7 Old 12-17-2007, 08:37 PM Thread Starter
Member

Join Date: Sep 2007
Posts: 75
View Gordon Seto's Photo Album My Photos
Couple of crocked ornaments

Maple globe with finial from Cocobolo pen blank.

I had some difficulty with this sea urchin shell; it has a kidney shape. The big gap was ugly. Next time, I should choose the shell with that in consideration. I think the disk was too heavy for the shape. Comments are welcome.

Gordon
Attached Images

Gordon Seto is offline
Sponsored Links
Advertisement

post #2 of 7 Old 12-17-2007, 09:49 PM
Senior Member

mdlbldrmatt135's Avatar

Join Date: Dec 2006
Location: Olean, Ny
Posts: 802
View mdlbldrmatt135's Photo Album My Photos
Send a message via MSN to mdlbldrmatt135 Send a message via Yahoo to mdlbldrmatt135 Send a message via Skype™ to mdlbldrmatt135
OK... I Give how do you turn the Funky Shape????
mdlbldrmatt135 is offline
post #3 of 7 Old 12-17-2007, 10:24 PM Thread Starter
Member

Join Date: Sep 2007
Posts: 75
View Gordon Seto's Photo Album My Photos
The finials were completely turned with multi-axis, shifting the centers.

Gordon
Gordon Seto is offline
Sponsored Links
Advertisement

post #4 of 7 Old 12-25-2007, 10:59 PM
Senior Member

Join Date: Mar 2007
Posts: 484
View Mitch Cholewinski's Photo Album My Photos
matt
Very nice work. Do you use an eccentric chuck of some kind? I would like to try turning some work like this but can't find anyone that explains the process and the chuck or whatever you need to do this turning. Any help you can give me? Thanks. Mitch
Mitch Cholewinski is offline
post #5 of 7 Old 12-26-2007, 03:07 AM
Guest

Join Date: Apr 2007
Posts: 49
View Crazybear's Photo Album My Photos
If my way of thinking is correct you do the turning between centres and when you want a new shape you simply move one or both of the centres slightly
Crazybear is offline
post #6 of 7 Old 12-26-2007, 08:51 AM Thread Starter
Member

Join Date: Sep 2007
Posts: 75
View Gordon Seto's Photo Album My Photos
These were done with the original Escoulen eccentric chuck.
Yes, most of the time, you don't need to use any chuck; eccentric turning can be turned between centers. But for these, it would be a big challenge without the chuck. Because the finials were thin, when you can put enough pressure from the tailstock end to drive the piece, the thin part would buckle.
The cocobolo is pretty but the grain is coarse, I had some chatter problem when I want to go any thinner.

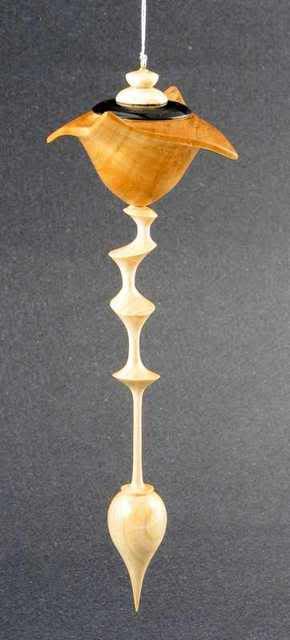

Here is an old one with hard maple finial:



Gordon
Gordon Seto is offline
post #7 of 7 Old 12-27-2007, 01:43 PM
Senior Member

Join Date: Mar 2007
Posts: 484
View Mitch Cholewinski's Photo Album My Photos
Gordon
That is a beautiful piece of work. I like this one fine.
the four sided bowl on top was turned separately then attached on top of the finial right? I can't imagine turning this as one piece. Again, nice job, Mitch
Mitch Cholewinski is offline
