bottle stopper mandrel

I'm struggling with a way to chuck up my bottle stopper blanks.
This looks like something I'd like to invest in but unclear of how to install it into my Nova Chuck.


I'm assuming I need a collet to grab the 3/8" shaft.
Are the collets universal as far as fitting into the middle of my Nova chuck? or do I need to buy a Nova collet?

How do I size this? What's the Outside Diameter need to be in order to fit the chuck?




or am I thinking wrongly about this technique?

My first attempt was to chuck up a 3/8" x 16tpi threaded rod into my drill chuck that has a #2 Morse taper.
It worked pretty good but I could not keep the Morse taper seated. It kept falling out/coming loose.
What am I missing here?

Thanks
Tom

Learning more about tools everyday

Last edited by tcleve4911; 01-16-2012 at 09:26 AM.
tcleve4911 is offline
Sponsored Links
Advertisement

post #2 of 20 Old 01-16-2012, 09:24 AM
Senior Member

sawdustfactory's Avatar

Join Date: Jan 2011
Location: North Bend, WA
Posts: 4,801
View sawdustfactory's Photo Album My Photos
I've not used a collet chuck (but have seen them in use) and I use a stopper chuck that threads onto my spindle. With a mandrel like that, I believe the collet chuck mounts in the headstock like a morse taper and holds that stopper mandrel. If others have any better explanation I defer to them.

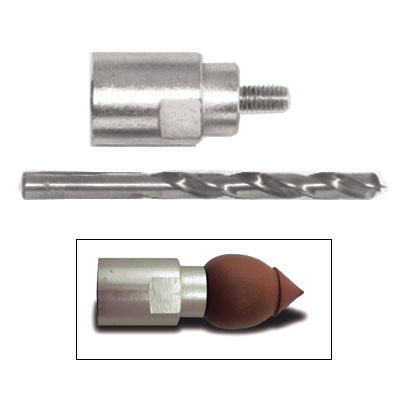

This is what I use: http://www.pennstateind.com/store/PK-BS1-MJ.html

That bowl was perfect right up until that last cut...
sawdustfactory is offline
post #3 of 20 Old 01-16-2012, 09:30 AM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
That's a very simple idea and I love it!!!!

That means you have to take off the lathe chuck, correct?
...and that's fine, I just wanted to see different ideas.....

I'm liking yours, Dusty

Thank you
Tom

Learning more about tools everyday
tcleve4911 is offline
Sponsored Links
Advertisement

post #4 of 20 Old 01-16-2012, 09:33 AM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
I'm liking that so much, I'm going to order one.

...but in the meantime, could you help me with that other question I had concerning the #2 MT drill chuck coming loose?

Learning more about tools everyday
tcleve4911 is offline
post #5 of 20 Old 01-16-2012, 09:38 AM
Senior Member

Join Date: Feb 2010
Location: Whittier, CA. USA
Posts: 344
View jlord's Photo Album My Photos
Woodcraft sells a chuck that has a #2MT. I think you would still have to take the chuck off so it wasn't in the way. The one from PSI is cheaper.

Tom if you have a drill chuck you can mount the mandrel shown in your picture if you need to. Personally if you do not have a collet chuck I would get another style.

James
Whittier, CA.

Just because you can, doesn't always mean you should!
jlord is offline
post #6 of 20 Old 01-16-2012, 09:41 AM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
Quote:
Originally Posted by jlord View Post
Woodcraft sells a chuck that has a #2MT. I think you would still have to take the chuck off so it wasn't in the way. The one from PSI is cheaper.

Tom if you have a drill chuck you can mount the mandrel shown in your picture if you need to. Personally if you do not have a collet chuck I would get another style.
Thanks jlord
I can't seem to find it online in the Woodcraft.
Can you copy & post the item you are describing?
Greatly appreciated

Learning more about tools everyday
tcleve4911 is offline
post #7 of 20 Old 01-16-2012, 10:06 AM
Senior Member

Join Date: Feb 2010
Location: Whittier, CA. USA
Posts: 344
View jlord's Photo Album My Photos
Quote:
Originally Posted by tcleve4911 View Post
Thanks jlord
I can't seem to find it online in the Woodcraft.
Can you copy & post the item you are describing?
Greatly appreciated
I tried looking it up the other day also & could not find it. Here's their stock # 846953 that's on the package. The description is LJR#MT Bottle Stopper SS 3/8" Mandrel 2MT. It's made from Stainless Steel. It's also threaded with a 1/4" x 20 on the backside so you can use a drawbar.
Attached Thumbnails
Click image for larger version

Name:	Bottle Stopper Mandrel Large Web view.jpg
Views:	590
Size:	71.1 KB
ID:	35934


James
Whittier, CA.

Just because you can, doesn't always mean you should!
jlord is offline
post #8 of 20 Old 01-16-2012, 10:45 AM
Senior Member

sawdustfactory's Avatar

Join Date: Jan 2011
Location: North Bend, WA
Posts: 4,801
View sawdustfactory's Photo Album My Photos
Quote:
...but in the meantime, could you help me with that other question I had concerning the #2 MT drill chuck coming loose?
I missed this part. What's your question?

And yes, the one I posted you take the chuck off and just thread this one on.

That bowl was perfect right up until that last cut...
sawdustfactory is offline
post #9 of 20 Old 01-16-2012, 10:48 AM
Senior Member

sawdustfactory's Avatar

Join Date: Jan 2011
Location: North Bend, WA
Posts: 4,801
View sawdustfactory's Photo Album My Photos
Sorry, re-read your original post. I think some accessories like the morse taper drill chuck are not precisely machined and/or need some pressure from the tailstock to stay seated. Don't quote me on this one though.

That bowl was perfect right up until that last cut...
sawdustfactory is offline
post #10 of 20 Old 01-16-2012, 11:13 AM
Senior Member

Join Date: Aug 2010
Location: North Carolina
Posts: 1,021
View NCPaladin's Photo Album My Photos
Morse tapers are made for straight on pressure. That is why they work in a drill press.
Without tailstock support, and applying pressure from the side, there is nothing to hold them in.
I would think the Nova pin jaws would grip that small. Yeah, a lot more expensive but you would have a smaller set of jaws for expansion (1) for small items such as tea light, etc where the 50mm is too large.

They who can give up essential liberty to obtain a little temporary safety, deserve neither liberty nor safety. Benjamin Franklin
NCPaladin is offline
post #11 of 20 Old 01-16-2012, 11:15 AM
Senior Member

Join Date: Feb 2010
Location: Whittier, CA. USA
Posts: 344
View jlord's Photo Album My Photos
To keep items seated in the MT & working loose make a draw bar. If your MT has threads on the backside you can use 1/4x20 all thread. Insert it thru the spindle into the backside of your taper with a knob on the handwheel side to tighten it. This will keep your taper seated.
Attached Thumbnails
Click image for larger version

Name:	Draw Baw 002 Large Web.jpg
Views:	318
Size:	46.0 KB
ID:	35970

Click image for larger version

Name:	Draw Baw 001 Large Web view.jpg
Views:	234
Size:	48.8 KB
ID:	35971

Click image for larger version

Name:	Draw Baw 003 Large Web view.jpg
Views:	237
Size:	59.9 KB
ID:	35972

Click image for larger version

Name:	Draw Baw 004 Large Web view.jpg
Views:	262
Size:	59.1 KB
ID:	35973

Click image for larger version

Name:	Draw Baw 005 Large Web view.jpg
Views:	366
Size:	72.4 KB
ID:	35974


James
Whittier, CA.

Just because you can, doesn't always mean you should!

Last edited by jlord; 01-16-2012 at 01:48 PM.
jlord is offline
The Following 3 Users Say Thank You to jlord For This Useful Post:
djg (01-17-2012), Glidden (01-16-2012), tcleve4911 (01-16-2012)
post #12 of 20 Old 01-16-2012, 05:33 PM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
Got it jlord...thanks.

Learning more about tools everyday
tcleve4911 is offline
post #13 of 20 Old 01-16-2012, 05:44 PM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
so will this work?

So I called the guy at Woodcraft and asked him if I needed a collet to use the mandrel.
He said " No. You remove the jaws from the Nova chuck and it will squeeze tight onto the 3/8" mandrel."
Boy that makes sense.!!!

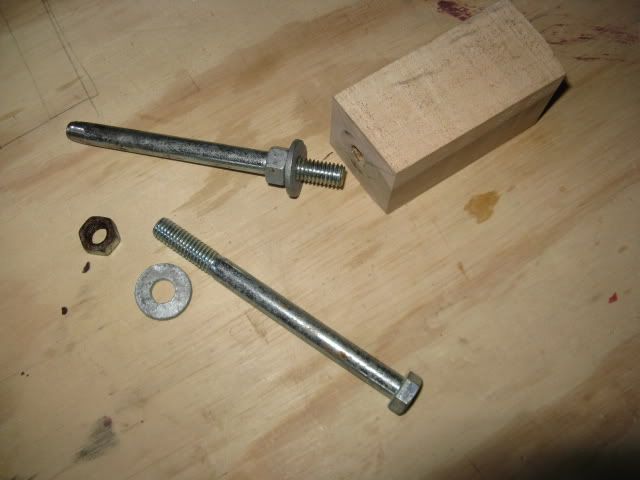

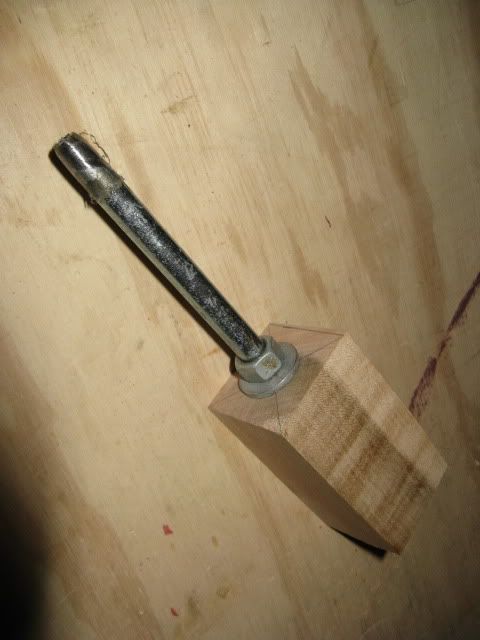

So I went to the next level of Macguiver and took a 3/8" x 16 bolt, sawed off the hex end and threaded it onto my stopper blank.

Any reason why this won't work?



....and if it does it's only short term.
I'm definitively ordering the 1" x 8 chuck to just spin onto the head piece...



thanks to Dusty.......

Learning more about tools everyday
tcleve4911 is offline
post #14 of 20 Old 01-16-2012, 05:53 PM
Senior Member

Join Date: Feb 2010
Location: Whittier, CA. USA
Posts: 344
View jlord's Photo Album My Photos
Just measure your stopper & turn it down to that diameter.

James
Whittier, CA.

Just because you can, doesn't always mean you should!
jlord is offline
post #15 of 20 Old 01-16-2012, 05:56 PM Thread Starter
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
Quote:
Originally Posted by jlord View Post
Just measure your stopper & turn it down to that diameter.
....and the reason I have a washer on there is that it is the same size as the stopper....so I'll just turn to that....without having to measure.

...but I hear ya jlord.

Learning more about tools everyday
tcleve4911 is offline
post #16 of 20 Old 01-17-2012, 06:49 AM
Member

New2Woodworking's Avatar

Join Date: Mar 2011
Location: Smithfield, Rhode Island
Posts: 96
View New2Woodworking's Photo Album My Photos
Quote:
Originally Posted by tcleve4911 View Post
So I called the guy at Woodcraft and asked him if I needed a collet to use the mandrel.
He said " No. You remove the jaws from the Nova chuck and it will squeeze tight onto the 3/8" mandrel."
Boy that makes sense.!!!

So I went to the next level of Macguiver and took a 3/8" x 16 bolt, sawed off the hex end and threaded it onto my stopper blank.



Any reason why this won't work?



....and if it does it's only short term.
I'm definitively ordering the 1" x 8 chuck to just spin onto the head piece...



thanks to Dusty.......
I have the same PSI chuck, its great, you just screw it on and its the perfect diameter for the stoppers. The only thing i would look out for is the drill bit they include, it was just a hair oversized and some blanks spun on the chuck.
New2Woodworking is offline
post #17 of 20 Old 02-09-2012, 05:25 PM
Junior Member

Join Date: Feb 2012
Posts: 7
View BradK12's Photo Album My Photos
This is all I use. I believe it is the most secure chuck out there for BS's. Use a 11/32" Brad Pt. bit though and not the included one.

http://www.pennstateind.com/store/PK-BS1-MJ.html
BradK12 is offline
post #18 of 20 Old 02-09-2012, 07:15 PM
Senior Member

Join Date: Aug 2010
Location: North Carolina
Posts: 1,021
View NCPaladin's Photo Album My Photos
Would this work?
The only problem I have with PSI is everything is for 1X8. Threaded over the spindle would be easier.
I believe it is thread at the rear for 1/8" rod.
I am assuming you keep tailstock support until the final cuts.
http://www.wttool.com/index/page/pro...Arbor+%28WT%29

They who can give up essential liberty to obtain a little temporary safety, deserve neither liberty nor safety. Benjamin Franklin
NCPaladin is offline
post #19 of 20 Old 02-09-2012, 07:51 PM
No Longer Here, BY CHOICE

Join Date: Nov 2010
Posts: 2,442
View BassBlaster's Photo Album My Photos
Question for you guys using the PSI mandrel. I purchased one a couple weeks ago and based on the reviews, I drilled with an 11/32 bit instead of the one supplied. Now I have a stopper turned that I cant get off because it is so tight. Even if I get it off of the mandrel without damaging it, how do you go about threading the hardware on when you really cant grab either piece with a tool without damaging them?

Are you guys only buying stopers from PSI? I know there are a couple here who use this mandrel but get ther stoppers from SS Niles. The bushing portion of this mandrel is 1/8" larger than the SS Niles stoppers so how are you getting the right diameter? I was thinking of putting a flat washer on before the blank but cant find a washer with an outside diameter of 13/16". Help please!!!!

RRBrown, knottscott and many others were banned, they didn't just leave. They were banned for standing up to the new owners that are destroying this site. Come join us all at woodworking chat, the best new woodworking site on the net!!
BassBlaster is offline
post #20 of 20 Old 02-09-2012, 07:52 PM
Senior Member

sawdustfactory's Avatar

Join Date: Jan 2011
Location: North Bend, WA
Posts: 4,801
View sawdustfactory's Photo Album My Photos
You can get spindle adapters. I got the 1"x8 for my midi lathe. When I bought my big lathe it has 1 1/4x8 spindle. Bought an adapter from Craft Supply USA ( think it was them) to allow me to use it on either lathe. Just a real bugger trying to them apart when done ;-)

That bowl was perfect right up until that last cut...
sawdustfactory is offline
