post #1 of 9 Old 11-18-2015, 04:24 PM Thread Starter
Junior Member

Join Date: Nov 2015
Posts: 3
View Doug E's Photo Album My Photos
Threaded corner blocks / "L" brackets

I need to join two pieces of plywood to form a "T", and be able to repeatedly assemble / disassemble the joint. After initial fabrication, I will only have access to the "top" surface of the "T". Thus, reassembly will be a blind operation.

I have tried using threaded inserts in the vertical piece of plywood, attaching the top piece using through-hole allen wrench head connector bolts. However, repeated tightening of the connector bolt eventually pulls the inserts from the vertical plywood.

I have also tried using barrel nuts in the vertical piece, but with repeated use they become sloppy and rotate, making blind reassembly very difficult.

I am now on a quest for something like a metal "L" with an integral nut that I can screw into the vertical piece of plywood near the top, and then access the nut through a hole in the "top" piece of plywood.

Can anyone here point me towards such a connector?

Thank you,

Doug

Last edited by Doug E; 11-18-2015 at 04:27 PM. Reason: I posted before completing. Fat fingers!!
Doug E is offline
Sponsored Links
Advertisement

post #2 of 9 Old 11-18-2015, 04:37 PM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 27,567
View woodnthings's Photo Album My Photos
it's not clear to me ....

I can't quite figure out what your arrangement is. Can you post a photo of the joint as you have it now?
Or a sketch showing the two pieces and the access hole....

The answer to your question will only be as detailed and specific as the question is detailed and specific. Good questions also include a sketch or a photo that illustrates your issue. (:< D)
woodnthings is online now
post #3 of 9 Old 11-18-2015, 04:42 PM
Senior Member

Join Date: Jul 2008
Location: Florida Panhandle
Posts: 12,468
View GeorgeC's Photo Album My Photos
Just go to one of your local hardware stores and buy the "L" brackets that you want. Or have a local machine shop make the size you want.

If the brackets are thick enough you can thread the bracket to accept a bolt. If not then weld a nut to the back of the bracket. You can even make two bolt holes per bracket. Make the hole in the top plywood slightly oversize so that you have a little leeway in lining the bolts up with the brackets/nuts. Use two brackets, one on each side of the bottom piece of plywood.

The brackets will be fastened to the bottom ply wood with through bolts. That is bolts long enough to go through both brackets and the plywood.

This whole assembly will be very secure and you will not have to worry about any screws pulling out of end grain of plywood.

George

Last edited by GeorgeC; 11-18-2015 at 04:45 PM.
GeorgeC is online now
Sponsored Links
Advertisement

post #4 of 9 Old 11-18-2015, 04:46 PM Thread Starter
Junior Member

Join Date: Nov 2015
Posts: 3
View Doug E's Photo Album My Photos
Quote:
Originally Posted by GeorgeC View Post
If the brackets are thick enough you can thread the bracket to accept a bolt.
George - Thanks. I was hoping to buy something ready made and not have to tap or weld the bracket. Especially since I need a dozen or so such brackets. But that may be what I end up doing!

Doug

Last edited by Doug E; 11-18-2015 at 04:48 PM.
Doug E is offline
post #5 of 9 Old 11-18-2015, 07:30 PM
Smart and Cool

Join Date: Feb 2014
Location: Oklahoma
Posts: 1,917
View shoot summ's Photo Album My Photos
Quote:
Originally Posted by Doug E View Post
George - Thanks. I was hoping to buy something ready made and not have to tap or weld the bracket. Especially since I need a dozen or so such brackets. But that may be what I end up doing!

Doug
Time is time, if the time invested in making these saves you time, then it all works out. Sometimes there isn't just an easy magic wand fix...

That said, I find some interesting hardware at JW Winco:

http://www.jwwinco.com/

Not really following your requirement either, but perhaps you could search for aluminum extrusions that may accomplish what you want.
shoot summ is offline
post #6 of 9 Old 11-19-2015, 02:22 AM
Village Idiot

epicfail48's Avatar

Join Date: Mar 2014
Location: Springfield MO
Posts: 4,941
View epicfail48's Photo Album My Photos
Im assuming that the threaded inserts were just screwed edgewise into the plywood, but have you tried epoxying them in place? Should keep them from pulling out, and the simplest solution is always the best

I need cheaper hobby
etsy.com/shop/projectepicfail
epicfail48 is offline
post #7 of 9 Old 11-19-2015, 05:16 PM
Senior Member

Join Date: Aug 2010
Location: Maine
Posts: 1,932
View Hammer1's Photo Album My Photos
With plywood,you can drill a pass hole in the end grain but don't expect enough structure for things like a threaded insert. You can use a cross dowel bolt. http://www.woodcraft.com/product/06K...ss-dowels.aspx

There are tons of knock down hardware fasteners that might fit your needs. https://www.google.com/search?q=knoc...dNAE6A#imgrc=_
Hammer1 is offline
post #8 of 9 Old 11-20-2015, 10:44 AM
Senior Member

NickDIY's Avatar

Join Date: Jul 2015
Location: Pennsylvania, USA
Posts: 436
View NickDIY's Photo Album My Photos

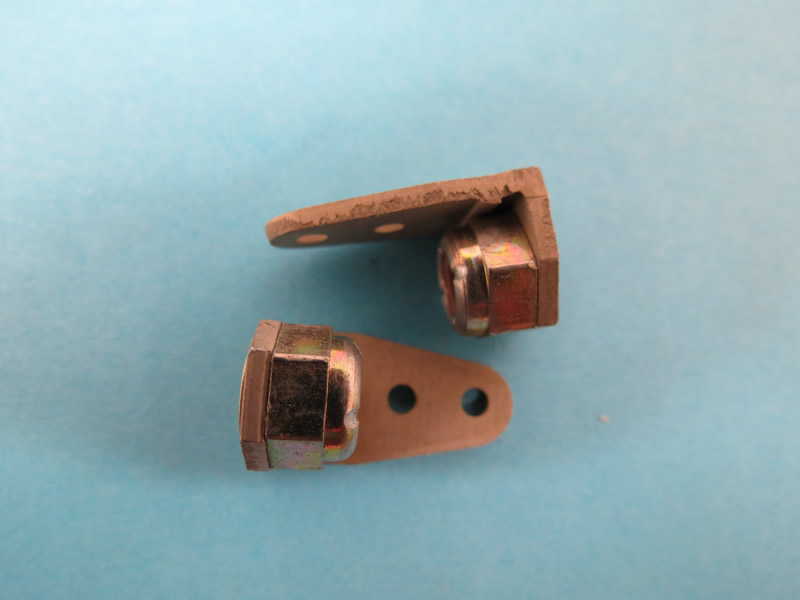

Is this what you're looking for?


Apparently they're called "Nut Plates" - in this case, "Right Angle Nut Plates". There's even a whole website dedicated to them - http://www.nutplates.com/.
NickDIY is offline
The Following User Says Thank You to NickDIY For This Useful Post:
Doug E (11-22-2015)
post #9 of 9 Old 11-22-2015, 11:40 AM Thread Starter
Junior Member

Join Date: Nov 2015
Posts: 3
View Doug E's Photo Album My Photos
Thanks to all for your suggestions. The right angle nut plates are exactly the kind of thing I was looking for. It's a bit surprising that the nut-plate website is focused on aircraft restoration!

What I finally settled on doing was essentially building my own using angle iron, and then tapping the iron rather than have a backing nut. Because the structure is rather large (a raised platform in the back of a cargo van) with integral storage compartments below the platform, the angle iron will provide additional support. I will will still use 3/4" baltic birch plywood for both the vertical supports as well as the platform itself, but because of the odd sheet sizes (60" by 60"), the angle iron can span the boundaries between the sheets.

Again, thanks so much. Your suggestions and comments were most helpful in pointing me toward my final approach. When I'm done (perhaps a month from now - mainly because I don't have a proper shop and have to work outside in between snow storms, with preference always given to hitting the ski slopes if it's a powder day), I'll post pictures if anyone is interested.

Doug
Doug E is offline
