At a loss..

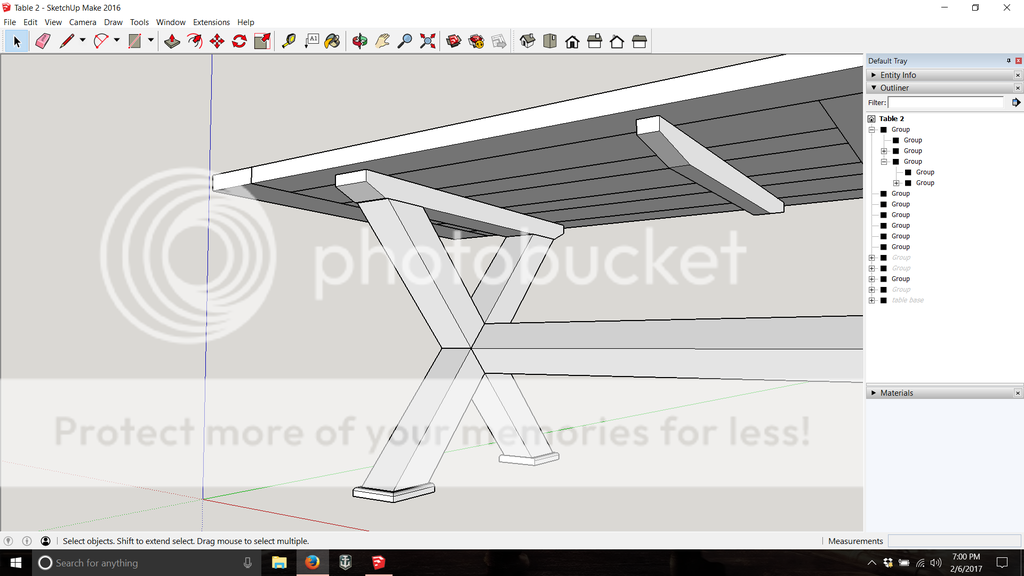

I'm trying to design a kitchen table for my wife and I'm at a loss on how to joint these pieces.



I've thought about using a half lap to joint the two legs together at the center, but I'm not sure how I should connect the stretcher to the center. Nothing has been built yet its all still pixels so I can change whatever I need to if someone has better ideas. Anyone?

Thanks Matthew
