Help me find this type of hinge.

I am building a cabinet very similar to the pictures I will link to.
I am trying to determine what type of hinge is being used to let the door pull/tilt out.
I have tried several but have not worked that well.
But I have never been able to find the exact one that cabinets like this use.

http://www.paperstreetantiques.com/w...9/IMG_6443.jpg






If no one has any ideas on what type of hinge is being used.
Could you make suggestions on how to achieve the same function that this hinge provides?
Thanks for any help.

Last edited by underoath23; 08-25-2013 at 01:06 PM.
underoath23 is offline
Sponsored Links
Advertisement

post #2 of 23 Old 08-25-2013, 07:39 AM
Senior Member

Join Date: Jul 2008
Location: Florida Panhandle
Posts: 12,474
View GeorgeC's Photo Album My Photos
If you look closely you will see there is no hinge. That "arm" whose tip is shown in one picture is the mechamism that allows the "drawer" to open and shut.

George
GeorgeC is offline
post #3 of 23 Old 08-25-2013, 07:57 AM
Old School

cabinetman's Avatar

Join Date: Jul 2007
Location: So. Florida
Posts: 24,027
View cabinetman's Photo Album My Photos



If you could edit your post and resize your picture from 1944 px wide to 800 px wide, it would fit the post better. As it is now it's necessary to scroll right and left.

The "hinge" you see is likely just a control arm to limit the distance the unit comes out. That "tipping" action can be done with ordinary euro hinges on the bottom, and using a lid stay for the "tipping distance". It's a common way I make tip out hamper fronts.









.
cabinetman is offline
Sponsored Links
Advertisement

post #4 of 23 Old 08-25-2013, 12:54 PM Thread Starter
Junior Member

Join Date: Aug 2013
Posts: 5
View underoath23's Photo Album My Photos
I dont think that the euro hinge will work. This is because, like in the picture you can see that the bottom joint between the bottom and front of the shelf actually rotates on the sides of it allowing the bottom corner to swing back inside the unit. With the euro joint, I do not see a good way to sink the joint into the shelf and allow it to fully close. The bottom and front move as one unit. This shelf will be holding vinyl records so the 90 degree angle has to be kept at all times. I hope this is making sense. I dont know how to resize an image in the tags so I just made it a link at the top. Thanks for the suggestions so far.
underoath23 is offline
post #5 of 23 Old 08-25-2013, 01:05 PM Thread Starter
Junior Member

Join Date: Aug 2013
Posts: 5
View underoath23's Photo Album My Photos
I added some new pictures above to maybe help out.
underoath23 is offline
post #6 of 23 Old 08-26-2013, 06:49 PM Thread Starter
Junior Member

Join Date: Aug 2013
Posts: 5
View underoath23's Photo Album My Photos
No Ideas?
underoath23 is offline
post #7 of 23 Old 08-26-2013, 07:29 PM
Old School

cabinetman's Avatar

Join Date: Jul 2007
Location: So. Florida
Posts: 24,027
View cabinetman's Photo Album My Photos
Quote:
Originally Posted by underoath23 View Post
I dont think that the euro hinge will work. This is because, like in the picture you can see that the bottom joint between the bottom and front of the shelf actually rotates on the sides of it allowing the bottom corner to swing back inside the unit. With the euro joint, I do not see a good way to sink the joint into the shelf and allow it to fully close.
Picture the door/front hinged with a euro hinge to the floor of the cabinet. Then, an "L" shape...has a front and bottom, attaches to the back of the door.. The bottom is a few inches short of the bottom of the cabinet (above the hinges). The door tips out, and closes back in. Works fine for a hamper, will work for a divided record bin.






.
cabinetman is offline
post #8 of 23 Old 08-26-2013, 11:04 PM Thread Starter
Junior Member

Join Date: Aug 2013
Posts: 5
View underoath23's Photo Album My Photos
Ok, I see that. However, I also think that a hamper is a little different weight wise. The euro hinge would not allow you to open the door and leave it since the weight of the records would be outside the cabinet causing it to tip forward wouldnt it?

Last edited by underoath23; 08-26-2013 at 11:45 PM.
underoath23 is offline
post #9 of 23 Old 08-27-2013, 09:12 AM
Senior Member

Join Date: Apr 2010
Location: Near Boston, Massachusetts
Posts: 1,530
View amckenzie4's Photo Album My Photos
If you want the bottom to slide, you need to provide something for it to slide on. I have no idea if this would work, since I've only spent about two minutes thinking about it, but it might at least provide a starting point.

1) Put drawer slides on the bottom. The kind that mount under the drawer would be best. Rather than fastening them directly to the bin, fasten a block to the slide, and a hinge to the block (or a hinge directly to the slide, if you can figure out how). That lets the drawer tilt and slide.

2) The "hinge" on the side appears to be three parts: a flat plate on the inside wall of the cabinet, and two arms that cross. If you want the same effect, you can probably build something out of steel bar-stock. It would take some fiddling to find the right arm length and placement, but I'm sure you can manage it. Or you can just use a chain at each side to control how far the thing can lower: that sounds easier to me, and if you added in a pulley and some counterweights it might make the bins easier to close.
amckenzie4 is offline
post #10 of 23 Old 08-27-2013, 10:06 AM
Old School

cabinetman's Avatar

Join Date: Jul 2007
Location: So. Florida
Posts: 24,027
View cabinetman's Photo Album My Photos
Quote:
Originally Posted by underoath23 View Post
Ok, I see that. However, I also think that a hamper is a little different weight wise. The euro hinge would not allow you to open the door and leave it since the weight of the records would be outside the cabinet causing it to tip forward wouldnt it?
Actually, it's the opposite. The load is on the back of the door behind the pivoting of the hinge. The door has a load to open and when rotated outward far enough to get the weight past the vertical line of the hinge the weight transfers outward. Until that point, the door will have the weight to make it want to close.

To keep the door open past the line of the hinge takes a restraint stay, while trying to keep it open when it wants to close doesn't really allow enough opening clearance to have a good access if you need it slightly open.






.
cabinetman is offline
post #11 of 23 Old 08-27-2013, 12:50 PM
Senior Member

Brian T.'s Avatar

Join Date: Dec 2012
Location: McBride, BC
Posts: 2,648
View Brian T.'s Photo Album My Photos
I'd look in two places.
1. Lee Valley. I got a complete set of 1923 icebox hardware which was a perfect match for my icebox which had some ugly mods over the years. Oak. $29.95. The original price tag is still in it!
2. Home Depot. They have some sort of a deal with a cabinet hardware outfit who make and/or supply the weirdest gizmos which I would not even guess how to install. Almost none of it is in the store, but there should be their catalog floating around in that part of the store.
Brian T. is offline
post #12 of 23 Old 01-24-2014, 02:08 PM
Senior Member

Join Date: Jan 2014
Location: nyc
Posts: 142
View OldEd's Photo Album My Photos
Question

I'm not really sure what the problem is. I've seen the same sort of action using trunnions, one on each side. The forward tilt is stopped by the trunnion being stopped on the "back" end.

It stays open because the weight is forward of the "hinge point" (the putative "center" of the trunnion) when fully open.

It stays closed because the weight is behind the "hinge point" whe the "drawer" is closed...

Preferably these conditions are met when the "drawer" is empty, although the first one I made (sort-of - it didn't work too well, but then I was only 11 years old) needed to have something in the drawer to stay in the desired position...


Annoying.

Also embarrassing.

Some 60 years ago now it was a pluperfect BITCH cutting the trunnions. Today... with a router... and a circle/arc cutting jig... a lead pipe cinch.

Good luck. Have fun.

Last edited by OldEd; 01-24-2014 at 02:11 PM.
OldEd is offline
post #13 of 23 Old 01-24-2014, 02:10 PM
Senior Member

Join Date: Jan 2014
Location: nyc
Posts: 142
View OldEd's Photo Album My Photos
sorry - wrong button
OldEd is offline
post #14 of 23 Old 06-13-2014, 01:46 PM
Junior Member

Join Date: Jun 2014
Location: Los Angeles, California
Posts: 4
View Ijpdesign's Photo Album My Photos
I am looking for the same hinges

Did you ever find a supplier for these dual acting hinges?
Ijpdesign is offline
post #15 of 23 Old 06-13-2014, 01:57 PM
Old School

cabinetman's Avatar

Join Date: Jul 2007
Location: So. Florida
Posts: 24,027
View cabinetman's Photo Album My Photos



We have an introduction section where you can say a few words about yourself. If you fill out your profile in your "User Control Panel", you can list any hobbies, experience, occupation, or if retired…from what, or other facts. You can also list your general geographical location which would be a help in answering some questions. In doing that your location will show under your username when you post.

Quote:
Originally Posted by Ijpdesign View Post
Did you ever find a supplier for these dual acting hinges?
Somehow the link got switched. No sunglasses.






.
cabinetman is offline
post #16 of 23 Old 06-13-2014, 03:57 PM
Junior Member

Join Date: Jun 2014
Location: Los Angeles, California
Posts: 4
View Ijpdesign's Photo Album My Photos
Honestly I have no idea how the word hinge even became a link I was just referring to the hinges in this thread
Ijpdesign is offline
post #17 of 23 Old 06-13-2014, 04:29 PM
Old School

cabinetman's Avatar

Join Date: Jul 2007
Location: So. Florida
Posts: 24,027
View cabinetman's Photo Album My Photos
Quote:
Originally Posted by Ijpdesign View Post
Honestly I have no idea how the word hinge even became a link I was just referring to the hinges in this thread
It's called 'hyperlinking'...one of my special powers.






.
cabinetman is offline
post #18 of 23 Old 06-13-2014, 06:03 PM
Senior Member

Join Date: Sep 2011
Posts: 26,073
View Steve Neul's Photo Album My Photos

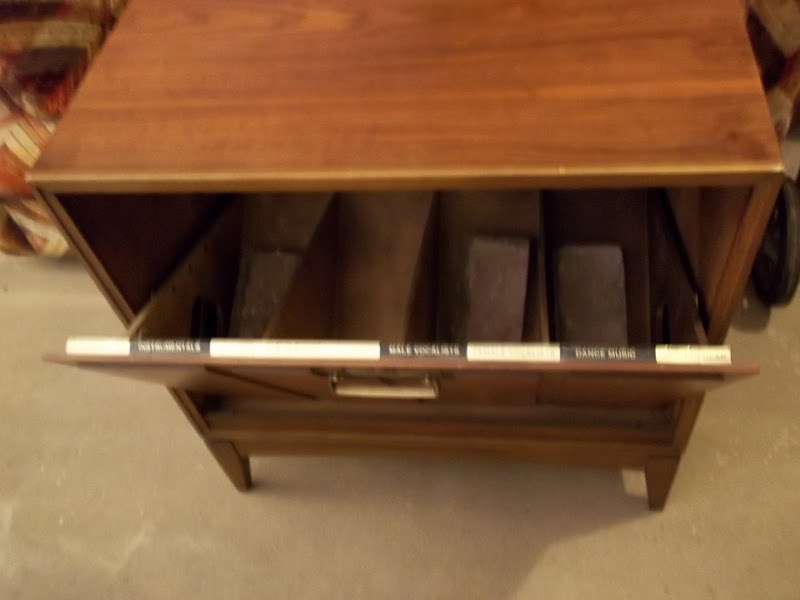

I've only seen one and I never new the name for it. The hinge is shaped like a triangle with the pivot on one corner. Most furniture I've seen made like that just used a hardwood dowel to pivot on like the one shown in the picture.
