Dust collector remote control? / blast gates - Woodworking Talk - Woodworkers Forum
 3Likes
  • 1 Post By ChuckBarnett
  • 2 Post By sunnybob

Thread Tools Display Modes
post #1 of 20 Old 05-11-2016, 11:34 AM Thread Starter
Senior Member

Join Date: Jan 2013
Location: Arlington, WA
Posts: 512
View ChuckBarnett's Photo Album My Photos
Dust collector remote control? / blast gates

I'm installing ducting for my small shop system and can see the light at the end of the tunnel!

I will soon buy a remote for my 240 v., 2 hp Grizzly collector. I been told the "Long Ranger" is a good choice. Grizzly has one for less money that may be good as well. This isn't a production shop by any means and I don't need top of the line stuff. I welcome your input.

After looking at some plastic blast gates somebody gave me, I now understand the need for "self-cleaning" gates! These don't close because there is a buildup of sawdust in the groove into which the gate must slide! (I can't see a good way to clean them, either.) There are on the market aluminum blast gates and ?? I'll need 10 total. Any good recommendations?

Bless y'all!

Chuck Barnett
ChuckBarnett is offline
Sponsored Links
Advertisement

post #2 of 20 Old 05-11-2016, 12:15 PM
Senior Member

michaelpugh's Avatar

Join Date: Dec 2013
Location: Fayetteville, Ar
Posts: 510
View michaelpugh's Photo Album My Photos
I bought both from Amazon about a year ago and they have been working great for me. However Ryan on here bought his bast gates from somewhere else and they were cheaper and he was happy with them. I'll see if I can find that thread. Here are links to my remote and gates
https://www.amazon.com/gp/aw/d/B0000...?ie=UTF8&psc=1
https://www.amazon.com/gp/aw/d/B0000...?ie=UTF8&psc=1

wish I had a cool line like everyone else...
michaelpugh is offline
post #3 of 20 Old 05-11-2016, 12:20 PM
Senior Member

michaelpugh's Avatar

Join Date: Dec 2013
Location: Fayetteville, Ar
Posts: 510
View michaelpugh's Photo Album My Photos
http://www.rockler.com/4-metal-blast-gates
Here they are.

wish I had a cool line like everyone else...
michaelpugh is offline
Sponsored Links
Advertisement

post #4 of 20 Old 05-11-2016, 01:00 PM
Member

Join Date: Apr 2016
Location: Southborough, Massachusetts
Posts: 33
View Johnnie_dr's Photo Album My Photos
Hey Chuck,

I bought some "cheaper" remote systems a few years ago from Amazon ($25.00 range) from my 2HP HF DC. They worked just OK, but most of the time I had to actually point the remote clicker toward the receiving unit to get it to work. Not a good thing if your receiver is tucked away in a corner or in another room.

I bought the Lone Ranger a last year and it works great. I have it hanging from a ceiling joist, central to my 300sq ft basement shop, and when needed, just click it on or off. The receiver is in another room where i keep my DC and compressors.

Well worth the extra bucks.

Johnnie
Johnnie_dr is offline
The Following User Says Thank You to Johnnie_dr For This Useful Post:
ChuckBarnett (05-11-2016)
post #5 of 20 Old 05-11-2016, 01:39 PM Thread Starter
Senior Member

Join Date: Jan 2013
Location: Arlington, WA
Posts: 512
View ChuckBarnett's Photo Album My Photos
Quote:
Originally Posted by michaelpugh View Post
Aside from price, Michael, why do you say the Rockler ones are better than those you had bought?

Thanks,

Chuck Barnett
ChuckBarnett is offline
post #6 of 20 Old 05-11-2016, 10:04 PM
Senior Member

Join Date: Jul 2014
Location: Seattle area
Posts: 334
View jdonhowe's Photo Album My Photos
+1 on the Long Ranger- rugged and absolutely reliable.
jdonhowe is offline
The Following User Says Thank You to jdonhowe For This Useful Post:
ChuckBarnett (05-11-2016)
post #7 of 20 Old 05-11-2016, 10:27 PM
Sawdust Creator

ryan50hrl's Avatar

Join Date: Jun 2012
Posts: 8,047
View ryan50hrl's Photo Album My Photos
Quote:
Originally Posted by michaelpugh View Post

These are the ones I got, and I've been relatively happy with them.

The tools don't make the craftsman....
ryan50hrl is offline
post #8 of 20 Old 05-11-2016, 10:51 PM Thread Starter
Senior Member

Join Date: Jan 2013
Location: Arlington, WA
Posts: 512
View ChuckBarnett's Photo Album My Photos
Good to know. :)

Thank you for taking the time to ejumacate me! I will likely go with the Long Ranger and the Rockler blast gates.
ChuckBarnett is offline
post #9 of 20 Old 05-11-2016, 11:11 PM Thread Starter
Senior Member

Join Date: Jan 2013
Location: Arlington, WA
Posts: 512
View ChuckBarnett's Photo Album My Photos
Quote:
Originally Posted by Johnnie_dr View Post
I bought the Lone Ranger a last year and it works great. I have it hanging from a ceiling joist, central to my 300sq ft basement shop, and when needed, just click it on or off. The receiver is in another room where i keep my DC and compressors.

Well worth the extra bucks.

Johnnie
Like your shop, Johnnie, mine is cozy - a single bay of a 3-bay garage, which calculates to be just over 250 sq. ft.. I am putting the dust collector on the back side of a wall and my compressor is on that side as well. Not sure if I'll mount the remote or what, but that's a good idea as well.

Chuck Barnett
ChuckBarnett is offline
post #10 of 20 Old 05-11-2016, 11:55 PM
Senior Member

michaelpugh's Avatar

Join Date: Dec 2013
Location: Fayetteville, Ar
Posts: 510
View michaelpugh's Photo Album My Photos
Quote:
Originally Posted by ChuckBarnett View Post
Aside from price, Michael, why do you say the Rockler ones are better than those you had bought?



Thanks,



Chuck Barnett

No reason why the rockler is better than the ones I bought. Mine have been great. I just knew Ryan had bought his cheaper and we're happy with them.
Michael

wish I had a cool line like everyone else...
michaelpugh is offline
post #11 of 20 Old 05-12-2016, 08:22 AM
Sawdust Creator

ryan50hrl's Avatar

Join Date: Jun 2012
Posts: 8,047
View ryan50hrl's Photo Album My Photos
Quote:
Originally Posted by michaelpugh View Post
No reason why the rockler is better than the ones I bought. Mine have been great. I just knew Ryan had bought his cheaper and we're happy with them.
Michael

I bought the rockler ones as they were 50% off, no other reason.

The tools don't make the craftsman....
ryan50hrl is offline
post #12 of 20 Old 05-12-2016, 10:53 AM
Senior Member

Join Date: Jul 2014
Location: WNC
Posts: 224
View UnisawGuy's Photo Album My Photos
Blast gates collect less dust in the gate groove when installed horizontally. If the groove clogs then, the CFMs and air velocity are not sufficient.
UnisawGuy is offline
The Following User Says Thank You to UnisawGuy For This Useful Post:
ChuckBarnett (05-12-2016)
post #13 of 20 Old 05-12-2016, 02:42 PM Thread Starter
Senior Member

Join Date: Jan 2013
Location: Arlington, WA
Posts: 512
View ChuckBarnett's Photo Album My Photos
So I just ordered the Long Ranger and blast gates from Rockler.

Thanks, again, all!

Chuck Barnett
michaelpugh likes this.
ChuckBarnett is offline
post #14 of 20 Old 12-16-2016, 01:23 AM
Junior Member

Join Date: Jul 2012
Location: Texas
Posts: 10
View coxhaus's Photo Album My Photos
I am in the process of looking for a 240 volt remote control for my DC I am building. How does the iVAC Pro switch compare to the Lone Ranger?

I have a 2 HP Baldor motor which pulls 11 or 12 amps. My DC is located in a different room so the remote needs to work through a wall.

Last edited by coxhaus; 12-16-2016 at 02:00 AM.
coxhaus is offline
post #15 of 20 Old 12-16-2016, 08:13 AM
Member

Join Date: Dec 2016
Posts: 90
View mhhickma's Photo Album My Photos
Right now in the stores there is Christmas Light stuff. Rummage around there and you will find a remote plug that is for Christmas lights. I bought one at home depot for $10. It is 15 amp and 110 v with two plugs. Remote works around my shop for my vac just fine.
mhhickma is offline
post #16 of 20 Old 12-16-2016, 11:26 AM Thread Starter
Senior Member

Join Date: Jan 2013
Location: Arlington, WA
Posts: 512
View ChuckBarnett's Photo Album My Photos
I have the Lone Ranger for my 2 horse Grizzly and really like it.

Sent from my SM-G930V using Tapatalk
ChuckBarnett is offline
post #17 of 20 Old 12-16-2016, 11:27 AM Thread Starter
Senior Member

Join Date: Jan 2013
Location: Arlington, WA
Posts: 512
View ChuckBarnett's Photo Album My Photos
And I should have said that my collector is in another room as well.

Sent from my SM-G930V using Tapatalk
ChuckBarnett is offline
post #18 of 20 Old 12-16-2016, 12:30 PM
Senior Member

Join Date: Sep 2016
Location: Cyprus
Posts: 365
View sunnybob's Photo Album My Photos

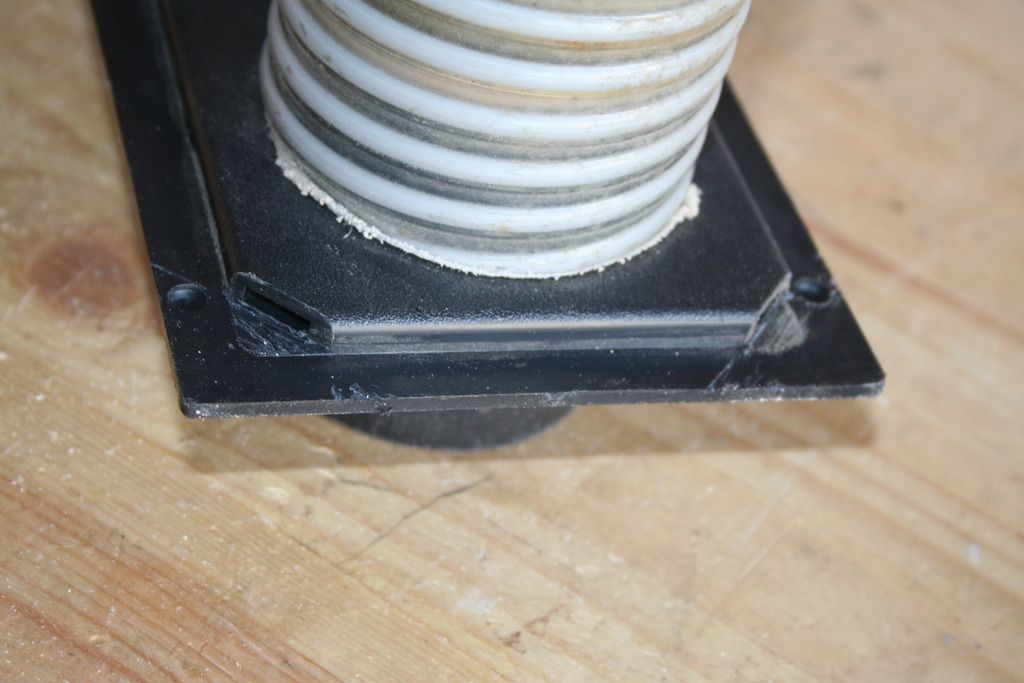

I cured the problem of my plastic blast gates jamming open.
Just cut the corners off the bottom of the slides and the slide just pushes the dust out of the holes.
ChuckBarnett and JamesTinKS like this.
sunnybob is offline
post #19 of 20 Old 12-17-2016, 02:54 PM
Senior Member

Join Date: Jul 2014
Location: Seattle area
Posts: 334
View jdonhowe's Photo Album My Photos
coxhaus- re: Long Ranger vs iVac. I have the LR, which works great- has a long range (duh!), and is bullet proof. I don't know a lot about the iVac, but it is a system which can automate turning on the collector, if you have a sensor (iVac Pro Tool) attached to your saw, which remotely turns on the switch attached to your collector when you power up your saw.

As I see it, the iVac is nice if you have trouble locating your remote control, or forget to turn it on, and have lots of money to spend. You need a sensor for every tool you have connected to your collector, so the cost really jumps up. As an alternative, you can buy a hand held remote, in which case you're basically doing the same as the Long Ranger, at a higher price.

Since both use RF signals, I don't think the range or working through walls would be any different between the two. (iVac says 40 foot range with remote, LR says 50 ft)

BTW, those cheap Christmas light remotes wouldn't work at all for your DC. I do have one, though, which works fine for my ceiling mounted air cleaner.
jdonhowe is offline
post #20 of 20 Old 12-18-2016, 09:27 AM
Junior Member

Join Date: Jul 2012
Location: Texas
Posts: 10
View coxhaus's Photo Album My Photos
The iVAC Pro Switch is a stand alone unit more like the LR. The iVAC system does include different units which can switch a DC on when a power tool is turned on. The iVAC system also has options for automatically switching blast gates on. I am just looking at the iVAC Pro Switch 240 volt to remote control my DC with the remote which comes with the unit. I am wondering which unit has better soft start features. I have heard the iVAC has very heavy duty soft start features. Is it better than the Lone Ranger 240 volt unit? I wonder if anybody has compared them?
Sounds like the remote features are about the same. Thanks for answering that jdonhowe.
coxhaus is offline
