Home made pocket hole plugs

Hi everyone
l love using pocket hole screws. They are quick, easy to use and make a strong connection. The down side is that you normally can't use them for exposed work mostly because they are kind of ugly.
Well on the latest project that I'm working on (custom closets) there are a few places that I have to use them in an exposed area so I had to figure out a way to make plugs (out of Jatoba) to fill in those ugly holes. Here is what I came up with.
I start by turning a 3/8" dowel out of 1/2" scrap. I use a 3/8" open end wrench as a reference to get the dowel to uniform size.


Next step is to drill a pocket hole in a scrap piece of wood and insert a screw( to drive out the cut plug).


Insert the dowel into the pocket hole until it bottoms out against the screw head.


Set the fence on the bandsaw to just clear the edge of the dowel jig and saw off the dowel.


I use a belt sander to sand the plug flush with the jig and pop it out with the exposed screw.


Here is the installed plug in place on the bottom shelf of the cabinet.


Hope some of you can use this little tid-bit of info.
wdkits1 is offline
The Following 4 Users Say Thank You to wdkits1 For This Useful Post:
JMC'sLT30 (11-06-2010), Locodcdude (02-20-2011), mackem (04-12-2011), thegrgyle (02-21-2011)
Sponsored Links
Advertisement

post #2 of 15 Old 08-21-2009, 09:00 PM
Senior Member

Join Date: Nov 2008
Location: Park Forest, Il
Posts: 775
View Julian the woodnut's Photo Album My Photos
Thanks for the tip. Your idea solves the problem of making the plugs out of any type of wood, and it's such a simple idea.
Julian the woodnut is offline
post #3 of 15 Old 09-27-2010, 12:26 AM
Junior Member

Join Date: Mar 2007
Location: Charlotte,N.C.
Posts: 8
View eezlock's Photo Album My Photos
home made pocket hole plugs

Good tip Mike, I kinda did the same thing a couple of weeks ago myself.
The only thing was, I made the plug from a dowel I had on hand and cut it with one of those Japanese type flexible blade saws...worked ok
for a test plug...but not as slick as yours though.......
eezlock is offline
Sponsored Links
Advertisement

post #4 of 15 Old 09-27-2010, 01:02 AM
Ole Woodworker

BigJim's Avatar

Join Date: Sep 2008
Location: Chattanooga, Tennessee
Posts: 4,536
View BigJim's Photo Album My Photos
Thanks Mike, I like your way better than the way I was doing it. I inserted the dowel in the pocket hole jig and cut down the face of the jig and there is the plug. I like your way better. Another way I did was to set up a jig on my miter saw but a lot of times the plug will go flying so your way is the best I have seen.

http://www.diychatroom.com/
The Other
BigJim

If you do what you've always done, you will get what you've always got.
BigJim is offline
post #5 of 15 Old 10-25-2010, 07:04 PM
Junior Member

Join Date: Oct 2010
Posts: 4
View Kevin Thomas's Photo Album My Photos
Thanks for that tip Mike. I am going to use it when I get a chance. I too like pocket hole screws, but I have just resorted to using them in hidden locations in the past. Now I know I can put them in exposed parts of the project I am working on.
Kevin Thomas is offline
post #6 of 15 Old 10-26-2010, 09:30 AM
Senior Member

Join Date: Apr 2007
Location: Powell River British Columbia, Canada
Posts: 2,278
View Gerry KIERNAN's Photo Album My Photos
Very clever Mike. Thanks for sharing.

Gerry
Gerry KIERNAN is offline
post #7 of 15 Old 10-26-2010, 11:02 AM
Senior Member

Roger Newby's Avatar

Join Date: May 2009
Location: Syracuse, Nebraska
Posts: 506
View Roger Newby's Photo Album My Photos
Great idea that everyone can use, Thanks Mike.
Roger Newby is offline
post #8 of 15 Old 11-05-2010, 10:39 AM
Junior Member

Join Date: Aug 2010
Posts: 2
View mickeyw3340's Photo Album My Photos
Hey Honey...I need to go buy a lathe!!!!!!
mickeyw3340 is offline
post #9 of 15 Old 11-05-2010, 09:34 PM
Senior Member

firehawkmph's Avatar

Join Date: Apr 2008
Location: Near Cleveland, Ohio
Posts: 5,022
View firehawkmph's Photo Album My Photos
Quote:
Originally Posted by mickeyw3340 View Post
Hey Honey...I need to go buy a lathe!!!!!!
Hey Mickey,
Try one of these:
http://www.leevalley.com/us/wood/page.aspx?c=&p=52401

I have the 3/8" cutter. They work great and are a lot of fun to use. You stick the cutter in a vice and rip a length of wood 1/2" square. Take a cordless drill and use a 12 pt. socket and adapter and stick the wood in the socket. Stick the other end in the cutter and hit the drill and give it a little push, then look out. I've made 8' dowels with this thing. It's like sharpening the ultimate pencil.
Mike Hawkins
Attached Images

firehawkmph is offline
The Following User Says Thank You to firehawkmph For This Useful Post:
thegrgyle (02-21-2011)
post #10 of 15 Old 02-20-2011, 08:36 PM
Member

Cedar fly's Avatar

Join Date: Feb 2011
Posts: 89
View Cedar fly's Photo Album My Photos
Good idea. Thanks for sharing
Cedar fly is offline
post #11 of 15 Old 02-21-2011, 12:13 PM
Hobbyist wood-butcher

thegrgyle's Avatar

Join Date: Jan 2011
Location: Saint Charles, IL
Posts: 1,556
View thegrgyle's Photo Album My Photos
Quote:
Originally Posted by mickeyw3340 View Post
Hey Honey...I need to go buy a lathe!!!!!!
Yet ANOTHER reason to need a lathe

Quote:
Originally Posted by firehawkmph View Post
Hey Mickey,
Try one of these:
http://www.leevalley.com/us/wood/page.aspx?c=&p=52401

I have the 3/8" cutter. They work great and are a lot of fun to use. You stick the cutter in a vice and rip a length of wood 1/2" square. Take a cordless drill and use a 12 pt. socket and adapter and stick the wood in the socket. Stick the other end in the cutter and hit the drill and give it a little push, then look out. I've made 8' dowels with this thing. It's like sharpening the ultimate pencil.
Mike Hawkins
Thanks for posting this..... I guess I don't need the lathe after all, at least for this...................

Fabian

I used to be fairly indecisive, but now....... I'm not so sure.
thegrgyle is offline
post #12 of 15 Old 04-06-2011, 09:49 AM
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
Old thread- making dowels

You guys always come up with innovative ideas how to get stuff done
This was my primitive way without a lathe or a Leevalley tool

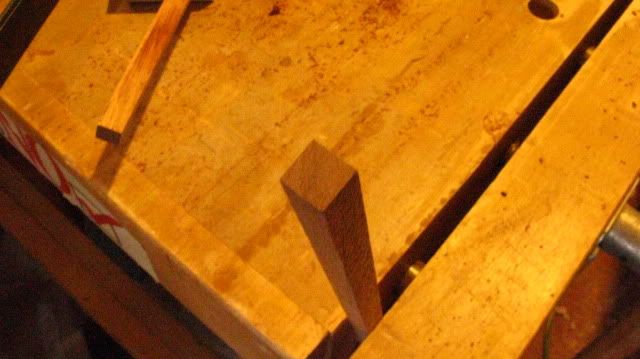

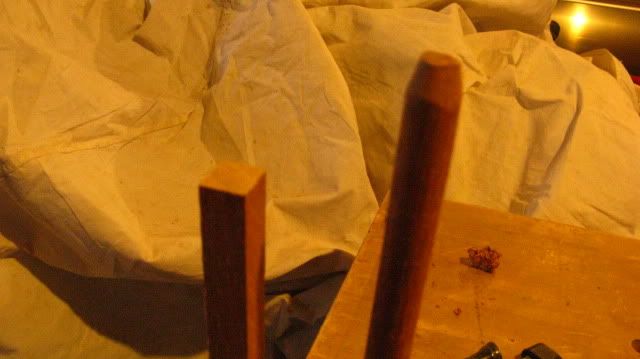

Started by ripping 1/2" pieces

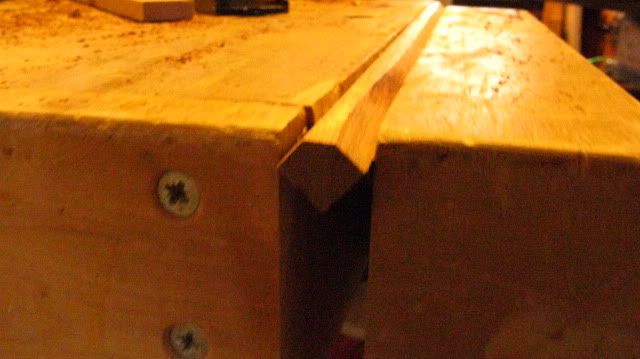

Planed the corners off



Tapered the end

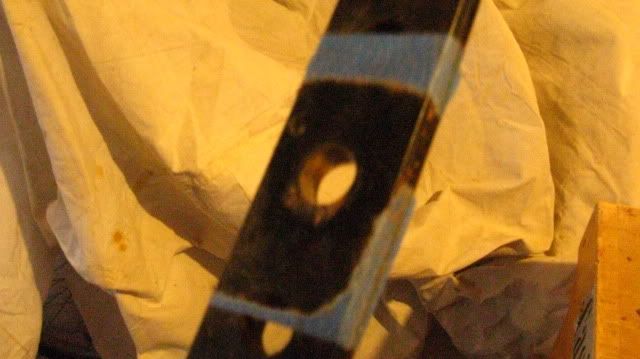

Drilled a 3/8" hole in a piece of 1/4" steel



Clamped the steel into the vise and hammered the sruare peg thru the round hole

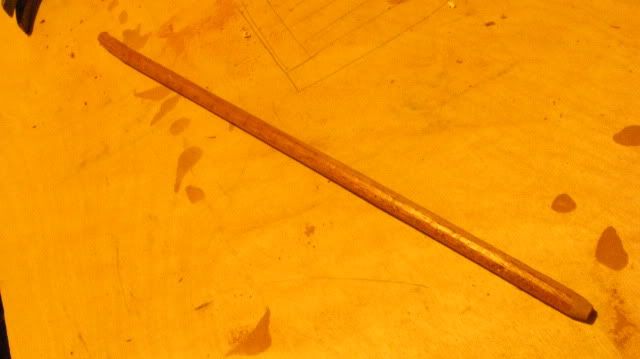

I now have a primitive, 3/8" dowel

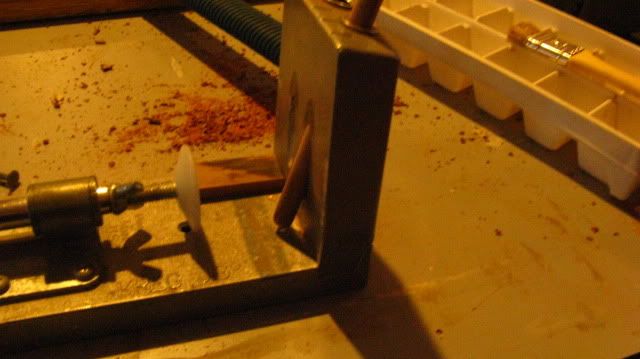

Stuck the dowel into the old fashioned metal Kreg Jig. (this gives you a hint how long I've been using a Kreg Jig......)

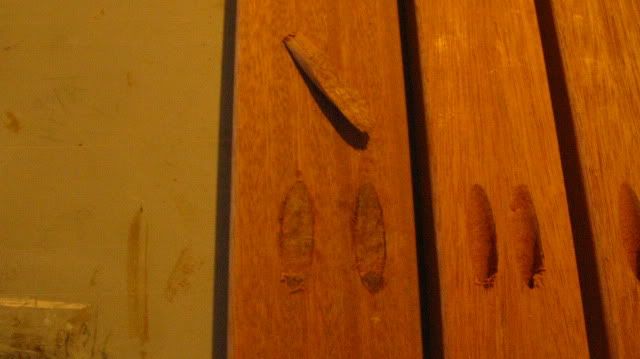

Cut'em off and they worked good.



Not as refined as you guys but I made it work....BTW .....I now have a lathe

Learning more about tools everyday
tcleve4911 is offline
The Following 4 Users Say Thank You to tcleve4911 For This Useful Post:
BigJim (04-06-2011), doc70er (04-06-2011), mackem (04-12-2011), thegrgyle (04-07-2011)
post #13 of 15 Old 04-25-2011, 07:29 PM
Member

Join Date: Apr 2011
Posts: 33
View Scubadaveojr's Photo Album My Photos
That ISA good idea, I will make not of that... Thanks for spreading the knowledge
Scubadaveojr is offline
post #14 of 15 Old 04-25-2011, 08:49 PM
Old School

cabinetman's Avatar

Join Date: Jul 2007
Location: So. Florida
Posts: 24,027
View cabinetman's Photo Album My Photos
Just think...with traditional joinery there wouldn't be all this hassle for a cover up, and faster too.








.
cabinetman is offline
post #15 of 15 Old 08-18-2011, 06:10 PM
Junior Member

Join Date: Aug 2011
Posts: 15
View 4skinz80's Photo Album My Photos
Really good tip... Ty I will be using this.
