Walnut Side Table

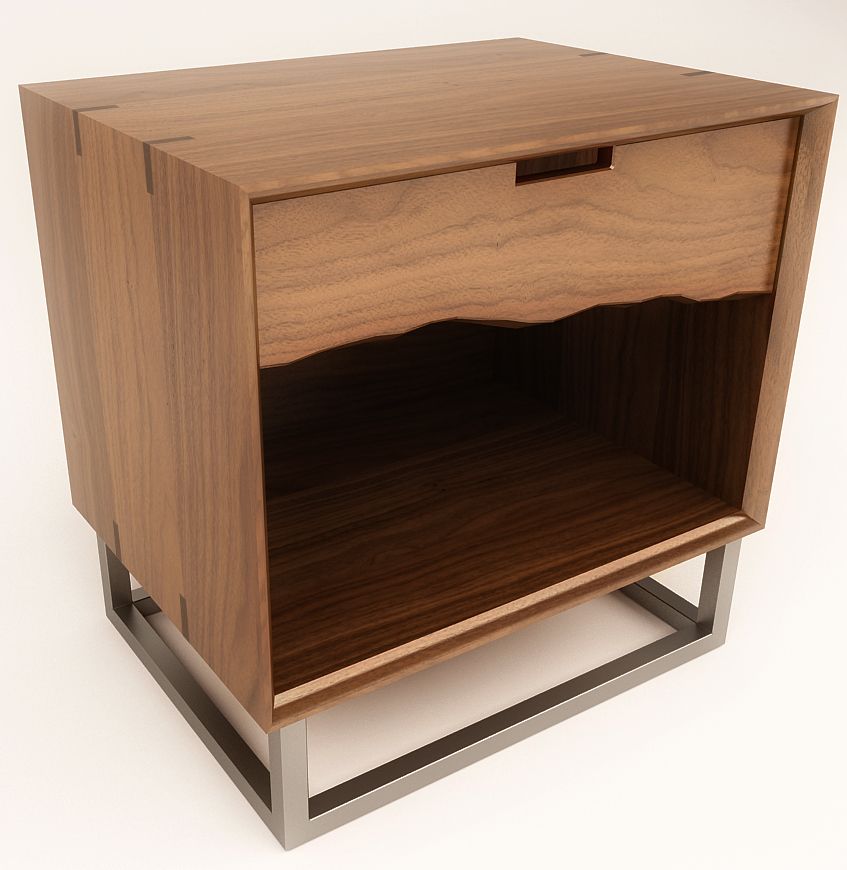

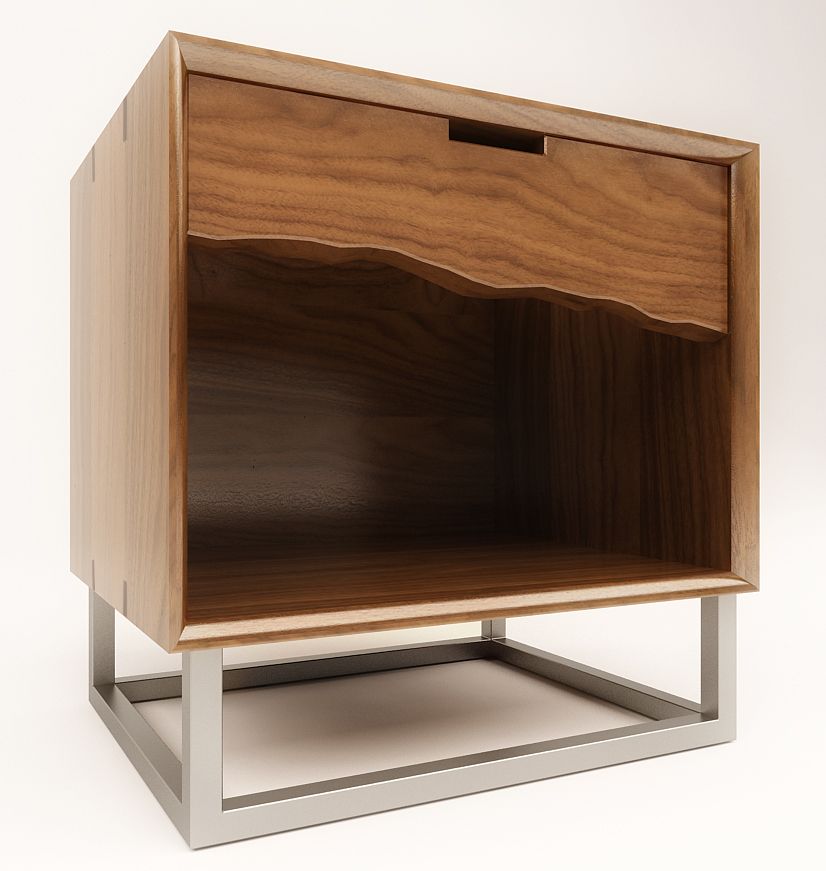

I decided to try my hand at building a side table for my next project. I attached a couple of renderings that I did showing the finished product. The sides, top and bottom will be mitered at 45 degrees with a spline cut in at the 6" mark and again at the 12" mark since the depth of the table is 18" (The splines are represented much darker than the walnut in both images). I was also thinking of cutting in a spline through the entire depth (18 inches) of the miter for extra stability? The splines will be hidden within the miter. Is this practical or will the two splines that I have be sufficient enough for this type of piece? Thanks for the help in advance.



Last edited by Jophus14; 08-28-2015 at 07:46 PM.
Jophus14 is offline
Sponsored Links
Advertisement

post #2 of 16 Old 08-28-2015, 07:48 PM Thread Starter
Senior Member

Join Date: Aug 2012
Location: Illinois
Posts: 109
View Jophus14's Photo Album My Photos
I just realized that this post may need to be moved in the Design & Plans thread. Sorry.
Jophus14 is offline
post #3 of 16 Old 08-28-2015, 07:59 PM
Senior Member

Join Date: May 2009
Location: northern illinois
Posts: 845
View mikeswoods's Photo Album My Photos
That is just a rendering?

It looks like a photo---I look forward to seeing the work in progress---

If you wish, I can move this for your---Project showcase would be good if you will be building that--
Few look into the design forum---most members use 'todays posts' and don;t pay a lot of attention to what forum a thread is in.
mikeswoods is offline
Sponsored Links
Advertisement

post #4 of 16 Old 08-28-2015, 09:39 PM Thread Starter
Senior Member

Join Date: Aug 2012
Location: Illinois
Posts: 109
View Jophus14's Photo Album My Photos
They are indeed rendering. I'm just looking for some input prior to cutting up a bunch of walnut. This will be my biggest piece to date. I plan on taken pics as the build happens.
Jophus14 is offline
post #5 of 16 Old 08-28-2015, 10:05 PM
Senior Member

Join Date: Apr 2012
Location: Kamloops, B.C.
Posts: 444
View asevereid's Photo Album My Photos
That's a fantastic looking rendering... But I've got to ask... Why the splines instead of the biscuit method you mentioned?
asevereid is online now
post #6 of 16 Old 08-28-2015, 11:45 PM Thread Starter
Senior Member

Join Date: Aug 2012
Location: Illinois
Posts: 109
View Jophus14's Photo Album My Photos

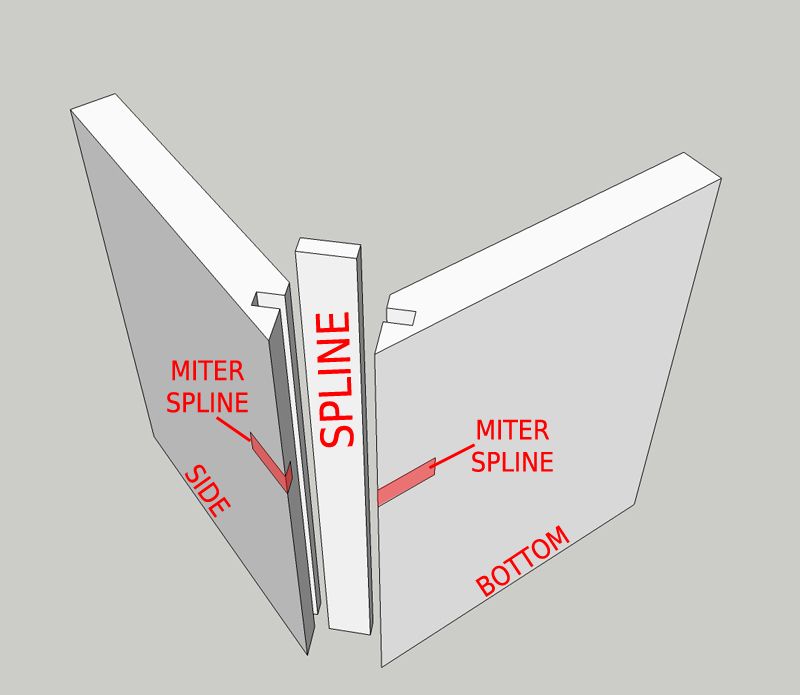

Thank you for liking the rendering. I wasn't originally thinking to use biscuits, just glue and cross-grain miter splines. The cross-grain splines are more for decorative purposes opposed to strength...even though they will add strength to the glued up miter. In the attached image you will see the mitered splines in a solid red. The spline that I am thinking of adding is the one through the actually 45 degree cut. It's labeled SPLINE in the image. Would this be beneficial or a complete headache to get the notches cut and still maintain a nice 90 degree corner?
Jophus14 is offline
post #7 of 16 Old 08-29-2015, 12:08 AM
Senior Member

Join Date: Apr 2012
Location: Kamloops, B.C.
Posts: 444
View asevereid's Photo Album My Photos
I've never used that method (having never built a project like yours), but I can't see any problems with it.
I really hope you get the build underway as I'm looking forward to the finished product.
asevereid is online now
post #8 of 16 Old 08-29-2015, 12:19 AM
Member

Join Date: Jun 2015
Posts: 34
View therealaveragej's Photo Album My Photos
Dovetails?
therealaveragej is offline
post #9 of 16 Old 08-29-2015, 07:26 AM Thread Starter
Senior Member

Join Date: Aug 2012
Location: Illinois
Posts: 109
View Jophus14's Photo Album My Photos
Dovetails would look amazing, but not if I cut them. I don't own a dovetail jig and I only cut hand dovetails twice. The outcome wasn't too horrible, but this is a much bigger beast to take on. However, it might not be too bad if there were only 4-5 dovetails along the depth of the piece. The same goes for box joints. I think I'm going to stick to the mitered corners and pray that they align in the end.
Jophus14 is offline
post #10 of 16 Old 08-29-2015, 09:13 AM
Senior Member

was2ndlast's Avatar

Join Date: Apr 2014
Posts: 821
View was2ndlast's Photo Album My Photos
Btw that's a cool looking design with the live edge drawer front. I have done long mitre joints before and used biscuits to reinforce them for a non heavy load situation. Using something like the festool domino to make floating tenons would be easy and much stronger although it isn't a cheap tool (I don't have one but wish I did).

For aligning during glue up, use tape along the whole length of the mitre...basically lay to 2 pieces flat butting the edges together and taping them. Then fold them...the tape helps keeping the joint aligned so you get a good clean mitre edge on the outside.
was2ndlast is offline
The Following User Says Thank You to was2ndlast For This Useful Post:
asevereid (08-29-2015)
post #11 of 16 Old 08-30-2015, 09:44 AM Thread Starter
Senior Member

Join Date: Aug 2012
Location: Illinois
Posts: 109
View Jophus14's Photo Album My Photos
Thanks was2ndlast. Although I would like to own the Domino, my tool budget is about $800 short, hah. I have built several keepsake boxes and I use the tape method on those. It works well for aligning the miters.

Since I will have to join three 6" boards together to make up the 18" width, I think I will have to invest in a biscuit jointer. It seems as though it will make the build easier and offer a bit more stability opposed to just glue and splines.
Jophus14 is offline
post #12 of 16 Old 08-30-2015, 11:01 AM
Senior Member

Rebelwork's Avatar

Join Date: Jan 2012
Location: Odessa,MO
Posts: 1,763
View Rebelwork's Photo Album My Photos
You need to use a "blind" spline as it isn't that big. I would not want domino's. You will need enough clamps to draw all four sides together. I would have 12 clamps handy. Dovetails? Dovetail can be cool but these tables won't need them. The design is simple and straight forward. Dovetails would be too busy looking for such a small piece..

Remember....Less is more sometimes.
Rebelwork is online now
The Following User Says Thank You to Rebelwork For This Useful Post:
mikeswoods (08-30-2015)
post #13 of 16 Old 08-30-2015, 08:59 PM
Senior Member

BZawat's Avatar

Join Date: Sep 2012
Location: Wilkes-Barre, PA
Posts: 1,455
View BZawat's Photo Album My Photos
Quote:
Originally Posted by Jophus14 View Post
Thank you for liking the rendering. I wasn't originally thinking to use biscuits, just glue and cross-grain miter splines. The cross-grain splines are more for decorative purposes opposed to strength...even though they will add strength to the glued up miter. In the attached image you will see the mitered splines in a solid red. The spline that I am thinking of adding is the one through the actually 45 degree cut. It's labeled SPLINE in the image. Would this be beneficial or a complete headache to get the notches cut and still maintain a nice 90 degree corner?

The blind spline is perfect for what you are trying to accomplish. It will add significant strength to the joint, as well as surface area for glue.

I used a blind spline to join the miter in this folded slab piece Name:  ImageUploadedByWood Working Talk1440982653.765943.jpg
Views: 287
Size:  94.7 KB

I also inserted dovetailed "keys" in the outside of the miter, basically for aesthetics. They do add some strength to the joint as well, however.
BZawat is offline
post #14 of 16 Old 08-31-2015, 08:56 AM
Member

Join Date: Jun 2015
Posts: 34
View therealaveragej's Photo Album My Photos
Those are all good options and all will look good. If you want a dovetail lookalike but not actual dovetails, you make a jig that straddles the 90 degree corner. The jig could have a platform that a router can sit on and pass through the corner with a dovetail bit. Then you can make a spline in the shape of the dovetail bit and glue into the dovetail slot you have created. It's not dovetails but it will look good.
therealaveragej is offline
post #15 of 16 Old 08-31-2015, 08:58 AM
Member

Join Date: Jun 2015
Posts: 34
View therealaveragej's Photo Album My Photos
Quote:
Originally Posted by BZawat View Post
The blind spline is perfect for what you are trying to accomplish. It will add significant strength to the joint, as well as surface area for glue.

I used a blind spline to join the miter in this folded slab piece Attachment 181569

I also inserted dovetailed "keys" in the outside of the miter, basically for aesthetics. They do add some strength to the joint as well, however.
Sorry I did not see this post when i posted. Dovetail "keys" are what I am referencing.
therealaveragej is offline
post #16 of 16 Old 09-01-2015, 05:33 PM Thread Starter
Senior Member

Join Date: Aug 2012
Location: Illinois
Posts: 109
View Jophus14's Photo Album My Photos
BZawat- That is a beautiful piece and a pretty good example of the style of miter that I am trying to accomplish.
