Tablesaw crosscut sled support extension....

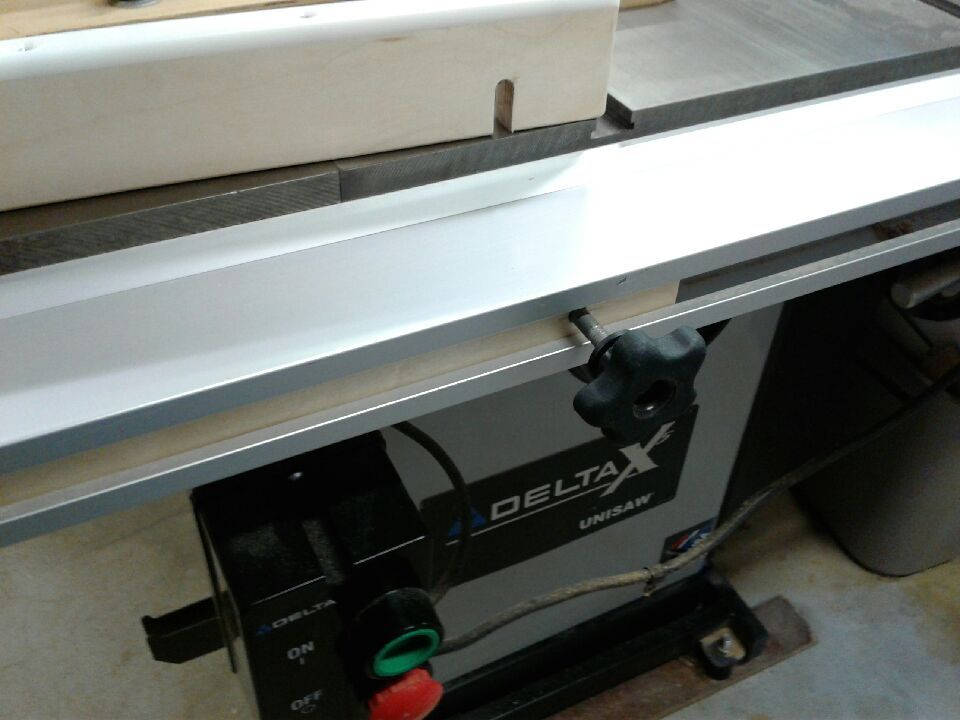

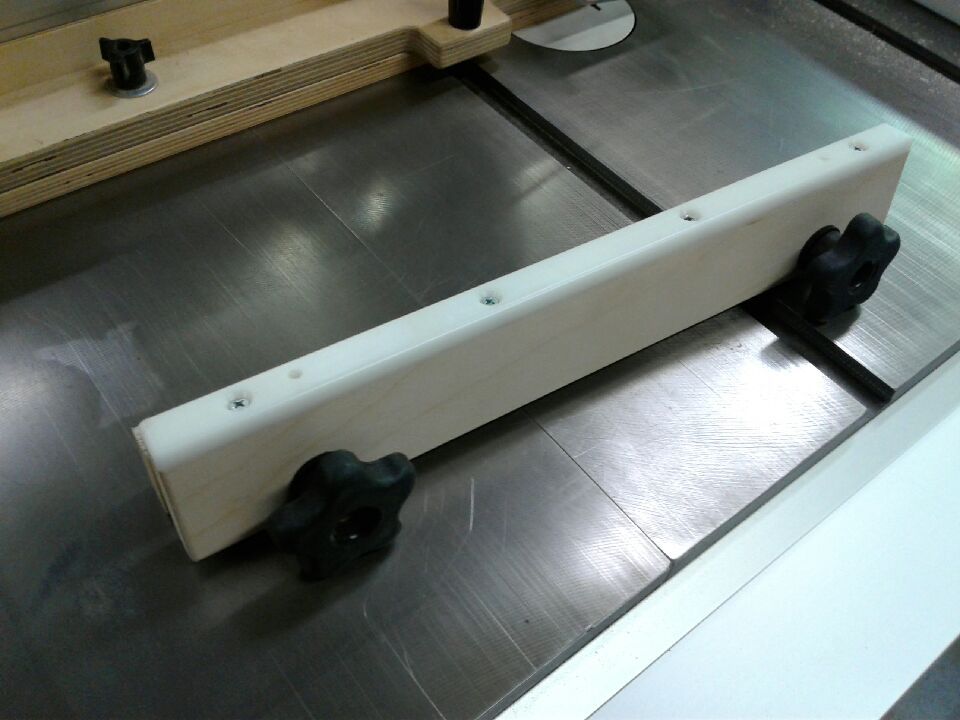

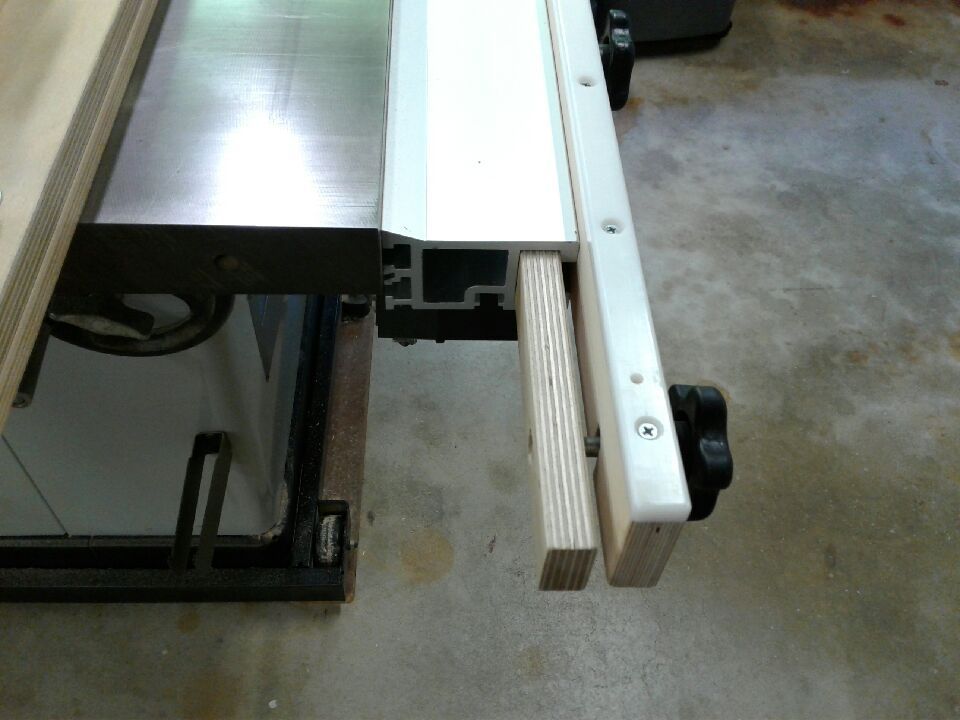

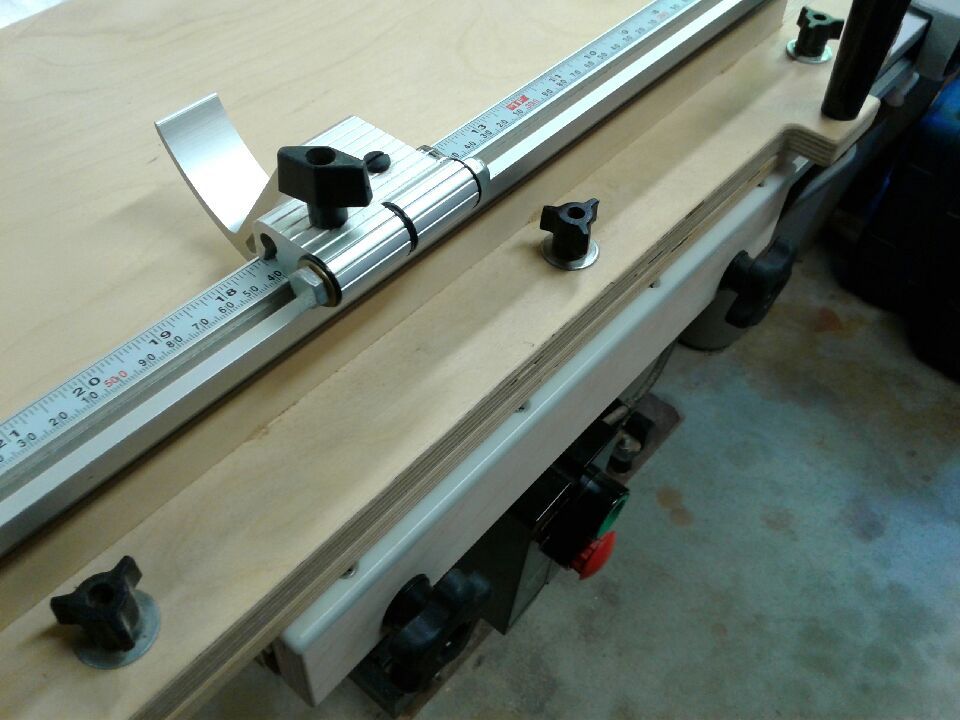

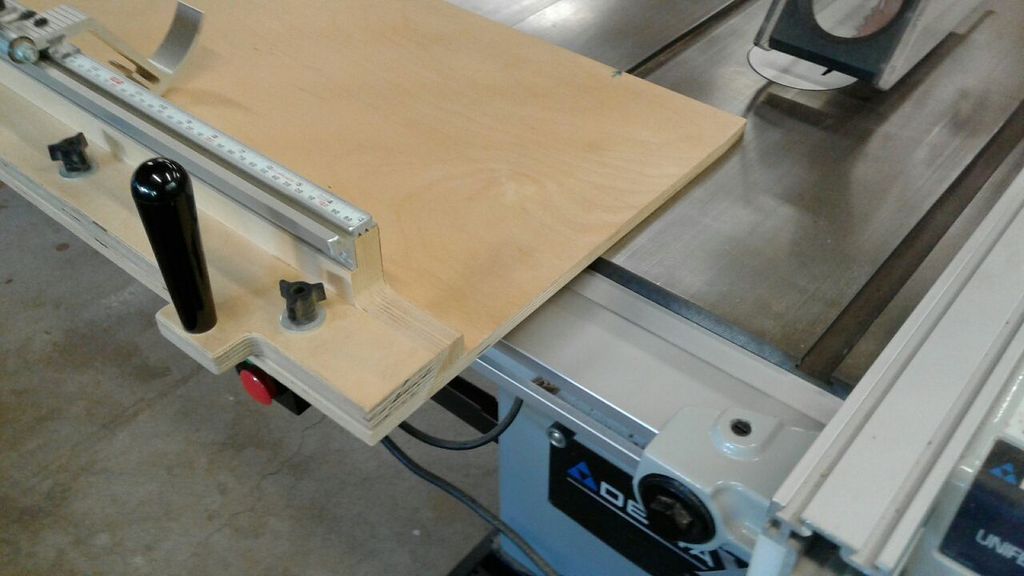

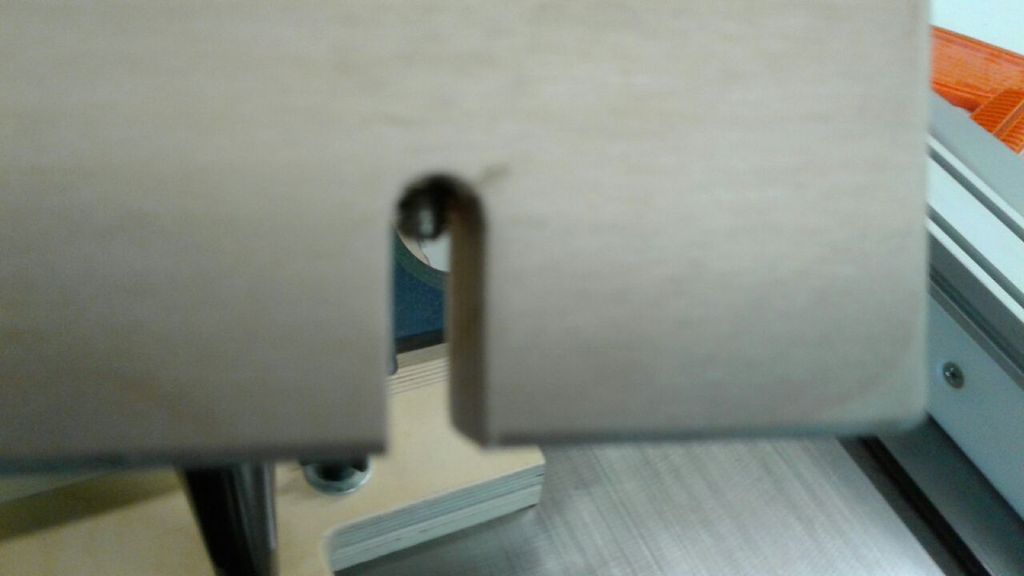

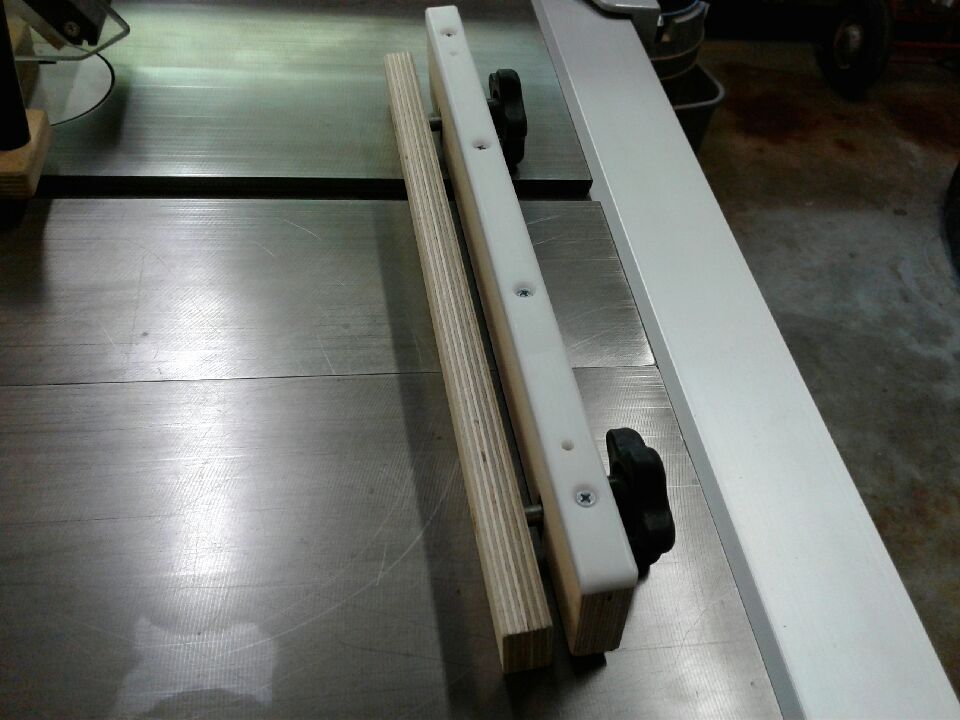

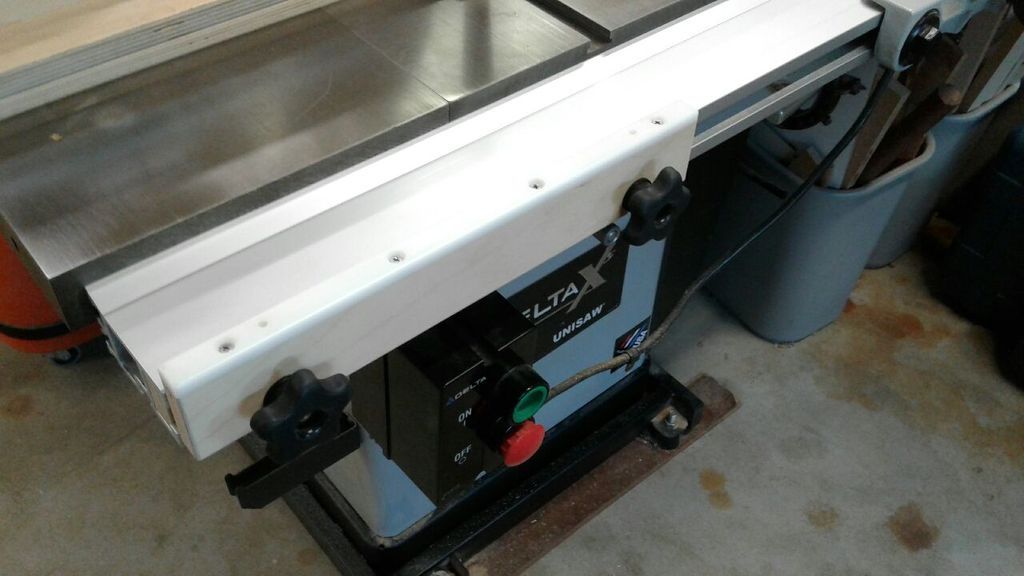

A while back I made a mid size crosscut sled that is my most used however I found I constantly needed just a little more capacity and when I pulled it back too far it would fall off of the table due to the weight of the fence so I made this little fixture to support it. I used 19mm Baltic Birch with a rounded over strip of UHMW plastic screwed to the top and added some set screws above the slots to easily bring it flush to the saw top as well as make it quick to re position after removing when needing to use the rip fence on the other side of the blade. Also, I had a miter gauge extension table on my Biesemeyer that was always in the way and wouldn't fit on the Unifence anyway so I am going to make a new one of those that will mount to the same bracket making it quick/easy to swap when needed.

http://www.woodworkingtalk.com/f27/m...el-sled-91426/























Post count on a forum does not denote level of knowledge, skill nor experience
Marv is offline
Sponsored Links
Advertisement

post #2 of 4 Old 10-30-2016, 09:20 PM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 25,295
View woodnthings's Photo Album My Photos
Marv, you do great work!

All your jigs and fixtures are top grade. I remembered seeing a cast iron front table extension in a search a while back. Unfortunately they are no longer available, so your idea is great. There's the photo I found:

The answer to your question will only be as detailed and specific as the question is detailed and specific. Good questions also include a sketch or a photo that illustrates your issue. (:< D)

Last edited by woodnthings; 10-30-2016 at 09:31 PM.
woodnthings is offline
post #3 of 4 Old 10-30-2016, 09:57 PM Thread Starter
Senior Member

Join Date: Nov 2008
Location: Monterey Bay California
Posts: 911
View Marv's Photo Album My Photos
Thanks Bill! I had an opportunity to buy one of those Delta miter gauge extension tables on eBay when I had the Unifence on my old saw and regretfully passed it up but if I ever find one again I'll definitely grab it!
Quote:
Originally Posted by woodnthings View Post
All your jigs and fixtures are top grade. I remembered seeing a cast iron front table extension in a search a while back. Unfortunately they are no longer available, so your idea is great. There's the photo I found:

Post count on a forum does not denote level of knowledge, skill nor experience
Marv is offline
Sponsored Links
Advertisement

post #4 of 4 Old 10-31-2016, 09:02 AM
Senior Member

Join Date: Jul 2014
Location: Midwest
Posts: 1,883
View woodchux's Photo Album My Photos
Great design/build idea! Sometimes necessity is the mother of invention. Thanks for sharing, and be safe.
woodchux is offline
