Options for edging plywood work bench top

I'm building a workbench to accommodate my miter saw on one end (about 20%) of the workbench top length, and to do other stuff, such as accommodate my grinder (for sharpening lathe tools) on the remaining 80% of the benchtop length. This workbench is is not for working projects (it will not have dogs, wood-vices, etc). The workbench top will have two sandwiched 3/4" plywood pieces for a total thickness of 1 and 7/16" thickness. I would like you all to please advise me of options to put on the edge of this benchtop instead of having the plywood edge visually show. Any ideas? I will be clamping and banging some things on this benchtop so whatever I do with the edge needs to be durable. All thoughts and options are welcome!
cassidy is offline
Sponsored Links
Advertisement

post #2 of 5 Old 06-26-2016, 07:15 PM
Junior Member

Join Date: Jun 2016
Posts: 21
View skizzity's Photo Album My Photos
Some 1x2 poplar mitered around the top.
FrankC likes this.
skizzity is offline
post #3 of 5 Old 06-26-2016, 08:44 PM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 25,870
View woodnthings's Photo Album My Photos
I slightly different approach ...

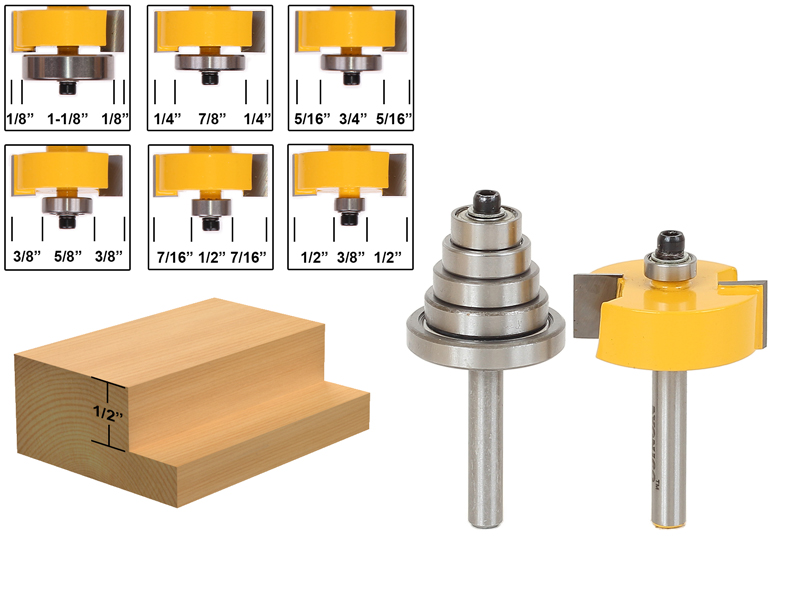

Use whatever wood you wish, Poplar, Maple etc. but I would create a rabbet by removing a 3/4" wide strip all around to top piece only. This will support the edge band much better than simply an end grain plywood and blue bond.


Kinda like this shape:

The answer to your question will only be as detailed and specific as the question is detailed and specific. Good questions also include a sketch or a photo that illustrates your issue. (:< D)
woodnthings is online now
Sponsored Links
Advertisement

post #4 of 5 Old 06-26-2016, 11:43 PM
Senior Member

Join Date: Mar 2015
Location: Garland, TX
Posts: 4,232
View Toolman50's Photo Album My Photos
Quote:
Originally Posted by woodnthings View Post
Use whatever wood you wish, Poplar, Maple etc. but I would create a rabbet by removing a 3/4" wide strip all around to top piece only. This will support the edge band much better than simply an end grain plywood and blue bond.


Kinda like this shape:
I agree with Woodnthings method for a more durable edge. I would also use a harder wood than Poplar if you have some on hand. If you cut the top 3/4" ply about 1" shorter on both length and width, you could eliminate the router exercise. Of course 1" will give you only a 1/2" rabbet all the way around, but I would prefer this 1/2" if I'm using 3/4" hardwood strip.
Toolman50 is offline
post #5 of 5 Old 06-27-2016, 08:10 AM
Senior Member

Join Date: Jul 2008
Location: Florida Panhandle
Posts: 11,800
View GeorgeC's Photo Album My Photos
My workbench top (made of 2x6 laid on their sides) is covered in 1/8" Masonite. I then use 3/4" angle aluminum to protect the edges.

The aluminum edging is screwed to the bench so that I can easily replace the Masonite when I want.

George
