Need advice on making a frame with thin wooden sticks.

I have unused wooden sticks of 1.27cm fatness, I want to make a frame with this and install mesh on it, will this wood be sufficient for that?
MicrocraftWindowsOS is offline
Sponsored Links
Advertisement

post #2 of 21 Old 08-07-2020, 04:55 AM
Senior Member

johnedp34's Avatar

Join Date: Jun 2016
Posts: 155
View johnedp34's Photo Album My Photos
I have just bought a garden trellis made of willow twigs smaller than yours. Out frame made up of three withes.
johnep
johnedp34 is offline
post #3 of 21 Old 08-07-2020, 06:59 AM
Moderator

John Smith_inFL's Avatar

Join Date: Jul 2018
Location: Central Florida
Posts: 2,973
View John Smith_inFL's Photo Album My Photos
welcome to the forum, MicroCrafts.
what part of the world are you from ?
do you have example photos, sketches or drawings
of the project you are trying to build or photos
of some of your past projects ?

there is no answer to your question: (not enough information).
you have 1/2" sticks that you want to put window screen on ??
what overall size will the frame be ??

.
TobyC likes this.

there is no educational alternative to having a front row seat in the School of Hard Knocks.

Last edited by John Smith_inFL; 08-07-2020 at 09:58 AM.
John Smith_inFL is online now
Sponsored Links
Advertisement

post #4 of 21 Old 08-07-2020, 09:56 AM Thread Starter
Junior Member

Join Date: Aug 2020
Posts: 9
View MicrocraftWindowsOS's Photo Album My Photos
Quote:
Originally Posted by johnedp34 View Post
I have just bought a garden trellis made of willow twigs smaller than yours. Out frame made up of three withes.
johnep

What are three withes?


Quote:
Originally Posted by John Smith_inFL View Post
welcome to the forum, MicroCrafts.
what part of the world are you from ?
do you have example photos, sketches or drawings
of the project you are trying to build or photos
of some of your past projects ?

.

I'm from India. I don't have any sketches, drawings or photos of the project I'm trying to build or past projects.



This is my first project.


I guess it would look like this, the room's frame would be made out of the wooden sticks I have.






The wooden sticks are forming cracks when I hammer nails into them to attach two of them together at the corners.



Do I have to saw off the straight corners into slanting corners?

Last edited by MicrocraftWindowsOS; 08-07-2020 at 10:00 AM.
MicrocraftWindowsOS is offline
post #5 of 21 Old 08-07-2020, 09:58 AM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 27,565
View woodnthings's Photo Album My Photos
Frame for what.... chickens?... a painting?

Quote:
Originally Posted by MicrocraftWindowsOS View Post
I have unused wooden sticks of 1.27cm fatness, I want to make a frame with this and install mesh on it, will this wood be sufficient for that?

You must certainly know that a stick" or board has 3 dimensions, length, width and thickness. What are the other 2 dimension and what is the frame going to be used for? How will the corners be secured? Will there be fasteners or just glue or both?


Your question lacks details so it's impossible to give any advice.

The answer to your question will only be as detailed and specific as the question is detailed and specific. Good questions also include a sketch or a photo that illustrates your issue. (:< D)

Last edited by woodnthings; 08-07-2020 at 11:59 AM.
woodnthings is online now
post #6 of 21 Old 08-07-2020, 10:19 AM
Senior Member

johnedp34's Avatar

Join Date: Jun 2016
Posts: 155
View johnedp34's Photo Album My Photos
Not sure if willow grows in India, one of the strongholds of cricket.
Check if your cricket bats are made from willow which may be grown where suitable climate. Withes is the name given to the rods of growth. Used for basket making and lately even coffins. I am sure you must have something similar. My trellis is made with pins rather than nails. Holes were drilled to take screws to attach to wall of a shed. I will try and post a pic.
johnep

Last edited by johnedp34; 08-07-2020 at 10:20 AM. Reason: spelling
johnedp34 is offline
The Following User Says Thank You to johnedp34 For This Useful Post:
MicrocraftWindowsOS (08-07-2020)
post #7 of 21 Old 08-07-2020, 10:58 AM Thread Starter
Junior Member

Join Date: Aug 2020
Posts: 9
View MicrocraftWindowsOS's Photo Album My Photos
Quote:
Originally Posted by woodnthings View Post
You must certainly know that a stick" or board has 3 dimensions, length, width and thickness. What are the other 2 dimension and what id the frame going to be used for? How will the corners be secured? Will there be fasteners or just glue or both?


Your question lacks details so it's impossible to give any advice.

Length is 10 feet, thickness and width are both 1.27cm. I posted a photo, it will be used for similar purpose. I'm new to carpentry, so I don't know how corners will be secured, I hammered nails into the corners and the wood developed cracks. What fasteners can be used to attach corners.
MicrocraftWindowsOS is offline
post #8 of 21 Old 08-07-2020, 11:25 AM
Senior Member

Rebelwork's Avatar

Join Date: Jan 2012
Location: Odessa,MO
Posts: 1,859
View Rebelwork's Photo Album My Photos
Sounds like your making speaker grids. Sort of. You could look at them as screened porch doors. Same concept...
Rebelwork is online now
The Following User Says Thank You to Rebelwork For This Useful Post:
MicrocraftWindowsOS (08-07-2020)
post #9 of 21 Old 08-07-2020, 11:28 AM
Moderator

John Smith_inFL's Avatar

Join Date: Jul 2018
Location: Central Florida
Posts: 2,973
View John Smith_inFL's Photo Album My Photos
here in the USA, we call that a "Screen Door" type of frame.
if you google it, you will see many examples that may give
you some inspiration on different designs.
(very relevant question: what kind of tools do you have or have access to ??).

Edit: while looking through YouTube for screen doors, I ran across this.
which I think is what you really want to make: Shoji Paper Sliding Door
except you will be using a cloth material instead of paper.

.

there is no educational alternative to having a front row seat in the School of Hard Knocks.

Last edited by John Smith_inFL; 08-07-2020 at 12:15 PM.
John Smith_inFL is online now
The Following User Says Thank You to John Smith_inFL For This Useful Post:
MicrocraftWindowsOS (08-07-2020)
post #10 of 21 Old 08-07-2020, 12:12 PM
Senior Member

johnedp34's Avatar

Join Date: Jun 2016
Posts: 155
View johnedp34's Photo Album My Photos
https://www.amazon.co.uk/INMOZATA-Fo...xpY2s9dHJ1ZQ==


https://www.twentypence.co.uk/store/...ellis_4345.htm


My trellis is very similar.

johnep

Last edited by johnedp34; 08-07-2020 at 12:24 PM. Reason: adding link
johnedp34 is offline
The Following User Says Thank You to johnedp34 For This Useful Post:
MicrocraftWindowsOS (08-07-2020)
post #11 of 21 Old 08-07-2020, 12:51 PM Thread Starter
Junior Member

Join Date: Aug 2020
Posts: 9
View MicrocraftWindowsOS's Photo Album My Photos
Quote:
Originally Posted by John Smith_inFL View Post
here in the USA, we call that a "Screen Door" type of frame.
if you google it, you will see many examples that may give
you some inspiration on different designs.
(very relevant question: what kind of tools do you have or have access to ??).

Edit: while looking through YouTube for screen doors, I ran across this.
which I think is what you really want to make: Shoji Paper Sliding Door
except you will be using a cloth material instead of paper.

.

I have drilling machine to make holes, hammer, nails, saw, adhesive and varnish.



The screen door you suggested seems to be made with wooden sticks with more width and thickness than 1.27cm, do you think I can do something like that with a wooden stick of 1.27cm?


When I'm attaching two corners of the wooden stick with nails, the wood is cracking? How can I avoid this? The corners are straight, do I need to saw off the corners into a slant? Can I saw any pattern to make the sticks interlock with each other?
MicrocraftWindowsOS is offline
post #12 of 21 Old 08-07-2020, 12:52 PM Thread Starter
Junior Member

Join Date: Aug 2020
Posts: 9
View MicrocraftWindowsOS's Photo Album My Photos
Quote:
Originally Posted by johnedp34 View Post
Not sure if willow grows in India, one of the strongholds of cricket.
Check if your cricket bats are made from willow which may be grown where suitable climate. Withes is the name given to the rods of growth. Used for basket making and lately even coffins. I am sure you must have something similar. My trellis is made with pins rather than nails. Holes were drilled to take screws to attach to wall of a shed. I will try and post a pic.
johnep
Quote:
Originally Posted by johnedp34 View Post

My trellis is very similar.

johnep

What kind of pins can I use to attach the corners?
MicrocraftWindowsOS is offline
post #13 of 21 Old 08-07-2020, 01:48 PM
Moderator

John Smith_inFL's Avatar

Join Date: Jul 2018
Location: Central Florida
Posts: 2,973
View John Smith_inFL's Photo Album My Photos
here in the USA - we use inches and feet.
your 1.27cm comes out to half and inch. 1/2" or .5".
without a LOT of woodworking experience, you will find
making anything out of 1/2" sticks will be a challenge, to say the least.
plus - your tool inventory is a block.
I would suggest you look around in your area for a carpenter or woodworker
that can assist you with at least putting the frames together.

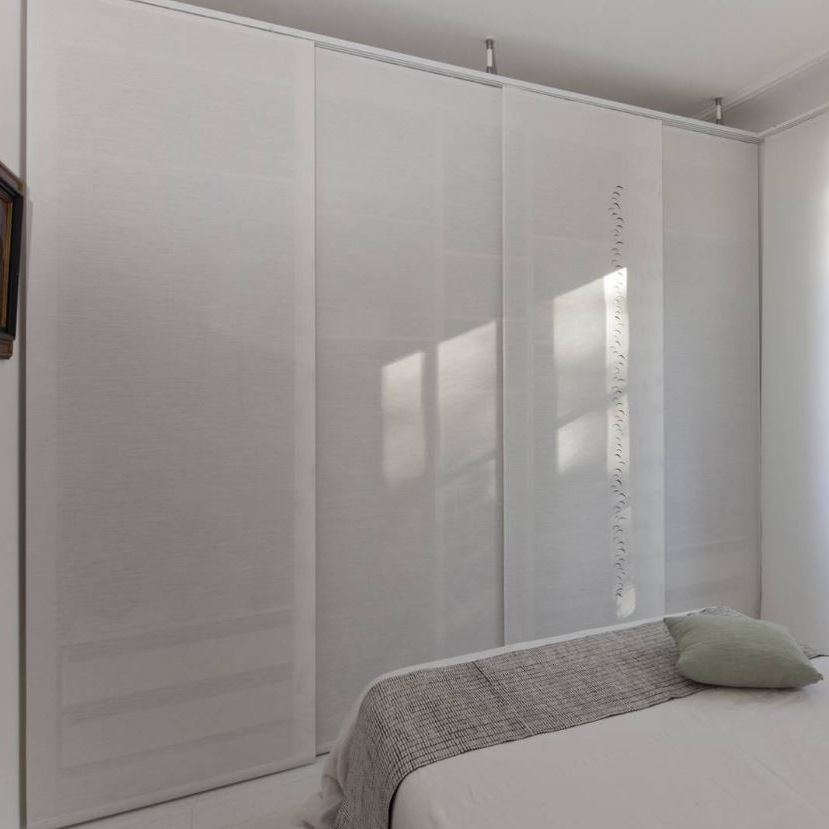

if you look very closely at the example photo you provided, you can see big wood
behind the material. I would think 1x4 inches on the sides and maybe larger for
the cross sections at the bottom and maybe 1x2 inches in the top half.
there is no way one half inch (1.27cm) will work for this project - sorry.
(photo has been enhanced to show more detail).

Need advice on making a frame with thin wooden sticks.-67027-13898753.jpg

so I am referring you back to the Wooden Screen Door as an example.
Need advice on making a frame with thin wooden sticks.-unnamed.png

as an added Edit:
could you please post some photos of the "sticks" that you have ???
here in the U.S., 1/2x1/2" sticks that are 10 feet long will twist up
like spaghetti in a bowl. it is hard to imagine that you have perfectly
straight wooden sticks that are suitable for any kind of projects larger
than a shoe box.

.

there is no educational alternative to having a front row seat in the School of Hard Knocks.

Last edited by John Smith_inFL; 08-07-2020 at 02:28 PM.
John Smith_inFL is online now
post #14 of 21 Old 08-08-2020, 02:35 AM
Senior Member

johnedp34's Avatar

Join Date: Jun 2016
Posts: 155
View johnedp34's Photo Album My Photos
Pins used as nails are called brads. Use for small jobs and securing glass in window frames. Also known as panel pins.

https://www.screwfix.com/search?search=pins

You could drill a 1.5mm hole for the panel pins. This would stop the cracking.
johnep

Last edited by johnedp34; 08-08-2020 at 05:03 AM. Reason: adding info
johnedp34 is offline
post #15 of 21 Old 08-10-2020, 02:14 PM
Nine Thumbs

Join Date: Dec 2015
Location: The Very Tip of Lake Michigan
Posts: 341
View Shop_Rat's Photo Album My Photos
1.27cm is 1/2". You apparently have 1/2" by 1/2" square stock. That is very thin for nailing.
The best way I know of is to pre-drill the holes in the sides of the stick and hammer your nails (hopefully very thin brads) into the end grain of the piece to be joined.
The end grain often will take a nail where side grain will simply split, but you will still only be able to use a single nail at each joint.
I would also use glue on the joints.
Nothing will be extremely strong using small stock like that, but it should hold together if not jostled around.

Another $000,000,000.02 worth of advice,
Mark
Shop_Rat is offline
The Following User Says Thank You to Shop_Rat For This Useful Post:
MicrocraftWindowsOS (08-11-2020)
post #16 of 21 Old 08-11-2020, 04:59 AM
Senior Member

johnedp34's Avatar

Join Date: Jun 2016
Posts: 155
View johnedp34's Photo Album My Photos
Name:  cnrtrellis.jpg
Views: 43
Size:  63.6 KB

Need advice on making a frame with thin wooden sticks.-trellis.jpg


These are pics of my trellis. Wire staples were used. The corner has split so wood not soaked or steamed.
johnep

Last edited by johnedp34; 08-11-2020 at 05:06 AM.
johnedp34 is offline
The Following User Says Thank You to johnedp34 For This Useful Post:
MicrocraftWindowsOS (08-11-2020)
post #17 of 21 Old 08-11-2020, 12:16 PM Thread Starter
Junior Member

Join Date: Aug 2020
Posts: 9
View MicrocraftWindowsOS's Photo Album My Photos
Quote:
Originally Posted by Shop_Rat View Post
1.27cm is 1/2". You apparently have 1/2" by 1/2" square stock. That is very thin for nailing.
The best way I know of is to pre-drill the holes in the sides of the stick and hammer your nails (hopefully very thin brads) into the end grain of the piece to be joined.
The end grain often will take a nail where side grain will simply split, but you will still only be able to use a single nail at each joint.
I would also use glue on the joints.
Nothing will be extremely strong using small stock like that, but it should hold together if not jostled around.

At corners I have to join 3 pieces of wood, 1 length, 1 breadth and 1 height, how can I attach all three? One hole can only hold two together, do I have to make another hole for another one?


How can I make holes or slots on thicker pieces of wood? What is the name of the equipment I would need.
MicrocraftWindowsOS is offline
post #18 of 21 Old 08-11-2020, 12:54 PM
Moderator

John Smith_inFL's Avatar

Join Date: Jul 2018
Location: Central Florida
Posts: 2,973
View John Smith_inFL's Photo Album My Photos
can you please post some photos of the sticks you want to use ??
and a photo of the ends where you nailed them and the wood split.

.

there is no educational alternative to having a front row seat in the School of Hard Knocks.
John Smith_inFL is online now
post #19 of 21 Old 08-11-2020, 04:53 PM
Jack of too many trades..

RepairmanJack's Avatar

Join Date: Aug 2013
Location: St. Louis
Posts: 164
View RepairmanJack's Photo Album My Photos
MicroCraft, I think John's right in that you're building something like a Shoji Screen and the wood you have sounds right for a shoji screen. Rather than deal with nails or screws, for 1.27 cm 1/2 Inch square dowels (which is what you've described) I would do this:



Lay out your pieces of wood on a flat table or reasonably flat ground. Cut the pieces you want to use to length and arrange them as you want them to go together. You should have a bunch of places where the wood comes together like an "L" or "T" or "H" shape.



I would then mark every place where the wood needs to be joined and cut a 1.27 cm wide and 0.63 cm deep notch on each half. This lets you press the pieces together almost like puzzle pieces. You need to be careful and measure and cut very accurately, but you can end up with a very good fit that needs little more than glue, or maybe small nail or screw to hold the wood together. Then you can attach your screening material Since you said the wood splits with a nail, your wood is either a hardwood, or very prone to splitting. the ends of most pieces of wood will split very easily if you drive a nail in close to the end. You probably need to drill small pilot holes to avoid the splitting and cracking.



I recommend that you just search for "Shoji Screen Joinery" on google and you should see some videos and how-to guides on assembling a frame like you've pictured using small pieces of wood.
RepairmanJack is offline
post #20 of 21 Old 08-17-2020, 10:58 AM Thread Starter
Junior Member

Join Date: Aug 2020
Posts: 9
View MicrocraftWindowsOS's Photo Album My Photos
Quote:
Originally Posted by John Smith_inFL View Post
can you please post some photos of the sticks you want to use ??
and a photo of the ends where you nailed them and the wood split.

.

I'll post the photos in few days.
MicrocraftWindowsOS is offline
Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Woodworking Talk - Woodworkers Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


For the best viewing experience please update your browser to Google Chrome
