How would I make this?

My mother in law asked if I could make a few of these for her crafts. It's basically a doughnut shape in hardboard. (This one she bought has a mirror in it.) Exterior diameter about 10 1/4" and interior about 6 1/2." I'm thinking either use this as a template for my router or use a circle cutter on the drill press. Other thoughts?

How would I make this?-img_0781.jpg
Shop Dad is offline
Sponsored Links
Advertisement

post #2 of 17 Old 03-25-2012, 10:57 PM
Log dog

Dominick's Avatar

Join Date: Oct 2011
Location: Northeast illinois
Posts: 7,933
View Dominick's Photo Album My Photos
Use that one as a template with your router. That's what I would do. I'm sure others have different ideas.

When it's rustic......it's rustic
Dominick is offline
The Following User Says Thank You to Dominick For This Useful Post:
Shop Dad (03-26-2012)
post #3 of 17 Old 03-25-2012, 11:03 PM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 25,944
View woodnthings's Photo Album My Photos
Is it flat or dished?

Flat..no problem, just a template and a router. I would not use a drill press and circle cutter or hole saw. A saber saw and some sanding will be fine. A saber saw or bandsaw on the outside diameter would be fine also.

Dished? ...other than a lathe I have no ideas. It may be been made with a glue sawdust mixture compressed in a mold. bill

The answer to your question will only be as detailed and specific as the question is detailed and specific. Good questions also include a sketch or a photo that illustrates your issue. (:< D)
woodnthings is online now
The Following User Says Thank You to woodnthings For This Useful Post:
Shop Dad (03-26-2012)
Sponsored Links
Advertisement

post #4 of 17 Old 03-25-2012, 11:09 PM Thread Starter
Trytore Member

Shop Dad's Avatar

Join Date: May 2011
Location: Central New Jersey
Posts: 2,764
View Shop Dad's Photo Album My Photos
It's perfectly flat. I think the angle of the photo makes it look dished or oblong. I don't think I've routed hardboard before. Any issues or does it work clean?
Shop Dad is offline
post #5 of 17 Old 03-25-2012, 11:11 PM
The New Guy

Join Date: Dec 2011
Location: Down south, where the food is good.
Posts: 1,200
View Itchytoe's Photo Album My Photos
I could turn you a million of them on the lathe, but they'd be solid wood, not hardboard. If it has to be hardboard, then a router and use that one as a template. If it's dished and not flat, run down to the local craft store and buy them. Looks like they're about 10 bucks a piece.
Itchytoe is offline
The Following User Says Thank You to Itchytoe For This Useful Post:
Shop Dad (03-26-2012)
post #6 of 17 Old 03-26-2012, 08:41 AM
Senior Member

Join Date: Sep 2011
Posts: 25,991
View Steve Neul's Photo Album My Photos
Quote:
Originally Posted by Shop Dad View Post
My mother in law asked if I could make a few of these for her crafts. It's basically a doughnut shape in hardboard. (This one she bought has a mirror in it.) Exterior diameter about 10 1/4" and interior about 6 1/2." I'm thinking either use this as a template for my router or use a circle cutter on the drill press. Other thoughts?

Attachment 41752
Question is, how few is a few. If I were not going to make more than a dozen I would just cut them out with a band saw and jig saw and sand the edges. The time it would take to make the router templets and get it set up you could be done.
Steve Neul is offline
The Following User Says Thank You to Steve Neul For This Useful Post:
Shop Dad (03-26-2012)
post #7 of 17 Old 03-26-2012, 10:00 AM
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos

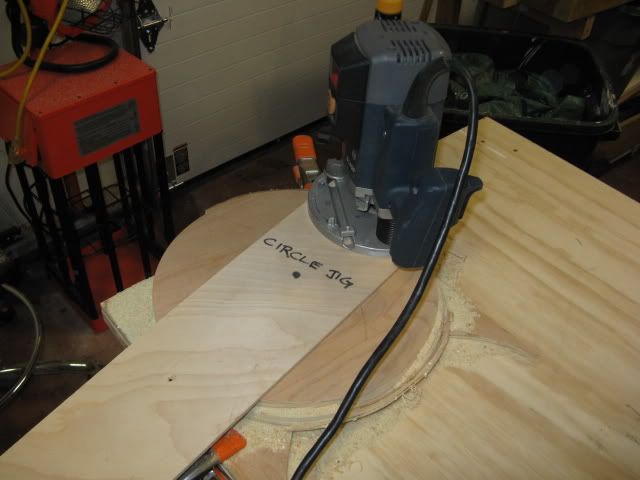

Circle jig?


Learning more about tools everyday
tcleve4911 is offline
The Following User Says Thank You to tcleve4911 For This Useful Post:
Shop Dad (03-26-2012)
post #8 of 17 Old 03-26-2012, 10:13 AM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 25,944
View woodnthings's Photo Album My Photos
A few = 4 let's say

Stack 4 square pieces and use a some double sided tape between them. Saw out the inside circle first with a saber/jig saw, then the outside diameter. Sand the edges and you'll have 4 of them in no time. Depending on your equipment, you can possibly stack up to 6 at a time.... bill

The answer to your question will only be as detailed and specific as the question is detailed and specific. Good questions also include a sketch or a photo that illustrates your issue. (:< D)
woodnthings is online now
The Following User Says Thank You to woodnthings For This Useful Post:
Shop Dad (03-26-2012)
post #9 of 17 Old 03-26-2012, 10:23 AM
Old School

cabinetman's Avatar

Join Date: Jul 2007
Location: So. Florida
Posts: 24,062
View cabinetman's Photo Album My Photos
I would make a template from a substrate...3/4". Secure the hardboard with hot glue or double stick tape. Drill a hole for the router bit (flush trim) for the inside curve, and just run the outside. A 3/8" flush trim bit will cut easy.





.
cabinetman is offline
The Following User Says Thank You to cabinetman For This Useful Post:
Shop Dad (03-26-2012)
post #10 of 17 Old 03-26-2012, 03:35 PM Thread Starter
Trytore Member

Shop Dad's Avatar

Join Date: May 2011
Location: Central New Jersey
Posts: 2,764
View Shop Dad's Photo Album My Photos
I was thinking I would use this to create a more robust template out of 1/2" or 3/4" MDF. I've found hardboard a bit too thin to get a bearing bit on and only cut the workpiece.
Shop Dad is offline
post #11 of 17 Old 03-26-2012, 03:52 PM
Senior Member

Join Date: Jul 2008
Location: Florida Panhandle
Posts: 11,851
View GeorgeC's Photo Album My Photos
To my eyes that thing looks like it is thicker in the center then on the edges. Sort of a flying saucer shape.

George
GeorgeC is online now
post #12 of 17 Old 03-26-2012, 05:43 PM
Senior Member

Join Date: Jan 2011
Location: Sarasota,Florida
Posts: 114
View Canarywood's Photo Album My Photos
Do the inside and the outside with a router, cleanest and best way to go.
Canarywood is offline
post #13 of 17 Old 03-26-2012, 11:37 PM
Wood Router Hobbyist

Join Date: Mar 2012
Posts: 8
View woodrouterreviewsguy's Photo Album My Photos
yes, a router is the way to go, for the inside and outside


woodrouterreviewsguy, wood router
woodrouterreviewsguy is offline
post #14 of 17 Old 03-27-2012, 12:39 AM Thread Starter
Trytore Member

Shop Dad's Avatar

Join Date: May 2011
Location: Central New Jersey
Posts: 2,764
View Shop Dad's Photo Album My Photos
Thanks all. I think we have a winner! Appreciate the input.
Shop Dad is offline
post #15 of 17 Old 03-27-2012, 12:49 AM
Log dog

Dominick's Avatar

Join Date: Oct 2011
Location: Northeast illinois
Posts: 7,933
View Dominick's Photo Album My Photos
Quote:
Originally Posted by Shop Dad
Thanks all. I think we have a winner! Appreciate the input.
And the winner is.
Dominick. Lol. JK. Whats your plan? No really who's the winner?

When it's rustic......it's rustic
Dominick is offline
post #16 of 17 Old 03-27-2012, 01:02 AM Thread Starter
Trytore Member

Shop Dad's Avatar

Join Date: May 2011
Location: Central New Jersey
Posts: 2,764
View Shop Dad's Photo Album My Photos
Quote:
Originally Posted by Dominick View Post
And the winner is.
Dominick. Lol. JK. Whats your plan? No really who's the winner?
Correct on the first guess! You are indeed the winner of a new trim router. You can collect it at the door.
Shop Dad is offline
post #17 of 17 Old 03-27-2012, 01:03 AM
Log dog

Dominick's Avatar

Join Date: Oct 2011
Location: Northeast illinois
Posts: 7,933
View Dominick's Photo Album My Photos
Quote:
Originally Posted by Shop Dad

Correct on the first guess! You are indeed the winner of a new trim router. You can collect it at the door.
Laughing MAO. Thanks.

When it's rustic......it's rustic
Dominick is offline
