Help ,Did I totally ruin my oak window base?

Hi Guys,

I was trying to sand out some marks on unfinshed oak. I was using a dewalt random orbital sander at 60 grit. If left a roundish patter that doesnt match the wood at all ( see picture ). What did I do wrong and can i fix this?

Thanks
Cordel is offline
Sponsored Links
Advertisement

post #2 of 20 Old 01-29-2013, 08:10 PM
dlb
Member

Join Date: Nov 2012
Posts: 68
View dlb's Photo Album My Photos
Sand the entire piece starting w/ 120 and moving up the scale, sanding WITH the grain.


Take your 60 grit paper and throw it away!!!! The only thing I use it for is removing paint when I don't have any stripper handy.

Now, the proper approach is to start w/ a higher grit and work your way down until you correct the problem. Don't do it in the reverse manner else you end up w/ your current problem.

This is correctable.
dlb is offline
post #3 of 20 Old 01-29-2013, 08:14 PM Thread Starter
Junior Member

Join Date: Jan 2013
Posts: 4
View Cordel's Photo Album My Photos
OK But I am still safe using random orbital dewalt?
Cordel is offline
Sponsored Links
Advertisement

post #4 of 20 Old 01-29-2013, 08:15 PM
Yea i got wood

robert421960's Avatar

Join Date: Dec 2010
Location: Rockholds Ky
Posts: 3,016
View robert421960's Photo Album My Photos

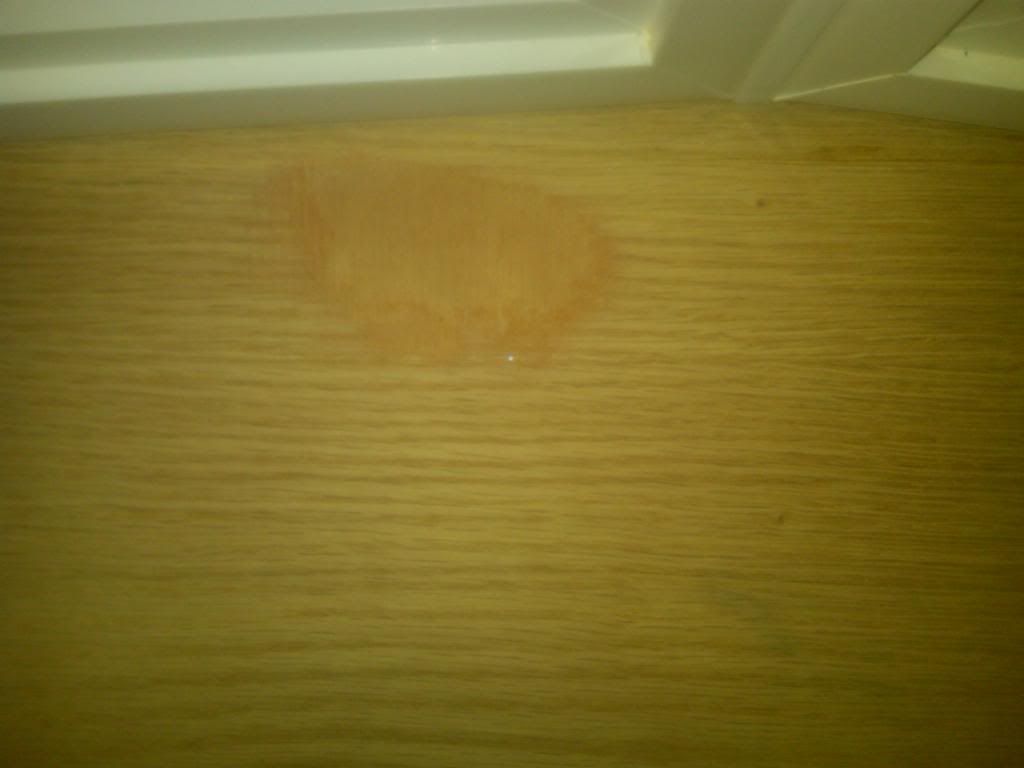

looks like oak veneer to me and you sanded thru the layer of oak
i sure hope im wrong
robert421960 is offline
The Following 4 Users Say Thank You to robert421960 For This Useful Post:
BZawat (01-29-2013), tcleve4911 (01-29-2013), Tommie Hockett (01-30-2013), vinnypatternmaker (01-29-2013)
post #5 of 20 Old 01-29-2013, 08:40 PM
Senior Member

BZawat's Avatar

Join Date: Sep 2012
Location: Wilkes-Barre, PA
Posts: 1,455
View BZawat's Photo Album My Photos
That's oak ply and you sanded thru the veneer, I'm afraid. More sanding will only make it worse. For future reference, I never go lower than 80, and that's only for surface leveling when sanding solid wood glue ups and such.

Start at 120 and go up in grit. Makes no sense to go the other way. The ROS leaves little swirls, and each successive grit removes the swirls of the heavier grit before it and smooths the surface further.

Couple things you can do, depending on your skill set and adventurousness. Re-Veneer the window sill with spray contact cement and a piece of oak veneer. That's what I would do.
If you plan on staining the sill, you could disguise the burn thru by drawing in some grain with the appropriate color permanent marker and stain lightly using successive LIGHT coats, blending as best you can.

Whatever you do, don't try to sand it out ;-P
BZawat is offline
post #6 of 20 Old 01-29-2013, 08:55 PM Thread Starter
Junior Member

Join Date: Jan 2013
Posts: 4
View Cordel's Photo Album My Photos
Great, I am so suprised out how thin the veneer was. How thin of a layer of vaneer can I get? Like 1/8 inch hopefully and what are the odds I can get something that remotely matches the window?

Oh and if I was to keep sanding deeper would I eventually strike oak again?

Last edited by Cordel; 01-29-2013 at 09:00 PM.
Cordel is offline
post #7 of 20 Old 01-29-2013, 09:54 PM
Wood Snob

Al B Thayer's Avatar

Join Date: Dec 2011
Posts: 5,963
View Al B Thayer's Photo Album My Photos
With all due respect. You screwed the pooch. 60 grit?

Al

Friends don't let friends use stamped metal tools sold at clothing stores.


Al B Thayer is offline
post #8 of 20 Old 01-29-2013, 09:57 PM
Wood Snob

Al B Thayer's Avatar

Join Date: Dec 2011
Posts: 5,963
View Al B Thayer's Photo Album My Photos
Quote:
Originally Posted by Cordel
Great, I am so suprised out how thin the veneer was. How thin of a layer of vaneer can I get? Like 1/8 inch hopefully and what are the odds I can get something that remotely matches the window?

Oh and if I was to keep sanding deeper would I eventually strike oak again?
Veneer is thinner than you grandmothers bible paper.

Al

Friends don't let friends use stamped metal tools sold at clothing stores.


Al B Thayer is offline
post #9 of 20 Old 01-29-2013, 10:09 PM
Sawdust Creator

ryan50hrl's Avatar

Join Date: Jun 2012
Posts: 8,047
View ryan50hrl's Photo Album My Photos
You will hit oak again.....in 3/4 of an inch......Sorry man....its time to learn how to reveneer. http://www.woodcraft.com/product/200...8--10-mil.aspx
ryan50hrl is offline
post #10 of 20 Old 01-29-2013, 10:12 PM
Senior Member

Duane Bledsoe's Avatar

Join Date: Oct 2012
Location: Eastern Kentucky
Posts: 570
View Duane Bledsoe's Photo Album My Photos
No, you won't strike oak again if you keep sanding. I think at this point, veneering it again is your only real shot at fixing that like it was before.

Edit.....I was posting at the same time as the guy above. I was about to say the same thing about the 3/4 inch ply but decided not to. Haha.

What he meant was the other side is also veneered, too.

Last edited by Duane Bledsoe; 01-29-2013 at 10:18 PM.
Duane Bledsoe is offline
post #11 of 20 Old 01-29-2013, 10:19 PM Thread Starter
Junior Member

Join Date: Jan 2013
Posts: 4
View Cordel's Photo Album My Photos
Quote:
Originally Posted by Al B Thayer View Post
Veneer is thinner than you grandmothers bible paper.

Al

Friends don't let friends use stamped metal tools sold at clothing stores.
She reads the King James version and yes its pretty thin. I will need Gods help anyways to get me through this disaster.

Thanks for the help though guys, i appreciate it.

Last edited by Cordel; 01-29-2013 at 10:33 PM.
Cordel is offline
post #12 of 20 Old 01-30-2013, 01:09 AM
Senior Member

Join Date: Jan 2013
Location: Colorado Springs
Posts: 321
View RogerInColorado's Photo Album My Photos
Can't tell from the photo. If you can pull the piece out, replace it with a new piece, maybe with solid lumber. That might be easier (and in the long run cheaper) than making this you first veneering experience.
RogerInColorado is offline
post #13 of 20 Old 01-30-2013, 07:40 AM
Member

Ryan 4 custom's Avatar

Join Date: Jan 2013
Posts: 56
View Ryan 4 custom's Photo Album My Photos
Sorry bro, for sure oak ply wood or a veneered substrate. If you buy some veneer you could fix it with a little work. You might be better off to re veneer the whole piece. I would fill the burnt area with a decent wood filler and glue some new oak to it.
Ryan 4 custom is offline
post #14 of 20 Old 01-30-2013, 07:51 AM
Member

Ryan 4 custom's Avatar

Join Date: Jan 2013
Posts: 56
View Ryan 4 custom's Photo Album My Photos
By oak i mean oak veneer. The veneer is super thin so sand everything to 220 lightly with no added pressure, then wipe all dust off of the piece. When you are ready to cut the veneer to size a pair of sharp scissors will do the trick. Be careful when cutting with the grain as the veneer may want to run with a grain or split so to speak. Across the grain should cut nicely.

When ready to glue use a brush or rubber head roller and put a thin film of glue across entire surface. Flip piece over and repeat. Then use wax paper to protect the surface u don't want glue on and put some weight on the piece over night.
Carefully sand the edges down so they are flush and you are all set.
Ryan 4 custom is offline
post #15 of 20 Old 01-30-2013, 07:56 AM
Senior Member

Join Date: Sep 2011
Posts: 25,995
View Steve Neul's Photo Album My Photos
Even if it were solid wood you shouldn't have been using 60 grit paper on an orbital sander. That coarse you would leave swirl marks all over what you sanding which wouldn't show up until you started finishing it. 80 grit is as coarse as you should go and then only on solid wood and it will leave swirl marks you need to pay attention to work out with finer paper afterwards. 60 grit is more suited to strip paint off metal.

40 years ago when I got in the business if a person was careful you could sand a piece of plywood with a belt sander with a 60 grit belt and not sand through the veneer. Todays plywood the veneer is so thin sometimes you can see the core through the veneer before it's sanded. The veneer is as thin as paper and after they laminate it on a sheet they send it through a sander and take half of that off so when you get it there is nearly nothing. Todays plywood shouldn't be sanded with anything coarser than 180 grit.
Steve Neul is offline
post #16 of 20 Old 01-30-2013, 08:56 AM
Senior Member

tcleve4911's Avatar

Join Date: Dec 2006
Location: Vermont & Maine
Posts: 1,967
View tcleve4911's Photo Album My Photos
From the picture, it looks like you have enough room to use 1/4" oak plywood instead of a veneer.
Easier to install, readily available at real lumberyards.
IMHO

Learning more about tools everyday
tcleve4911 is offline
post #17 of 20 Old 01-30-2013, 09:43 AM
Member

Join Date: May 2012
Posts: 54
View Larrylii's Photo Album My Photos
I can't tell how this is mounted but is flipping the piece over and option? To me it looks like a window sill.
Larrylii is offline
post #18 of 20 Old 01-30-2013, 04:49 PM
Member

Ryan 4 custom's Avatar

Join Date: Jan 2013
Posts: 56
View Ryan 4 custom's Photo Album My Photos
Here here.
Ryan 4 custom is offline
post #19 of 20 Old 01-30-2013, 04:54 PM
Member

Ryan 4 custom's Avatar

Join Date: Jan 2013
Posts: 56
View Ryan 4 custom's Photo Album My Photos
My fault, here here Steve. Todays plywood is for the birds and I've only been in it 20 years. Ten years ago you could at least go through the steps from 80 grit to 220 grit. I'm struggling right now with a set of cherry built-Ins. I might as well rub the carcasses with my hand so i won't burn through it.
Ryan 4 custom is offline
post #20 of 20 Old 01-30-2013, 07:17 PM
Lector

Glassnwood's Avatar

Join Date: Jan 2012
Location: Panama City Fl.
Posts: 81
View Glassnwood's Photo Album My Photos
Quote:
Originally Posted by Larrylii View Post
I can't tell how this is mounted but is flipping the piece over and option? To me it looks like a window sill.

Be careful doing this little trick. If you screw it up I doubt you could ever blend it in to match the other windows. I went to fix a broken tile once.........................................:cens ored:
Glassnwood is offline
