Getting mortising jig aligned

I'm using my drill press mortising attachment for the first time. I'm trying to figure out how to get the edge of the mortising bit perfectly parallel to the fence. I have discovered if it's not parrallel to the fence, the mortise has little "steps" in it. Is there a tried and true way to get it lined up?
Quickstep is online now
Sponsored Links
Advertisement

post #2 of 5 Old 07-23-2016, 03:34 PM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 27,120
View woodnthings's Photo Album My Photos
Not tried , but true

Place a 3/4" thick piece of stock between the rear of the square chisel and the fence and rotate the chisel until it's flat against the strip, still holding it against the fence as well. Then tighten the chisel in the holder. Use a piece whose thickness that is the same distance from the edge to the fence as you want your mortises and you'll be all set to go.

The answer to your question will only be as detailed and specific as the question is detailed and specific. Good questions also include a sketch or a photo that illustrates your issue. (:< D)
woodnthings is online now
post #3 of 5 Old 08-07-2016, 09:27 AM
Senior Member

GROOVY's Avatar

Join Date: Apr 2008
Posts: 791
View GROOVY's Photo Album My Photos
I use a Stanley knife blade clamped to front of chisel to align fence
GROOVY is offline
Sponsored Links
Advertisement

post #4 of 5 Old 08-07-2016, 12:34 PM
Senior Member

Stevedore's Avatar

Join Date: Dec 2011
Location: Morris County, New Joisey
Posts: 570
View Stevedore's Photo Album My Photos
I use a 12" rule clamped at its midpoint to the chisel & measure the distance from each end to the fence.
Stevedore is online now
post #5 of 5 Old 08-07-2016, 01:10 PM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 27,120
View woodnthings's Photo Album My Photos
Quoting myself ....

Quote:
Originally Posted by woodnthings View Post
Place a 3/4" thick piece of stock between the rear of the square chisel and the fence and rotate the chisel until it's flat against the strip, still holding it against the fence as well. Then tighten the chisel in the holder. Use a piece whose thickness that is the same distance from the edge to the fence as you want your mortises and you'll be all set to go.

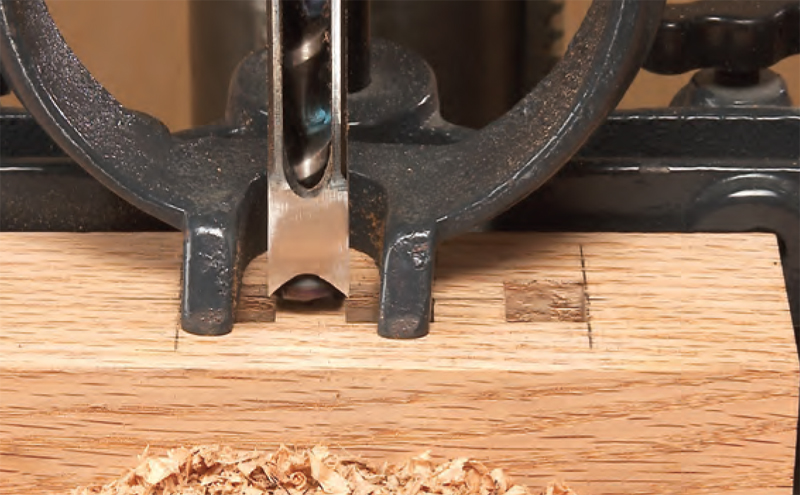

In case this wasn't real clear allow me to better explain. Let's say you want your mortises to start 1/2" from the back edge of the board. You take a 1/2" thick piece of stock and place it between the chisel and the fence, holding the chisel against it to square it up. Then tighten the chisel in the chuck and you are good to go:



You can make different thickness pieces for the various spacings you need... NO measuring! The combined spacer thickness (X2) and the width of the chisel will add up to the total width of the board.

The answer to your question will only be as detailed and specific as the question is detailed and specific. Good questions also include a sketch or a photo that illustrates your issue. (:< D)
