A flush trim bit question.

I am guilty of buying cheap router bits. My question is about the distance between the bearing and the cutter. Would a quality flush trim bit like Whiteside have the bearing closer to the cutter than cheap bits? If you need more information please ask.

Don
hawkeye10 is offline
Sponsored Links
Advertisement

post #2 of 6 Old 07-03-2015, 09:34 AM
Senior Member

Join Date: Aug 2010
Location: Maine
Posts: 1,932
View Hammer1's Photo Album My Photos
They are pretty much the same. Normally, there is a thin washer between the bearing and the bit to help keep debris out. The bearing post will have a shoulder that keeps the bearing from contacting the cutter. There are differences in bearing size depending on the bit. A 1/4" shank flush cutting bit with a smaller cutter will use a small bearing, 1/2" shank bits with larger cutters use a larger bearing. Smaller bits for thinner material. In addition to the normal bearings there are Euro bearings which have a square plastic shroud around the bearing. These are used so the bearing doesn't turn against your work and leave a mark. Flush trim bits come not only in various sizes but the bearings can be bottom or top mounted. If you are template routing, the template needs to be about 1/4" thick for the bearing to ride on. The real difference between an inexpensive bit and more expensive brand name is the quality and thickness of the carbide, not much difference in the other parts of the bits.
Hammer1 is offline
post #3 of 6 Old 07-03-2015, 12:13 PM
Wood Snob

Al B Thayer's Avatar

Join Date: Dec 2011
Posts: 5,963
View Al B Thayer's Photo Album My Photos
I believe the difference between good bits and cheap bits would be in the sharpness and how long better steel lasts. Also how well the bearing fits and spins. I also find better bits are truer with less wobble.

If I had a bit that took more or less wood off I would probably just think it was the way I made the cut.

Al


Al B Thayer is offline
Sponsored Links
Advertisement

post #4 of 6 Old 07-03-2015, 01:52 PM
Senior Member

Join Date: Nov 2008
Location: Monterey Bay California
Posts: 912
View Marv's Photo Album My Photos

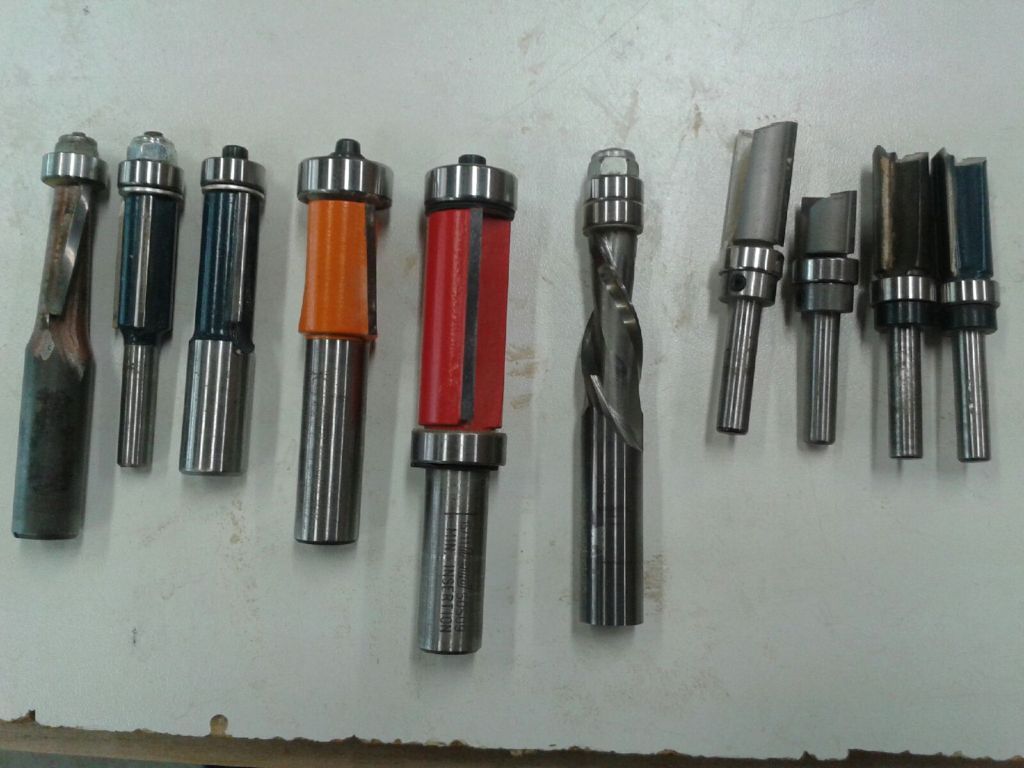

Here are some of my flush trim bits Don and from the left I have an Oakland Carbide, Bosch, Bosch, CMT, Freud, Whiteside, Whiteside, Whiteside, not sure and Bosch. By eye most of them appear very similar in distance from bearing to cutter however the shorter Whiteside template bit to the right is a little closer and the Whiteside spiral bit has the cutter about 1/2 the distance closer to the bearing than the others. If you need some critical info I'll break out a feeler gauge and get some measurements for you.


Post count on a forum does not denote level of knowledge, skill nor experience
Marv is offline
post #5 of 6 Old 07-03-2015, 04:35 PM Thread Starter
Senior Member

hawkeye10's Avatar

Join Date: Feb 2015
Location: Murfreesboro, Tn.
Posts: 1,173
View hawkeye10's Photo Album My Photos
Quote:
Originally Posted by Marv View Post
Here are some of my flush trim bits Don and from the left I have an Oakland Carbide, Bosch, Bosch, CMT, Freud, Whiteside, Whiteside, Whiteside, not sure and Bosch. By eye most of them appear very similar in distance from bearing to cutter however the shorter Whiteside template bit to the right is a little closer and the Whiteside spiral bit has the cutter about 1/2 the distance closer to the bearing than the others. If you need some critical info I'll break out a feeler gauge and get some measurements for you.

Thanks Marv for the good information. I bought several of these Fisker templates and attached some luan to them for inlays. The edges of the Fisker template are beveled so it's hard to get the bearing to follow the Fiskers template. I think the Whiteside spiral will work for me.

Thanks again; Don

http://www.amazon.com/Fiskars-8-5x11...55182&sr=1-114
hawkeye10 is offline
post #6 of 6 Old 07-03-2015, 05:03 PM
Senior Member

Join Date: Nov 2008
Location: Monterey Bay California
Posts: 912
View Marv's Photo Album My Photos
You're welcome Don and one thing to note is I have another one of that exact Whiteside spiral bit permanently set up in one of my router tables and a quick look shows it actually has a wider spacing than the one shown! (it's actually closer to the spacing of all the other bits).

Post count on a forum does not denote level of knowledge, skill nor experience
Marv is offline
