Embedding nuts in to a wood workbench

I think I'm looking for something similar to a "caged nut". I want to embed some nuts to receive bolts for use in clamping and vices. I've done this before by chiseling a six sided hole to hold the nut but that tends to be loose and doesn't last long in soft woods. Are there any nuts that would lend themselves to this purpose?
Klaus is offline
Sponsored Links
Advertisement

post #2 of 25 Old 12-31-2019, 10:13 PM
Moderator

John Smith_inFL's Avatar

Join Date: Jul 2018
Location: Central Florida
Posts: 1,411
View John Smith_inFL's Photo Album My Photos
yeah - they are called T-Nuts.
installed from the bottom side of the bench.
there are several styles available.

Name:  d311653x.jpg
Views: 39
Size:  14.5 KB

-- I am a painter. That's what I do. I paint things --

Last edited by John Smith_inFL; 12-31-2019 at 10:16 PM.
John Smith_inFL is online now
post #3 of 25 Old 12-31-2019, 10:17 PM
Member

Join Date: Jun 2016
Posts: 56
View Rick Christopherson's Photo Album My Photos
There is a wide variety of threaded inserts that you can use. Some can be mounted from above, and some are intended to be mounted from below. Just google threaded insert. (I hope these pictures get automatically resized.)




Rick Christopherson is online now
Sponsored Links
Advertisement

post #4 of 25 Old 01-01-2020, 01:02 AM Thread Starter
Junior Member

Join Date: Dec 2019
Location: Arizona
Posts: 2
View Klaus's Photo Album My Photos
Thank you both! Perfect!
Klaus is offline
post #5 of 25 Old 01-01-2020, 01:55 PM
Senior Member

terryh's Avatar

Join Date: Nov 2013
Location: Alberta, Canada
Posts: 216
View terryh's Photo Album My Photos
Unless there is some reason you canít use T-nuts (e.g. unable to access bottom) Iíd avoid inserts. The tension on the screw/bolt tends to pull the T-nut into the board while tending to pull the insert out of the board.
terryh is online now
post #6 of 25 Old 01-01-2020, 02:34 PM
Member

SEMIJim's Avatar

Join Date: Nov 2019
Location: S.E. Michigan
Posts: 83
View SEMIJim's Photo Album My Photos
Quote:
Originally Posted by terryh View Post
Unless there is some reason you canít use T-nuts (e.g. unable to access bottom) Iíd avoid inserts. The tension on the screw/bolt tends to pull the T-nut into the board while tending to pull the insert out of the board.
I've wondered about that.

I've an application that will demand the inserts. I wonder if there's any particular style/type/brand that works any better than any other?

"There is hardly anything in the world that some man cannot make a little worse and sell a little cheaper, and the people who consider price only are this man's lawful prey." -- John Ruskin (1819-1900)
SEMIJim is online now
post #7 of 25 Old 01-01-2020, 03:05 PM
Senior Member

Tony B's Avatar

Join Date: Jul 2008
Location: Dickinson, Tx. / Somerville, TX
Posts: 3,612
View Tony B's Photo Album My Photos
Dont over-tighten or spill water or other liquid near the screws where the water can corrode the 2 together.

Tony B



Retired woodworker, amongst other things, Sold full time cruising boat and now full time cruising in RV. Currently in Somerville, Tx
Tony B is online now
post #8 of 25 Old 01-01-2020, 03:21 PM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 26,254
View woodnthings's Photo Album My Photos
Quote:
Originally Posted by SEMIJim View Post
I've wondered about that.

I've an application that will demand the inserts. I wonder if there's any particular style/type/brand that works any better than any other?

Some have a much coarser thread that goes into the wood like these meant for soft wood:
https://www.lowes.com/pd/Hillman-3-8...ck-Nut/3012578

https://www.popularwoodworking.com/t...eaded-inserts/

The answer to your question will only be as detailed and specific as the question is detailed and specific. Good questions also include a sketch or a photo that illustrates your issue. (:< D)

Last edited by woodnthings; 01-01-2020 at 03:25 PM.
woodnthings is online now
post #9 of 25 Old 01-01-2020, 03:21 PM
Member

Join Date: Jun 2016
Posts: 56
View Rick Christopherson's Photo Album My Photos
Quote:
Originally Posted by terryh View Post
Unless there is some reason you canít use T-nuts (e.g. unable to access bottom) Iíd avoid inserts. The tension on the screw/bolt tends to pull the T-nut into the board while tending to pull the insert out of the board.
No, not if properly installed. I use threaded inserts quite often. The only ones I avoid are those with a fine exterior thread. Those are better suited for man-made materials, versus the ones with a coarse exterior thread.
Rick Christopherson is online now
post #10 of 25 Old 01-01-2020, 03:23 PM
Member

Join Date: Jun 2016
Posts: 56
View Rick Christopherson's Photo Album My Photos
Quote:
Originally Posted by woodnthings View Post
Some have a much coarser thread that goes into the wood like these meant for soft wood:
Hahahaha Apparently we read each other's mind a little too often for comfort.
Rick Christopherson is online now
post #11 of 25 Old 01-01-2020, 04:06 PM
Member

Join Date: Jun 2016
Posts: 56
View Rick Christopherson's Photo Album My Photos
Just as a followup, this is the style that I use most often. They have a coarse, blunted thread, which pushes the wood grain apart versus a sharp thread that cuts the grain.


This is the fine thread version. The threads are finer, but also very sharp. They will cut the fibers as they are threaded in. They work best in stringy, fibrous woods, and are excellent in plastics. (Never use these in end-grain)

This is a tapered thread version. The threads are both coarse and sharp. I have some in the shop, but I don't recall ever using them. They would be best suited for very soft woods, such as pine. Because the threads are also very deep, they can probably be used in end-grain.


The one on the left is a push-in style. I have some of these, but don't recall ever using them. I just don't trust the pull-out strength unless they would be epoxied in place.



The bottom mount inserts are good, but I don't use them as often because they are visible. Here is a picture where I used them to mount a metal subframe onto a large table pedestal that needed to be separated for shipping.
Attached Images

Rick Christopherson is online now
post #12 of 25 Old 01-01-2020, 05:52 PM
Senior Member

Join Date: Aug 2017
Posts: 2,321
View Tool Agnostic's Photo Album My Photos
Really great information from @Rick Christopherson! Thank you!

In addition to the above, I have seen screw-on T-nuts at the store, and scratched my head about them. At first I thought they were intended as a top mount, but now I realize that they go underneath like other T-nuts and get pulled tight. The screw holes are there to keep it from rotating, not for attachment per se. They would not work well as a top attachment, because the three small screws could not be very strong.

https://www.rockler.com/screw-on-tee...se-size-thread
Tool Agnostic is offline
post #13 of 25 Old 01-01-2020, 06:38 PM
Senior Member

terryh's Avatar

Join Date: Nov 2013
Location: Alberta, Canada
Posts: 216
View terryh's Photo Album My Photos
Quote:
Originally Posted by Rick Christopherson View Post
No, not if properly installed........
Rick C, Iíve used inserts successfully in lots of applications too. My post simply stated a mechanical truth about the forces. Surely your ďnoĒ canít be questioning the physics. Regardless of how inserts are installed, a tensile force from the screw/bolt is going to try to pull the insert out, and that is a fact.
terryh is online now
post #14 of 25 Old 01-01-2020, 06:46 PM
Member

Join Date: Jun 2016
Posts: 56
View Rick Christopherson's Photo Album My Photos
Quote:
Originally Posted by terryh View Post
... a tensile force from the screw/bolt is going to try to pull the insert out, and that is a fact.
"Try" isn't the same as "will".


Back when I was putting together the specifications for my boom arm, I did the research on thread pull-out strengths. I don't have the research in front of me anymore, but it was rather surprising how high they were. Don't quote me on this because I don't remember anymore, but I vaguely recall that screw thread pullout strengths were nearly the same as comparable through-bolt pullout strengths.
Rick Christopherson is online now
post #15 of 25 Old 01-01-2020, 06:54 PM
Senior Member

terryh's Avatar

Join Date: Nov 2013
Location: Alberta, Canada
Posts: 216
View terryh's Photo Album My Photos
Thatís why I said ďtry.Ē And what I said is still true. Of course whether or not the insert is pulled out depends on a lot of things in particular the expected force - I get it.
terryh is online now
post #16 of 25 Old 01-01-2020, 07:12 PM
Senior Member

MEP1's Avatar

Join Date: Aug 2015
Posts: 223
View MEP1's Photo Album My Photos

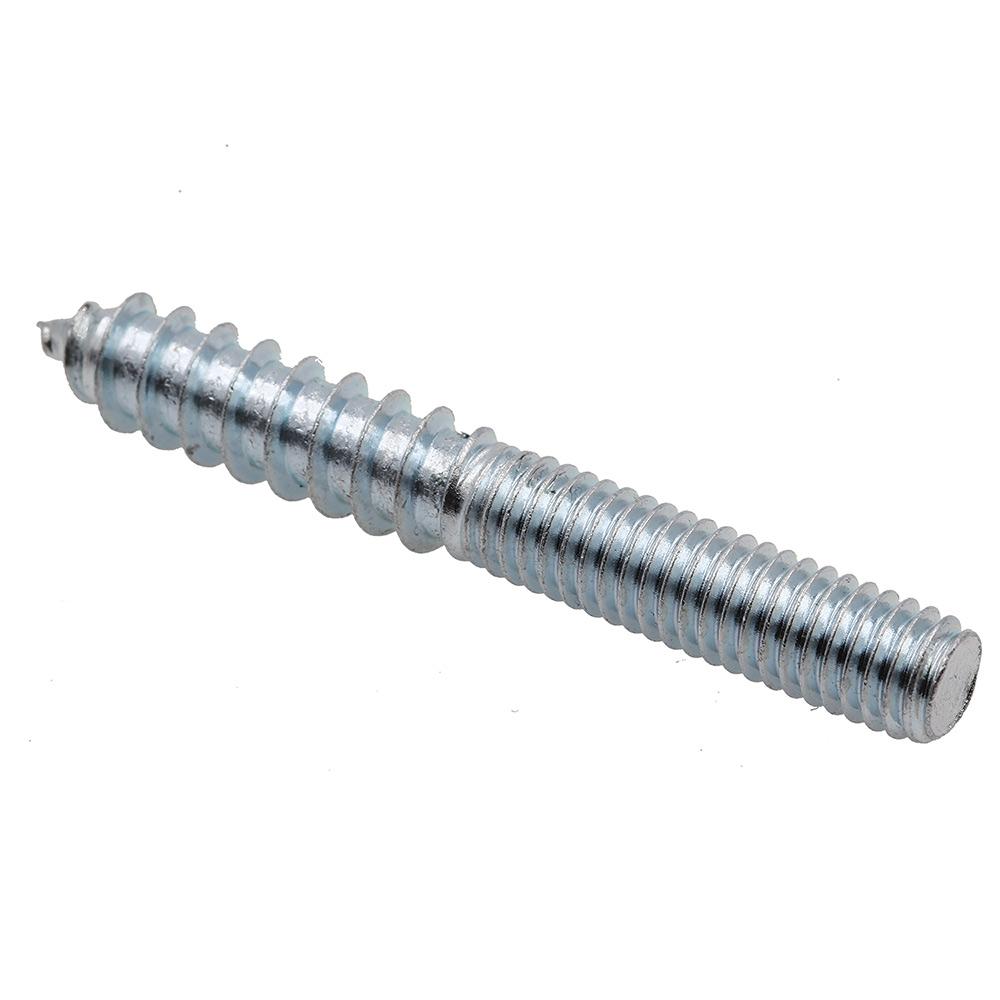

If this is for a permanent fixture installation, you might want hanger bolts.



These will sink deeper into the wood than any insert for better holding. Wood glue on the coarse thread will help keep them from unthreading, epoxy will make them even more permanent.
MEP1 is offline
post #17 of 25 Old 01-02-2020, 12:55 AM
Member

SEMIJim's Avatar

Join Date: Nov 2019
Location: S.E. Michigan
Posts: 83
View SEMIJim's Photo Album My Photos
Quote:
Originally Posted by Rick Christopherson View Post
Just as a followup, this is the style that I use most often. They have a coarse, blunted thread, which pushes the wood grain apart versus a sharp thread that cuts the grain.

Where do you get those?

"There is hardly anything in the world that some man cannot make a little worse and sell a little cheaper, and the people who consider price only are this man's lawful prey." -- John Ruskin (1819-1900)
SEMIJim is online now
post #18 of 25 Old 01-02-2020, 01:04 AM
Member

Join Date: Jun 2016
Posts: 56
View Rick Christopherson's Photo Album My Photos
Woodcraft has them, but I imagine just about any woodworking store will have a full selection of types and sizes. You can probably even get them on Amazon or eBay too. My local HomeDepot has the fine thread, but unfortunately not the coarse thread.
Rick Christopherson is online now
The Following User Says Thank You to Rick Christopherson For This Useful Post:
SEMIJim (01-02-2020)
post #19 of 25 Old 01-02-2020, 08:09 AM
Moderator

John Smith_inFL's Avatar

Join Date: Jul 2018
Location: Central Florida
Posts: 1,411
View John Smith_inFL's Photo Album My Photos
my local Lowe's, Home Depot, ACE, all have the threaded inserts.
they also come in metric thread, if you ever need them.
you don't have to get the ones that require the "T" handle for installation.
to me, that is just another unnecessary tool.
check YouTube for "installing threaded inserts" to see what best suits
you, your projects and your skill level.

.

.

-- I am a painter. That's what I do. I paint things --
John Smith_inFL is online now
post #20 of 25 Old 01-02-2020, 10:16 AM
Senior Member

Join Date: Aug 2017
Posts: 2,321
View Tool Agnostic's Photo Album My Photos
Quote:
Originally Posted by SEMIJim View Post
Where do you get those?
I get them at my local Rockler store, but I have seen them in many places. Frankly, I see them a lot when I get drafted into assembling cheap furniture (read: IKEA) for my in-laws.

There are multiple types of inserts. Some use allen (hex) wrenches to insert. Others have a slot on either side of the central hole. If you are very careful, you can use a flat-blade screwdriver to insert the slot type, but you must prevent the ends of the screwdriver tip from going outside the insert and scratching or scraping your wood.

The T-handle insert tool has a post in the middle with flat wings to drive the insert. I do not have one of those, but I have a small insert "bit" with the same post and wings that can be driven by a socket set ratchet or drill-driver. I nearly always forget to use the tool and reach for the big screwdriver instead. Old habits die hard.
Tool Agnostic is offline
