Does such a hinge exist?

I'm building an outdoor platform (section of deck) that has storage inside it. The top (technically floor?) of this deck will have sections that flip open to access the stuff inside. Here's the problem. Actually there are two. It's right up against the house so there's just no room for a traditional hinge to work since that would require space behind the platform for the door to flip into, which there is none because it's about 1 inch from the house.

Fine, I figured some kind of european style hinge would be needed then. Because they allow the door to flip up in much less space. NOw, problem number two, the frame of this platform ends up being 2 1/2 inches thick, since it's essentially a deck and thus built like one. This effectively means the "overlay" on this "cabinet" is 2 1/2 inches.

So the question: is there a hinge that would allow for a face frame overlay of 2 1/2 inches? I keep reading you can get different mounting plates to make your overlay options "unlimited" but I can't seem to find such a plate that has an overlay as large as i need.

Can someone please tell me where (website) to go to get these kinds of hinges. If you could tell me exactly what to get that would be appreciated.

Failing that, the only thing I can think of to do is move the platform away from the house enough to let a normal hinge work. I don't like the idea of a gap there but if no miracle hinge exists I suppose there's no choice.

Thanks for any help

- Carl
Carl HmS is offline
Sponsored Links
Advertisement

post #2 of 17 Old 05-18-2013, 11:53 PM
Junior Member

Join Date: Mar 2013
Posts: 27
View plainolebill's Photo Album My Photos
Maybe I'm not getting the entire picture - is there some reason you can't put the hinge on the side away from the house?
plainolebill is offline
post #3 of 17 Old 05-19-2013, 12:16 AM
Wood Snob

Al B Thayer's Avatar

Join Date: Dec 2011
Posts: 5,963
View Al B Thayer's Photo Album My Photos
Get a Soss hinge. Any of the woodworking supplies carry them. $$$$$


Name:  image-89190546.jpg
Views: 2334
Size:  34.6 KB

This table top has them in the center section folding.

Al

Friends don't let friends use stamped metal tools sold at clothing stores.


Al B Thayer is offline
The Following User Says Thank You to Al B Thayer For This Useful Post:
Carl HmS (05-19-2013)
Sponsored Links
Advertisement

post #4 of 17 Old 05-19-2013, 01:05 AM
Senior Member

BZawat's Avatar

Join Date: Sep 2012
Location: Wilkes-Barre, PA
Posts: 1,455
View BZawat's Photo Album My Photos
+1 Al. Soss hinges seem to be the answer here. Zero clearance and invisible when closed.

Brian
BZawat is offline
post #5 of 17 Old 05-19-2013, 09:22 AM Thread Starter
Junior Member

Join Date: May 2013
Posts: 4
View Carl HmS's Photo Album My Photos
Quote:
Originally Posted by plainolebill View Post
Maybe I'm not getting the entire picture - is there some reason you can't put the hinge on the side away from the house?
You are not getting the entire picture because I didn't explain it completely since it's a bit of an odd setup. The part of the deck this is on is actually like a little "step" or "catwalk" that partially goes in between the side of the house and a hot tub. Rather than try to explain all that it's better to just think of this thing as like a bench. So if you had a bench against the side of the house and the hinges flipped toward you (away from the house) how would you get to the stuff inside? the now upturned lid of the bench would be in the way.

I'm probably doing a bad job explaining so you'll just have to trust me when I say they have to hinge toward the house, that's how we want it and need it to work.

Regarding the SOSS hinge that does look like it might work. They are, however, pretty expensive. I can't help but think I'm missing something simple. I will have to think about adjusting the design of the top to perhaps work with a cheaper hinge. But thanks for the info, I didn't know about SOSS hinges.

Just out of curiosity, do european hinges with 2 to 3 inch overlays exist? It's something that is hard to google because when you put in 3 inch it seems to think "3/8 inch" is an acceptable match.
Carl HmS is offline
post #6 of 17 Old 05-19-2013, 09:55 AM Thread Starter
Junior Member

Join Date: May 2013
Posts: 4
View Carl HmS's Photo Album My Photos

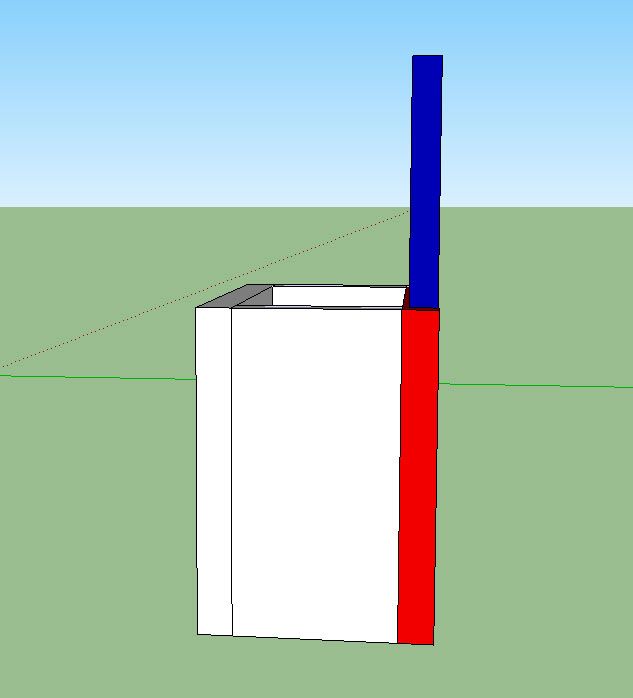

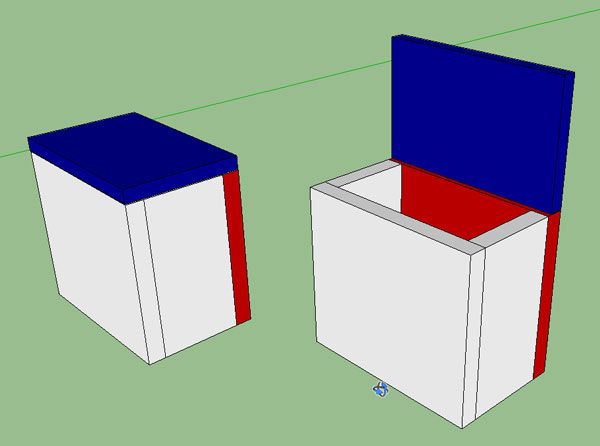

Here are some renderings to illustrate what I'm talking about.





Because there's little clearance behind this "bench" when the lid is open it needs to be in line with the back of the bench. The thickness of that red portion is about 2 1/4 inches.

Like I said, I may have to redesign the lid if I don't want to use the SOSS hinges.
Carl HmS is offline
post #7 of 17 Old 05-19-2013, 09:55 AM
Senior Member

Dave Paine's Avatar

Join Date: May 2012
Location: Eastern PA
Posts: 7,222
View Dave Paine's Photo Album My Photos
You really should post a picture or sketch. I am not "getting the picture" like other readers.

If we do not fully understand, we cannot help.

You posted the renderings just as I typed. Now I understand.
Dave Paine is offline
post #8 of 17 Old 05-19-2013, 09:58 AM
Senior Member

Dave Paine's Avatar

Join Date: May 2012
Location: Eastern PA
Posts: 7,222
View Dave Paine's Photo Album My Photos
Dave Paine is offline
post #9 of 17 Old 05-19-2013, 10:01 AM
Member

Join Date: May 2013
Location: Tulsa, OK
Posts: 45
View MrElliott1982's Photo Album My Photos
Just make ita captured lid and secure it with a few screws. Our will you need to get into this storage all the time?
MrElliott1982 is offline
post #10 of 17 Old 05-19-2013, 10:40 AM
Senior Member

Join Date: Sep 2011
Posts: 25,995
View Steve Neul's Photo Album My Photos
That close to the wall would it really hurt to have the barrel of a butt hinge sticking up. You could just cut a strip 1 1/2"x1 1/2" to hinge the lid on. You could also just make the lid to lift completely out instead of hinging it.
Steve Neul is offline
post #11 of 17 Old 05-19-2013, 11:49 AM
Wood Snob

Al B Thayer's Avatar

Join Date: Dec 2011
Posts: 5,963
View Al B Thayer's Photo Album My Photos
Extend the red section up and the blue section out. Your drawings show two different hinge points. You ant even make that open without the hinge.

Al

Friends don't let friends use stamped metal tools sold at clothing stores.


Al B Thayer is offline
post #12 of 17 Old 05-19-2013, 01:21 PM
Old School

cabinetman's Avatar

Join Date: Jul 2007
Location: So. Florida
Posts: 24,027
View cabinetman's Photo Album My Photos
Quote:
Originally Posted by Dave Paine View Post
From the overlay description, it may not allow more than "
.
Name:  00h5401d2.gif
Views: 5702
Size:  9.3 KB







.
cabinetman is offline
post #13 of 17 Old 05-19-2013, 01:27 PM
Old School

cabinetman's Avatar

Join Date: Jul 2007
Location: So. Florida
Posts: 24,027
View cabinetman's Photo Album My Photos
Barrel or Soss hinges have no adjustment features, and have to be bored exactly for a good match. An option would be to make the vertical back section stepped, so the overlay would not be greater than ", or, just make the lid overlay " and add a filler strip behind.







.
cabinetman is offline
post #14 of 17 Old 05-19-2013, 01:47 PM
The New Guy

Join Date: Dec 2011
Location: Down south, where the food is good.
Posts: 1,200
View Itchytoe's Photo Album My Photos
Extend your red board up to the height of the top of the blue board, then put the hinge on top instead of behind. Use a decorative hinge instead of a small almost invisible hinge and it will look more intentional.
Itchytoe is offline
post #15 of 17 Old 05-19-2013, 02:43 PM
Senior Member

Join Date: Mar 2013
Posts: 994
View 4DThinker's Photo Album My Photos
If you can do a little metal work, you could make your own custom hinges. Minumim of two required, and a small l-bracket required to attach to the underside of the lid. You'll also need a 1/2" deep slot in the red part for them in the closed position. Bolt to the inside of the storage bin.

4DThinker is offline
post #16 of 17 Old 05-19-2013, 03:42 PM Thread Starter
Junior Member

Join Date: May 2013
Posts: 4
View Carl HmS's Photo Album My Photos
Thanks for all the suggestions. What I ended up going with was a hinge that mounts to the front of a face frame instead of the side like most european hinges. Like this:

http://www.lowes.com/ProductDisplay?...llow&cId=PDIO1

I mounted it to the top of the red piece which gave me the same result as a normal european hinge without the need to find one with a massive overlay.
Carl HmS is offline
post #17 of 17 Old 05-19-2013, 05:42 PM
Wood Snob

Al B Thayer's Avatar

Join Date: Dec 2011
Posts: 5,963
View Al B Thayer's Photo Album My Photos
Quote:
Originally Posted by Carl HmS
Thanks for all the suggestions. What I ended up going with was a hinge that mounts to the front of a face frame instead of the side like most european hinges. Like this:

http://www.lowes.com/ProductDisplay?...llow&cId=PDIO1

I mounted it to the top of the red piece which gave me the same result as a normal european hinge without the need to find one with a massive overlay.
Good for you Carl. Because as you can see the advice is starting to get wild.

Al

Friends don't let friends use stamped metal tools sold at clothing stores.


Al B Thayer is offline
