Knotty Pine Installation

I am installing 6" t&g knotty pine on a cathedral ceiling. The board ends do not have the t&g on them....they are just butt joints. Do the joints need to land on a truss, or since the joint is captured by the t&g from the boards above and below, can the joint end up between the trusses?
Tackle Anything is offline
Sponsored Links
Advertisement

post #2 of 9 Old 11-19-2012, 10:43 AM
Senior Member

rrbell's Avatar

Join Date: Oct 2012
Posts: 134
View rrbell's Photo Album My Photos
Quote:
Originally Posted by Tackle Anything
I am installing 6" t&g knotty pine on a cathedral ceiling. The board ends do not have the t&g on them....they are just butt joints. Do the joints need to land on a truss, or since the joint is captured by the t&g from the boards above and below, can the joint end up between the trusses?
You can get a set of router bits to cut your own t&g's on the ends. It's always better to end up with your butt ends on a nailer of some kind. It creates more waste but usually not that much. How thick is your t&g ? If its at least 3/4" with the 6" width it would be pretty stable.
rrbell is offline
The Following User Says Thank You to rrbell For This Useful Post:
Tackle Anything (11-19-2012)
post #3 of 9 Old 11-19-2012, 11:00 AM Thread Starter
Junior Member

Join Date: Nov 2012
Posts: 3
View Tackle Anything's Photo Album My Photos
The t&G is 3/4".

I guess I could even put a scrap board behind the joint for added support.
Tackle Anything is offline
Sponsored Links
Advertisement

post #4 of 9 Old 11-19-2012, 06:08 PM
Senior Member

Join Date: Sep 2011
Posts: 26,051
View Steve Neul's Photo Album My Photos
I believe I would just use biscuits on the ends of the boards. Unless one of the boards cups you would never have a problem. I've seen a lot of knotty paneling put together with just butt joints and nothing but air behind it.
Steve Neul is online now
The Following User Says Thank You to Steve Neul For This Useful Post:
Eagleeye (11-20-2012)
post #5 of 9 Old 11-19-2012, 07:20 PM
Log dog

Dominick's Avatar

Join Date: Oct 2011
Location: Northeast illinois
Posts: 7,935
View Dominick's Photo Album My Photos
I agree with Steve on the biscuits. Or getting a router bit to do the tongue and groove.
Or just miter the ends.

When it's rustic......it's rustic
Dominick is offline
post #6 of 9 Old 11-20-2012, 12:31 AM
Custom stair builder

Treeoflifestairs.com's Avatar

Join Date: Jan 2012
Posts: 241
View Treeoflifestairs.com's Photo Album My Photos
At least end it on a joist that you can nail into.

Check out some of my custom stairs
Treeoflifestairs.com is offline
post #7 of 9 Old 11-20-2012, 04:24 AM
Old School

cabinetman's Avatar

Join Date: Jul 2007
Location: So. Florida
Posts: 24,027
View cabinetman's Photo Album My Photos


Quote:
Originally Posted by Tackle Anything View Post
I am installing 6" t&g knotty pine on a cathedral ceiling. The board ends do not have the t&g on them....they are just butt joints. Do the joints need to land on a truss, or since the joint is captured by the t&g from the boards above and below, can the joint end up between the trusses?
Is there a ceiling other than the joists? If there is, you can just shoot a brad nail or two. If there isn't, always landing on a joist will give a line of attachment (seam wise) on the overall look. Butt type joints for random lengths should be random.

I have used a slot cutter and had splines ready to go. Since the long edges are captive, the ends will likely not get that outta whack. T&G'ing the ends may have a good look, but whether it's a more finished look is questionable as it can draw attention to the board ends.






.
cabinetman is offline
post #8 of 9 Old 11-20-2012, 07:36 AM Thread Starter
Junior Member

Join Date: Nov 2012
Posts: 3
View Tackle Anything's Photo Album My Photos
Thanks everyone. I think I'll stick with the old tried and true method of landing on a rafter. It is a little more waste, but I'll never have any question that it was done right.
Tackle Anything is offline
post #9 of 9 Old 12-08-2012, 06:24 PM
Junior Member

Join Date: Nov 2012
Posts: 28
View Homewright's Photo Album My Photos

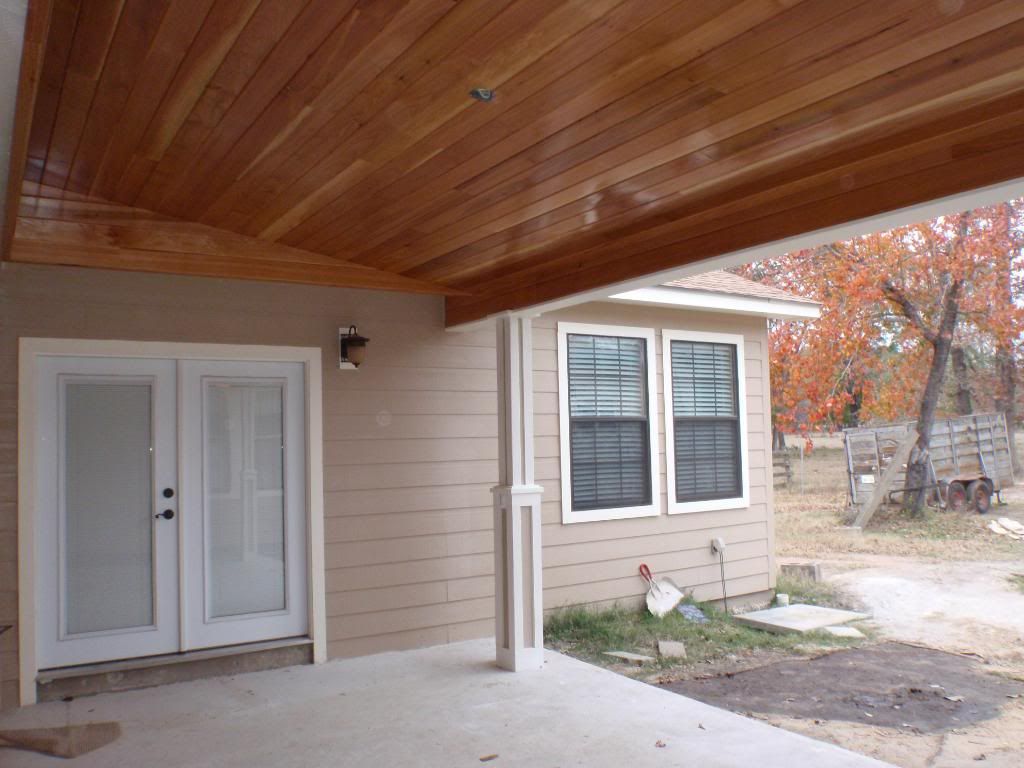

I like using a scarf joint on my ends, gluing them and landing them on a joist. Just my preference but if you take care and select matching grains, the effect approaches seamlessness. I did a patio ceiling using this method, did minimal sanding of the joints then shot the whole thing with poly. One thing you have to watch out for is varying widths of your t & g. There can be up to 1/4" variation in widths so presize mating boards before cutting and setting.

Homewright is offline
