post #21 of 32 Old 06-22-2013, 06:41 PM
Member

Join Date: Jun 2013
Posts: 46
View gowings's Photo Album My Photos
Ive watched these cabinet installers install the rails. They build the frames totally on the workbench and attach them with angle brackets.
Attached Images

gowings is offline
Sponsored Links
Advertisement

post #22 of 32 Old 06-22-2013, 09:02 PM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 27,171
View woodnthings's Photo Album My Photos
Set the frame back from the front ...

Setting the frame back a little will eliminate the need for an exact match, a shadow will "hide" a color deviation. It will look intended also, rather than attempting to be flush and not perfect. Keep the frame as narrow as possible because you're just hiding the fixtures, and the only way to see them would be to lean over and look upward. A normal person standing will not see them.
Nice looking cabinets BTW!

The answer to your question will only be as detailed and specific as the question is detailed and specific. Good questions also include a sketch or a photo that illustrates your issue. (:< D)
woodnthings is online now
post #23 of 32 Old 06-22-2013, 11:20 PM Thread Starter
Senior Member

Mark G's Avatar

Join Date: Dec 2011
Location: Burke, Virginia, USA
Posts: 611
View Mark G's Photo Album My Photos
What a great board this is. People still caring about my little problem.

I think it is solved. I decided to make my own rails. First I had to do a lot of experimentation with color and finish. What worked is cherry wood, stained with Minwax Red Mahogany 225, with a single coat of satin finish Arm-R-Seal oil and urethane topcoat.

The rails are 1.5 inches high and 3/4 inch thick. I laid many routed patterns on some samples so my wife could pick the one she thought matched the cabinets best. The best part of that exercise was that she bought me a Bench Dog Pro-Top router table to get the job done. Yes, I won the wife lottery 31 yrs ago.

I am using 6 x 1 7/8" drywall screws, countersunk, to attach to the underside of the cabinets. The cabinet bottoms are particle board covered with a Formica-like laminate mostly. In some places the bottoms are instead solid wood, but most surfaces are laminate.

I am backing up the screws with contact cement where there is laminate, and wood glue where the shelf bottom is wood. I'm very pleased with how strong this arrangement is feeling. I think it will help to prevent particle board sagging over the years, a bonus I had not thought about.

Thanks, everyone .
Mark G is offline
Sponsored Links
Advertisement

post #24 of 32 Old 07-28-2013, 10:09 PM
Senior Member

chopnhack's Avatar

Join Date: Dec 2007
Location: Somewhere sunny
Posts: 155
View chopnhack's Photo Album My Photos
Pics?
chopnhack is offline
post #25 of 32 Old 07-29-2013, 06:18 PM Thread Starter
Senior Member

Mark G's Avatar

Join Date: Dec 2011
Location: Burke, Virginia, USA
Posts: 611
View Mark G's Photo Album My Photos
Quote:
Originally Posted by chopnhack
Pics?
I was into photography in the 1970s, when it was actually harder. Now that it's easy I've gotten...what is the word for it? Oh, yeah. LAZY. I'll have to clean the kitchen, find the camera, take the pics, boot up the ole Windoze laptop, build a few projects while waiting for the laptop to boot up, connect the camera to the laptop(now where did I put that cable?), take six guesses as to what my Photobucket password is, exceed the limit on login attempts, request a new password, upload the pics, then relearn how to post pics on this board.

But I owe it to you guys for being so helpful.
Mark G is offline
post #26 of 32 Old 07-29-2013, 10:19 PM Thread Starter
Senior Member

Mark G's Avatar

Join Date: Dec 2011
Location: Burke, Virginia, USA
Posts: 611
View Mark G's Photo Album My Photos

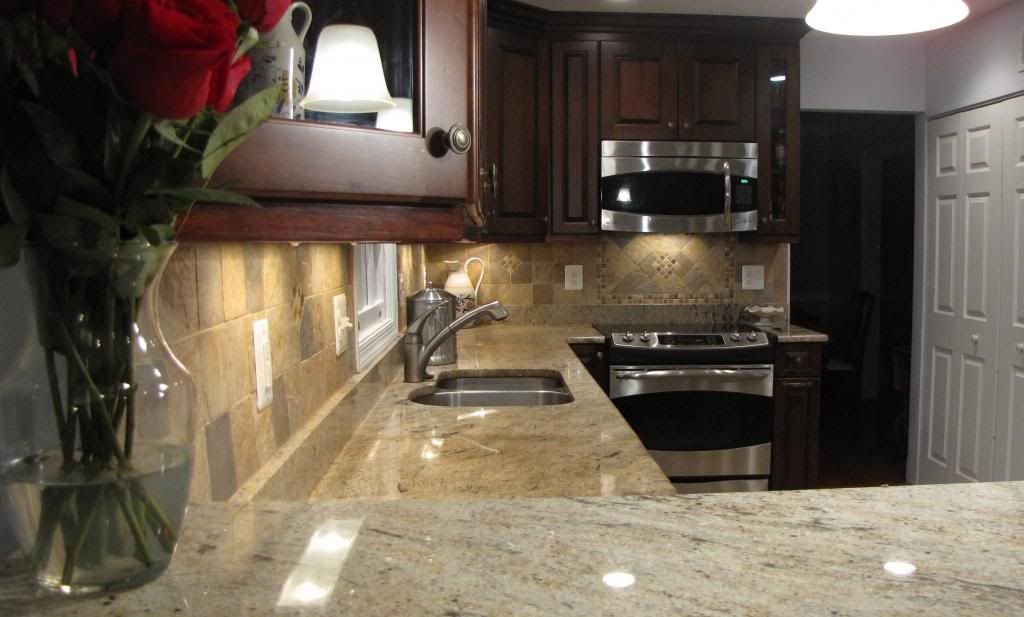

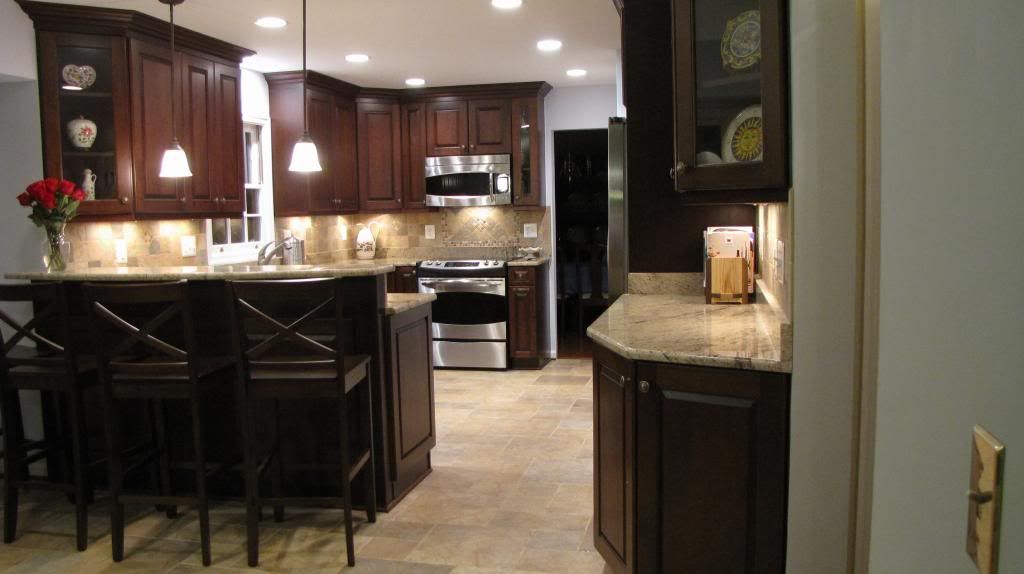

Here are a couple of pics that roughly match two pics in the original post. It doesn't look dramatic. It just looks "normal" to us.




Last edited by Mark G; 07-29-2013 at 10:21 PM. Reason: Add words
Mark G is offline
post #27 of 32 Old 07-30-2013, 06:46 AM
Senior Member

Join Date: Jan 2013
Posts: 138
View SebringDon's Photo Album My Photos
Those turned out great! Don't you just love it when a plan comes together.
SebringDon is offline
post #28 of 32 Old 07-30-2013, 10:29 AM Thread Starter
Senior Member

Mark G's Avatar

Join Date: Dec 2011
Location: Burke, Virginia, USA
Posts: 611
View Mark G's Photo Album My Photos
Quote:
Originally Posted by SebringDon View Post
Those turned out great! Don't you just love it when a plan comes together.
I very much love it. Making and installing them myself was so much more rewarding than sourcing pre-made light rails and using those. They would have been made of different wood and would have been very hard to color-match. I also would have had no control over the profile. You can barely see it in the pics, but there is a small cove cut on the bottom edge of the rails - my wife's choice for profile.

Best of all, I got a drill press and set of counter-sink drill bits out of the project.
Mark G is offline
post #29 of 32 Old 07-30-2013, 07:07 PM
Senior Member

jharris2's Avatar

Join Date: Jul 2012
Posts: 3,339
View jharris2's Photo Album My Photos
Great job Mark!

UC lights are hidden and the color match is dead on.

So you drilled and counter sunk the bottom of the new rails?

When I die, I want to go peacefully like my grandfather did in his
sleep. Not yelling and screaming like the passengers in his car.

Jack Handey
jharris2 is offline
post #30 of 32 Old 07-30-2013, 07:46 PM Thread Starter
Senior Member

Mark G's Avatar

Join Date: Dec 2011
Location: Burke, Virginia, USA
Posts: 611
View Mark G's Photo Album My Photos
Quote:
Originally Posted by jharris2
Great job Mark!

UC lights are hidden and the color match is dead on.

So you drilled and counter sunk the bottom of the new rails?
Yes. See my June 22 post, above, for details. Re-reading that post reminded me that I got a really nice router table out of the deal, too!
Mark G is offline
post #31 of 32 Old 07-30-2013, 08:09 PM
Senior Member

jharris2's Avatar

Join Date: Jul 2012
Posts: 3,339
View jharris2's Photo Album My Photos
I missed that Mark.

Drilling and countersinking the screws at the bottom of the rails would be just as effective but less time consuming than pocket screws.

Good call.

When I die, I want to go peacefully like my grandfather did in his
sleep. Not yelling and screaming like the passengers in his car.

Jack Handey
jharris2 is offline
post #32 of 32 Old 07-30-2013, 09:56 PM
Senior Member

chopnhack's Avatar

Join Date: Dec 2007
Location: Somewhere sunny
Posts: 155
View chopnhack's Photo Album My Photos
Came out really nice Mark! The color is really spot on considering it looks to be a different wood and the factory finish is always so difficult to replicate. Great work
chopnhack is offline
