Help with a built in

So i backed myself into a corner

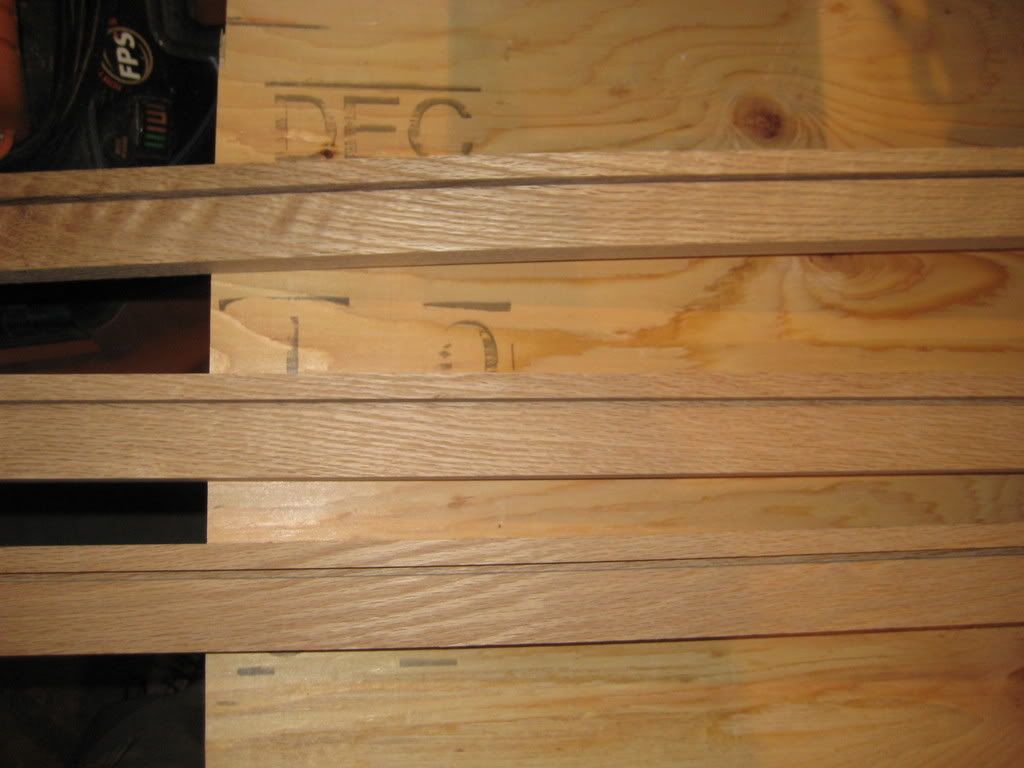

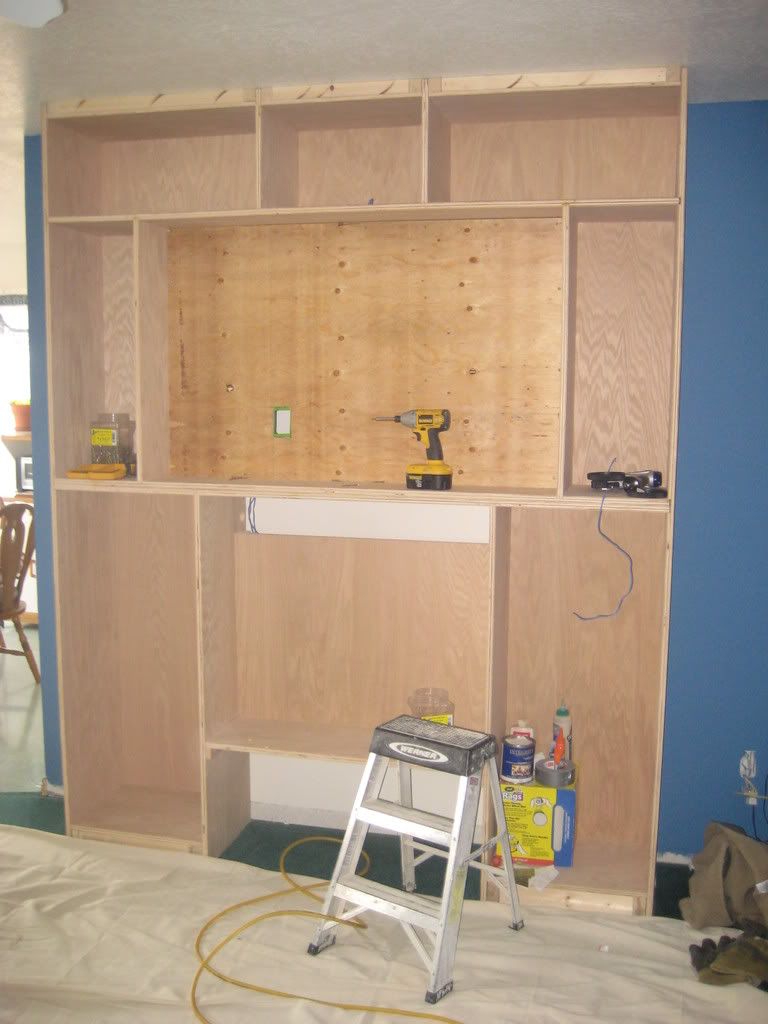

i have this built in for a flat screen. All the boxes are built and attached to the wall and now it is time to attach some face frames. My plan is to use biscuits in the edges of the plywood and i dado-ed an appropriate groove in the back of the face frames to fit onto the biscuits. i am positve the glue and biscuits will hold it once it is attached but my dilemma is in how to clamp it properly while the glue sets. Typically with cabinets you would clamps to the back but being that it is all built and attached i cant do that. Any ideas? I dont want to use any nails in the face or have to put plugs in pocket screw holes.



I suppose this is one of those "he who fails to plan, plans to fail" moments

john5mt is offline
Sponsored Links
Advertisement

post #2 of 10 Old 02-27-2009, 06:20 AM
Senior Member

Join Date: Jul 2008
Location: Florida Panhandle
Posts: 12,473
View GeorgeC's Photo Album My Photos
There are clamps that are designed to hold boards of this configuration. The look like a "U".

However, I would probably use an air gun shooting very small brads. These make such a small hole that a tiny amount of filler will fill the hole and not show.

Clamps you will probably have to buy. An air compressor you can probably rent.

G
GeorgeC is online now
post #3 of 10 Old 02-27-2009, 08:55 AM
Curmudgeon in Training

Geoguy's Avatar

Join Date: Feb 2008
Location: Collinsville, OK
Posts: 824
View Geoguy's Photo Album My Photos
Here's another frame clamp from Woodcraft ( I think it's $18) but I would also recommend a brad nailer or pin nailer (pin nailer uses 23 gauge fasteners).
Attached Images

Geoguy is offline
Sponsored Links
Advertisement

post #4 of 10 Old 02-27-2009, 09:28 AM
Old School

cabinetman's Avatar

Join Date: Jul 2007
Location: So. Florida
Posts: 24,027
View cabinetman's Photo Album My Photos
If you don't want to use a fastener, a clamp like this will work.






cabinetman is offline
post #5 of 10 Old 02-27-2009, 09:58 AM
Senior Member

clampman's Avatar

Join Date: Oct 2006
Location: Northeast USA
Posts: 163
View clampman's Photo Album My Photos
I have used both those clamps. The ones Cabinetman linked to work pretty well, but you would need a great many for your job. You will also need to cushion between the plywood and the opposing clamping screws or you will get dents in the plywood.The other clamps are primarily for butt joined face frame corners which pocket screws made obsolete for the most part in my opinion. They will work for that, but it will be a huge chore to get the u-shaped padded binding end of the clamp apart to remove them after the face frames are on.

Neither will work for your bottom rail down on the floor, and I would pull the unit off the wall.

In the future, you might think about installing the faceframes before putting the backs on. It makes gluing the faceframes much, much easier and better since you can position clamps where they are needed. It is also easier on glue cleanup since you can see and get to the glue from the back.

Experience is something you get only just right after you needed it.
http://www.miterclamp.com

Last edited by clampman; 02-27-2009 at 10:04 AM.
clampman is offline
post #6 of 10 Old 03-01-2009, 07:59 PM
Chief pencil holder

Join Date: Mar 2009
Posts: 280
View scribbles's Photo Album My Photos
Lots and Lots of masking tape. If you boxes are nice and flat, and square, you do not need much pressure. #1 reason joints fail is bad jointing not lack of pressure. Just line everything up, spread the glue well and use the tan 1" masking tape, not the blue stuff, the tan stuff will stretch. Let it dry overnight and you will be good to go it will never break. If you can not get an area to suck up a nail will hold that trouble spot. But you should not need it.
scribbles is offline
post #7 of 10 Old 03-19-2009, 03:01 AM Thread Starter
Finish Carpenter

john5mt's Avatar

Join Date: Feb 2009
Location: Helena, Montana
Posts: 45
View john5mt's Photo Album My Photos
Well i think it turned out all right

john5mt is offline
post #8 of 10 Old 03-19-2009, 03:01 AM Thread Starter
Finish Carpenter

john5mt's Avatar

Join Date: Feb 2009
Location: Helena, Montana
Posts: 45
View john5mt's Photo Album My Photos
Thanks for all your help and suggestions
john5mt is offline
post #9 of 10 Old 03-19-2009, 03:02 AM Thread Starter
Finish Carpenter

john5mt's Avatar

Join Date: Feb 2009
Location: Helena, Montana
Posts: 45
View john5mt's Photo Album My Photos
Just a note...it isnt completely done yet. I will post a pic when the drawer front, crown, base are in and it is loaded up with the customers crap.
john5mt is offline
post #10 of 10 Old 03-19-2009, 11:15 PM
Member

Join Date: Mar 2009
Posts: 75
View beerdog's Photo Album My Photos
What technique did you end up using?
