post #21 of 34 Old 07-09-2012, 10:36 PM
Trytore Member

Shop Dad's Avatar

Join Date: May 2011
Location: Central New Jersey
Posts: 2,764
View Shop Dad's Photo Album My Photos
That's what I was thinking, some sort of game. No more "tips" eh? Clue?

Second guess - Monopoly
Shop Dad is offline
Sponsored Links
Advertisement

post #22 of 34 Old 07-09-2012, 10:53 PM
Scotty D

mdntrdr's Avatar

Join Date: Dec 2009
Location: IL.
Posts: 4,479
View mdntrdr's Photo Album My Photos
Chutes and Ladders?

Scott
OH, wait a minute ............Yep!.............That's what he said!

"Like" us on facebook
www.ScottyDsWoodworks.com
Watch Our YouTube Video
mdntrdr is offline
post #23 of 34 Old 07-09-2012, 10:57 PM
Log dog

Dominick's Avatar

Join Date: Oct 2011
Location: Northeast illinois
Posts: 7,935
View Dominick's Photo Album My Photos
Candy land. Lol

When it's rustic......it's rustic
Dominick is offline
Sponsored Links
Advertisement

post #24 of 34 Old 07-09-2012, 11:09 PM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 27,706
View woodnthings's Photo Album My Photos
a "bored" game or a board game since it's made from boards....
with "on board" storage of the pieces

The answer to your question will only be as detailed and specific as the question is detailed and specific. Good questions also include a sketch or a photo that illustrates your issue. (:< D)
woodnthings is online now
post #25 of 34 Old 07-10-2012, 09:19 AM Thread Starter
Senior Member

WillemJM's Avatar

Join Date: Aug 2011
Location: Pinehurst, NC
Posts: 1,200
View WillemJM's Photo Album My Photos
Quote:
Originally Posted by woodnthings View Post
Backgammon? Chess?
Bill is the winner, this will be a chess table with both chess and checkers pieces included. Lots of lathe time coming up. It's a bit adventurous, but I'll attempt to glue-up, turn and attach the legs tonight. I have the picture in my mind, without drawings, sometimes these things donít quite turn out the way we expected they would.

Pure mathematics is, in it's way, the poetry of logical ideas. - Albert Einstein.
WillemJM is offline
The Following 2 Users Say Thank You to WillemJM For This Useful Post:
Dominick (07-10-2012), woodnthings (07-10-2012)
post #26 of 34 Old 07-10-2012, 09:42 PM Thread Starter
Senior Member

WillemJM's Avatar

Join Date: Aug 2011
Location: Pinehurst, NC
Posts: 1,200
View WillemJM's Photo Album My Photos

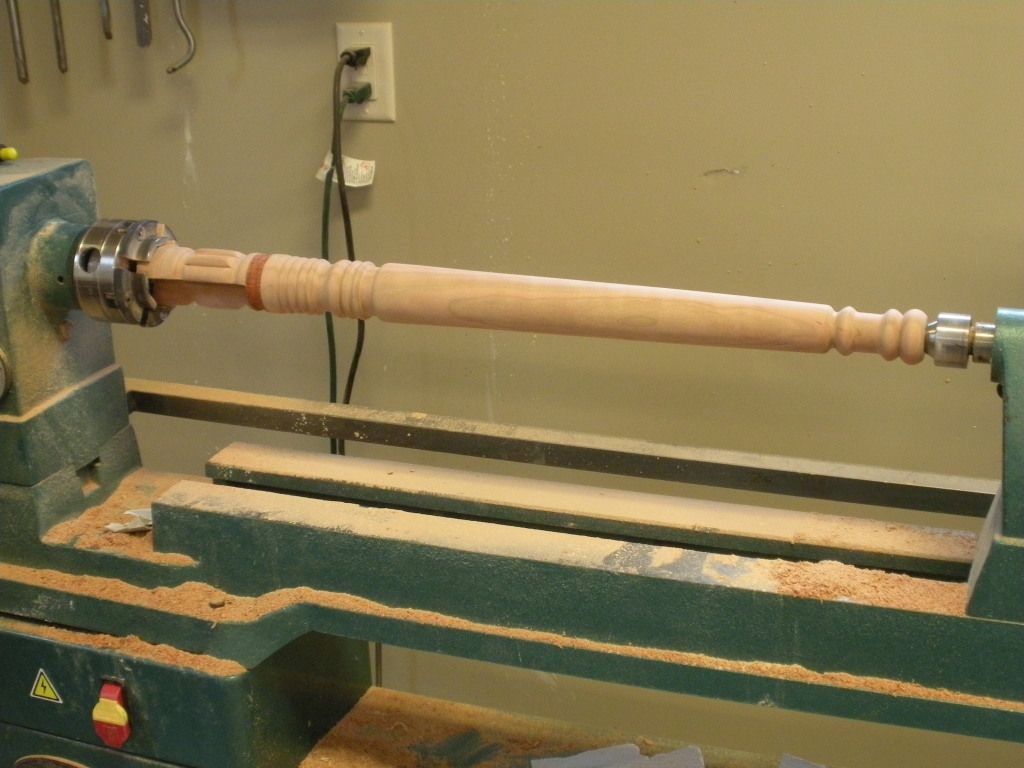

Leg ready in the lathe using cherry. The flutes were done on a router table, with a very simple 10 minute jig, the 1/4 cut out on the table saw, then the top spindle, Padauk slice and bottom stick were glued together with two 1/2" dowels through all. After about 30 minutes drying, the legs were turned.

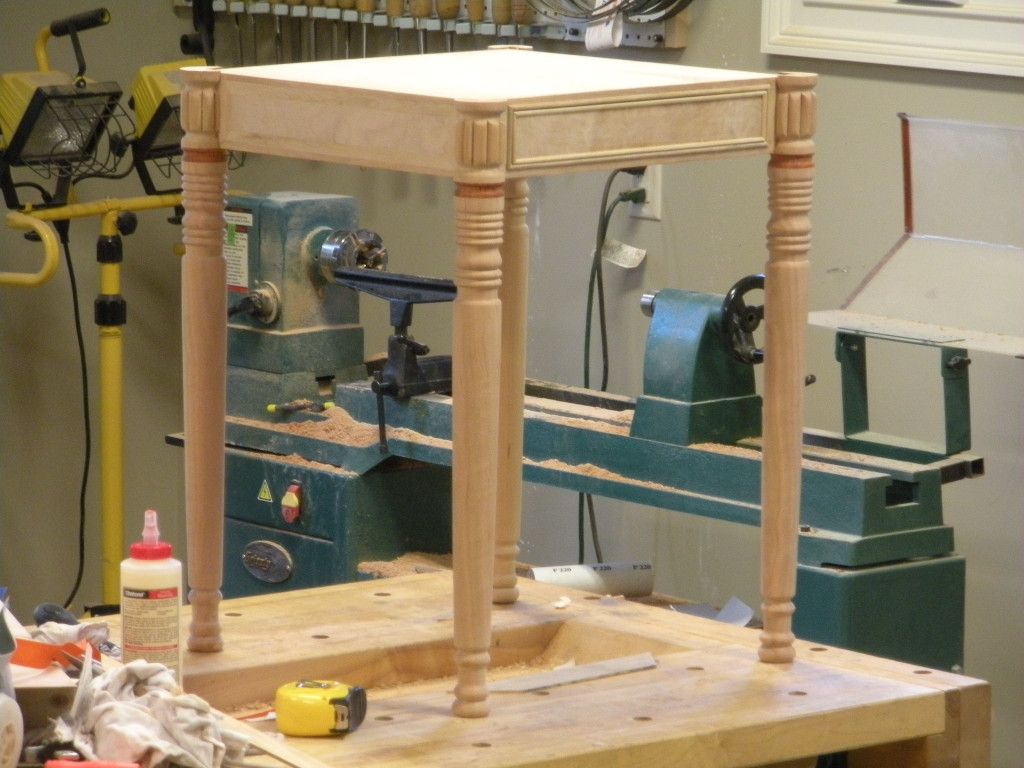

Legs attached to the box, glued and clamped using a band clamp.



More tomorrow, we will start working on the table top.

Pure mathematics is, in it's way, the poetry of logical ideas. - Albert Einstein.
WillemJM is offline
post #27 of 34 Old 07-10-2012, 10:06 PM
Log dog

Dominick's Avatar

Join Date: Oct 2011
Location: Northeast illinois
Posts: 7,935
View Dominick's Photo Album My Photos
That's starting to take shape. Now that we know what it is. Looking good.

When it's rustic......it's rustic
Dominick is offline
post #28 of 34 Old 07-10-2012, 11:41 PM
I wood if I could.

Chaincarver Steve's Avatar

Join Date: Jul 2011
Location: Lakeland, Florida
Posts: 3,976
View Chaincarver Steve's Photo Album My Photos
Looking great. I really, really like the disc of padauk in the legs. That's classy.

Would you mind showing how you did the fluting?
Chaincarver Steve is offline
post #29 of 34 Old 07-11-2012, 09:17 PM Thread Starter
Senior Member

WillemJM's Avatar

Join Date: Aug 2011
Location: Pinehurst, NC
Posts: 1,200
View WillemJM's Photo Album My Photos
Quote:
Originally Posted by Chaincarver Steve View Post
Looking great. I really, really like the disc of padauk in the legs. That's classy.

Would you mind showing how you did the fluting?

Thx for the complement.

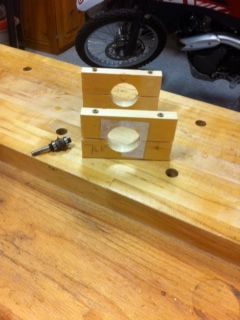

The flutes on the router table, jig:
Running seriously against time on this project, so this was really Jury rigged. Two pieces of pine with holes, dry wall screws and an index drawing glued to one. The router bit is from Amana. If I had more time, or a lot of flutes to do, I would make a proper jig.


Pure mathematics is, in it's way, the poetry of logical ideas. - Albert Einstein.
WillemJM is offline
The Following User Says Thank You to WillemJM For This Useful Post:
Chaincarver Steve (07-11-2012)
post #30 of 34 Old 07-11-2012, 09:20 PM
Senior Member

Join Date: Nov 2011
Location: Aurora, Illinois
Posts: 265
View Icutone2's Photo Album My Photos
WOW GREAT LOOKING LEGS! Good job!
Lee
Icutone2 is offline
post #31 of 34 Old 07-11-2012, 09:28 PM
I wood if I could.

Chaincarver Steve's Avatar

Join Date: Jul 2011
Location: Lakeland, Florida
Posts: 3,976
View Chaincarver Steve's Photo Album My Photos
Quote:
Originally Posted by WillemJM View Post
Thx for the complement.
The flutes on the router table, jig:
Running seriously against time on this project, so this was really Jury rigged. Two pieces of pine with holes, dry wall screws and an index drawing glued to one. The router bit is from Amana. If I had more time, or a lot of flutes to do, I would make a proper jig.

Ok, I think I get the general idea. You use those to hold the workpiece still whilst routing the flutes.
Chaincarver Steve is offline
post #32 of 34 Old 07-11-2012, 09:34 PM Thread Starter
Senior Member

WillemJM's Avatar

Join Date: Aug 2011
Location: Pinehurst, NC
Posts: 1,200
View WillemJM's Photo Album My Photos
Progress tonight.

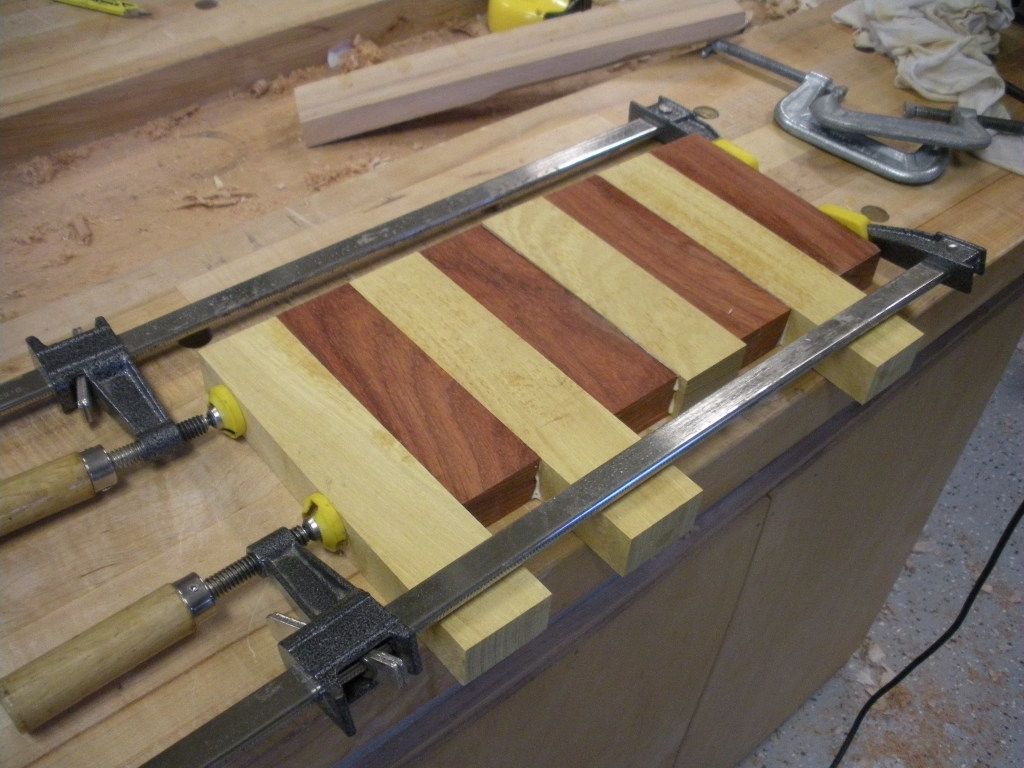

Cut 1 3/4 strips from my off-cuts Padauk and Pau Amarelo. Not worried about making more off-cuts, they will become either checkers or chess pieces. Glue the strips together and go watch TV for 20 minutes.

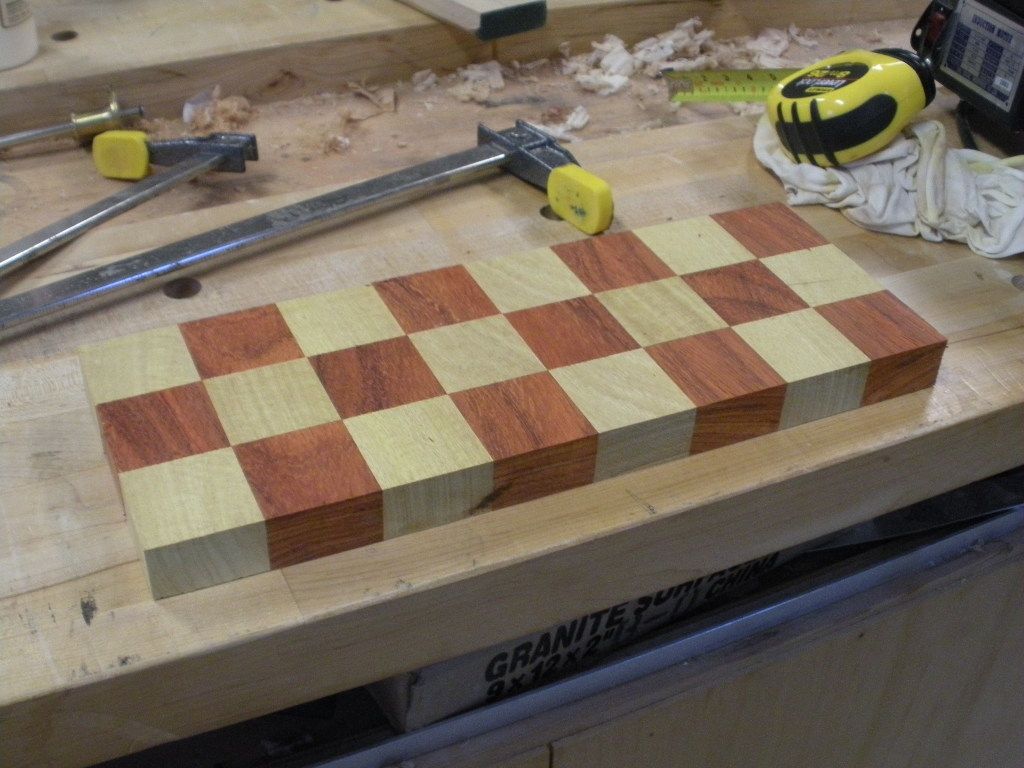

Cut the glue-up across the grain, so we have three blocked strips, placed neatly together. Slice 3/32" veneer strips from these.



Use 1/2" Domestic Birch Ply as for the box as the substrate and veneer the ply with the checker strips, some mitered figured soft maple and edge the ply with Cherry hardwood. After giving this about 30 minutes (Risky) I hand planed the surface to get the veneer down to 1/16". No sanding on this top, if you know Padauk, next to a light wood, you would know why. To finish plane, one needs special unconventional angles on the iron, as there is grain direction all over the place and Padauk tears out like no other.

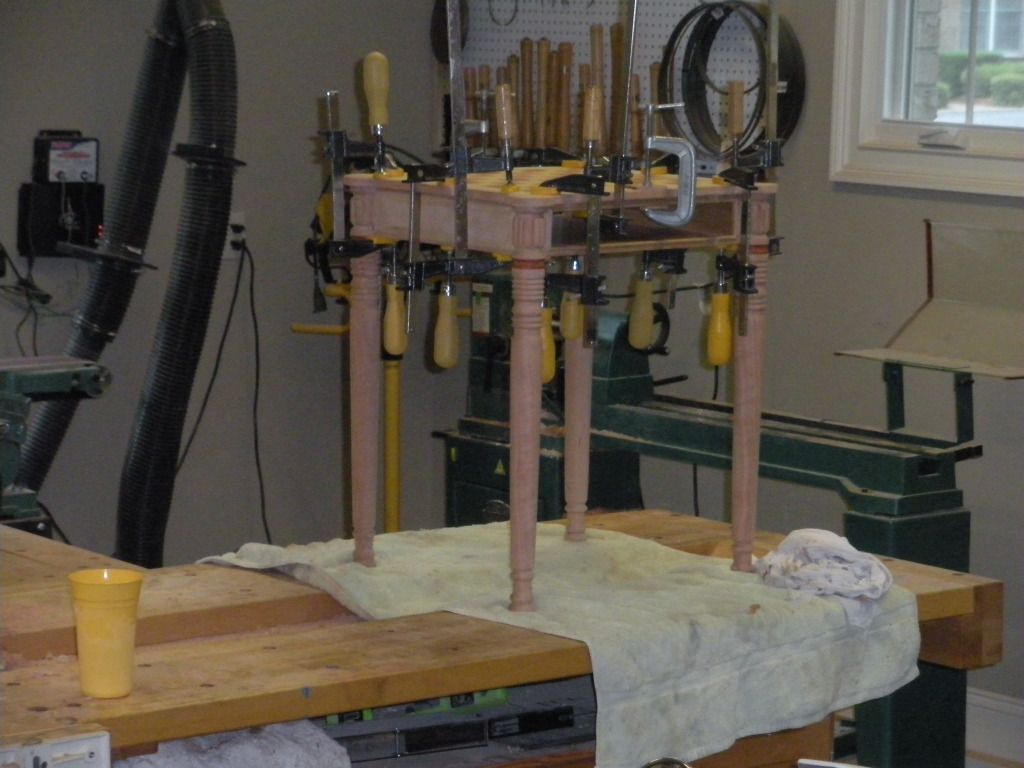

The top is glued onto the box, two 1/2" Birch Ply's using same grain orientation laminated basically. You can never have enough clamps.




Tomorrow evening we start with the chess pieces, 32 off and 24 checker pieces, must finish this Saturday afternoon.

Pure mathematics is, in it's way, the poetry of logical ideas. - Albert Einstein.
WillemJM is offline
post #33 of 34 Old 07-11-2012, 09:36 PM
Log dog

Dominick's Avatar

Join Date: Oct 2011
Location: Northeast illinois
Posts: 7,935
View Dominick's Photo Album My Photos
Wow !!!!! That's some fine workmanship.
I'm really liking the design of this. It's going to look sharp with a finish. Can't wait to se what you do for the pieces.

When it's rustic......it's rustic
Dominick is offline
post #34 of 34 Old 07-11-2012, 09:40 PM Thread Starter
Senior Member

WillemJM's Avatar

Join Date: Aug 2011
Location: Pinehurst, NC
Posts: 1,200
View WillemJM's Photo Album My Photos
Quote:
Originally Posted by Icutone2 View Post
WOW GREAT LOOKING LEGS! Good job!
Lee
Thx. Some times I will say that to my wife.

Pure mathematics is, in it's way, the poetry of logical ideas. - Albert Einstein.
WillemJM is offline
