Problem Making a Zero Clearance Insert for 45 Degrees (Solved)

I wanted to cut some 45 degree miters on my right-tilt Unisaw and had a blank UHMW table insert laying around. I decided to make it a dedicated zero clearance insert for when the blade is at 45 degrees.

I knew the 10" blade wouldn't clear the bottom of the insert when cranked all the way down so I did the initial cut with an 8" dado (end) blade. When I tried to put the insert on with the 10" blade, I still can't get it on. I try to slip the insert over the blade when it's raised but it won't align with the table to drop into it's recess because of the angle. When the blade is lowered all the way it still won't line up with the new slot in the insert because it sticks up too high.

Any ideas for a quick fix? I guess I could rout out the bottom of the insert on the router table but I better be accurate.
Bill

Last edited by dodgeboy77; 01-28-2013 at 05:14 PM.
dodgeboy77 is offline
Sponsored Links
Advertisement

post #2 of 12 Old 01-28-2013, 12:37 PM
Scotty D

mdntrdr's Avatar

Join Date: Dec 2009
Location: IL.
Posts: 4,479
View mdntrdr's Photo Album My Photos
I use a dedicated sled.

Scott
OH, wait a minute ............Yep!.............That's what he said!

"Like" us on facebook
www.ScottyDsWoodworks.com
Watch Our YouTube Video
mdntrdr is offline
post #3 of 12 Old 01-28-2013, 01:18 PM Thread Starter
Senior Member

dodgeboy77's Avatar

Join Date: Mar 2009
Location: Bucks County, PA
Posts: 1,768
View dodgeboy77's Photo Album My Photos
I considered the sled idea because of it's accuracy. However, the project I'm building requires tray/drawer sides that are taller than a sled could cut. Maybe I should have referred to them as bevels rather than miters but I think you get the idea.

Bill
dodgeboy77 is offline
Sponsored Links
Advertisement

post #4 of 12 Old 01-28-2013, 01:24 PM
Senior Member

Dave Paine's Avatar

Join Date: May 2012
Location: Eastern PA
Posts: 7,222
View Dave Paine's Photo Album My Photos
I do not recall seeing ZCI for bevel cuts.

I appreciate the challenge of getting the insert to go around the tilted blade.

You may need to round as you stated, or go back to square 1 and make one which is in two parts so you can place the pieces around the blade at the cutting height.
Dave Paine is offline
post #5 of 12 Old 01-28-2013, 03:49 PM
I <3 the smell of sawdust

Join Date: Dec 2012
Posts: 327
View JohnnyTooBad's Photo Album My Photos
Quote:
Originally Posted by Dave Paine View Post
I do not recall seeing ZCI for bevel cuts.

I appreciate the challenge of getting the insert to go around the tilted blade.

You may need to round as you stated, or go back to square 1 and make one which is in two parts so you can place the pieces around the blade at the cutting height.

^^This. How about slicing the insert in half? The only problem I see is how do you attach it to the table? Does your table use 2 screws or 4 or?? If you cut it at the screw holes, flathead screws would try to separate it. Would it stay in place with no screws? Or maybe recess it deeper and use round headed screws with a washer (lock washer), to hold it in place.
JohnnyTooBad is offline
post #6 of 12 Old 01-28-2013, 05:06 PM Thread Starter
Senior Member

dodgeboy77's Avatar

Join Date: Mar 2009
Location: Bucks County, PA
Posts: 1,768
View dodgeboy77's Photo Album My Photos
Thanks for your advice, guys! I took another look at the situation today. I found the blade was about 1/8" below the table when it was all the way down at 45 degrees. So I figured out a safe way to lower the insert onto the blade. I screwed a piece of 2x3 to the finger hole in the front of the insert. Then I hooked the insert in place on the saw by its pin in the rear, then used the 2x3 to slowly lower the insert onto the blade with the saw running.

Obviously I was standing at the rear of the saw to do this. I had a magnetic featherboard clamped in front of the insert in case it wanted to take off. It cut very smoothly and with no problem at all. I have a healthy regard for table saws and kickback situations so I was happy this went well, as I didn't figure this method was 'by the book'.

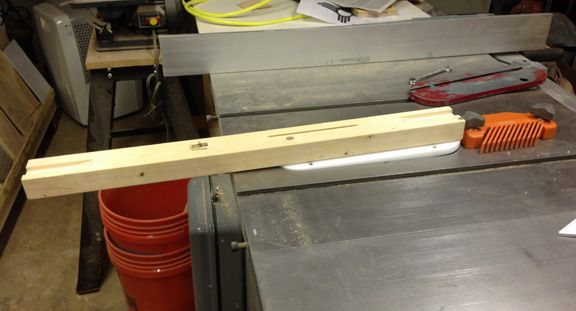

Here's the assembly ready to cut:


Here's the bottom of the insert showing the cut and how I attached it to the board:

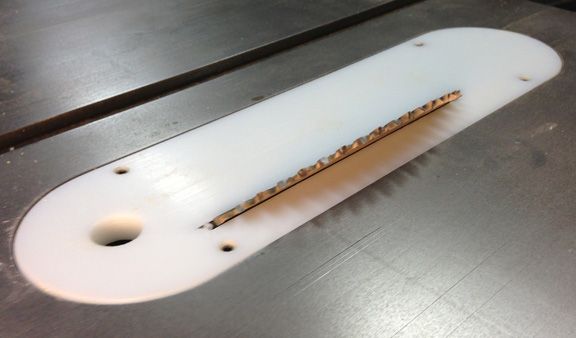

And here's the finished insert in place:


The only catch is that I have to have the blade all the way down to install or remove the insert - not a big deal at all.

Bill

Last edited by dodgeboy77; 01-28-2013 at 05:11 PM.
dodgeboy77 is offline
post #7 of 12 Old 01-28-2013, 05:10 PM
Senior Member

Dave Paine's Avatar

Join Date: May 2012
Location: Eastern PA
Posts: 7,222
View Dave Paine's Photo Album My Photos
Thanks for the update. Happy you were able to figure out a way. It is good to know this may be possible.
Dave Paine is offline
post #8 of 12 Old 01-28-2013, 05:40 PM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 27,157
View woodnthings's Photo Album My Photos
Quote:
Originally Posted by dodgeboy77 View Post
I wanted to cut some 45 degree miters on my right-tilt Unisaw and had a blank UHMW table insert laying around. I decided to make it a dedicated zero clearance insert for when the blade is at 45 degrees.

I knew the 10" blade wouldn't clear the bottom of the insert when cranked all the way down so I did the initial cut with an 8" dado (end) blade. When I tried to put the insert on with the 10" blade, I still can't get it on. I try to slip the insert over the blade when it's raised but it won't align with the table to drop into it's recess because of the angle. When the blade is lowered all the way it still won't line up with the new slot in the insert because it sticks up too high.

Any ideas for a quick fix? I guess I could rout out the bottom of the insert on the router table but I better be accurate.
Bill
That's what I would have done since you only need an 1/8" more..OR just use a smaller diameter blade. I found a 8 1/4 X 5/8 bore blade at HD last week. I don't have an immediate use for it but now I can think of one. Thanks, Bill

The answer to your question will only be as detailed and specific as the question is detailed and specific. Good questions also include a sketch or a photo that illustrates your issue. (:< D)
woodnthings is online now
post #9 of 12 Old 01-29-2013, 10:21 AM Thread Starter
Senior Member

dodgeboy77's Avatar

Join Date: Mar 2009
Location: Bucks County, PA
Posts: 1,768
View dodgeboy77's Photo Album My Photos
I cut the miters on my project (a letter tray) and things worked really well. I used a fine finish/plywood blade and I got nice, tight, accurate miters. I'm using relatively thin Cherry (5/16') that I resawed from 4/4 rough stock. I might have been able to do the miters using the miter gauge with the blade all the way up but I felt more comfortable doing it this way.
dodgeboy77 is offline
post #10 of 12 Old 09-02-2016, 02:20 AM
Junior Member

Join Date: Aug 2016
Posts: 4
View WoodandMetal's Photo Album My Photos
Quote:
Originally Posted by dodgeboy77 View Post
I cut the miters on my project (a letter tray) and things worked really well. I used a fine finish/plywood blade and I got nice, tight, accurate miters. I'm using relatively thin Cherry (5/16') that I resawed from 4/4 rough stock. I might have been able to do the miters using the miter gauge with the blade all the way up but I felt more comfortable doing it this way.
Woodnthings,

...OR just use a smaller diameter blade

I just saw your suggestion about cutting a ZCI at an a 45 by starting with a smaller blade. Thanks for sharing that tip. I'll do that for my Deck Balluster cutting

Dave
WoodandMetal is offline
post #11 of 12 Old 09-02-2016, 10:17 PM
Senior Member

Join Date: Aug 2012
Location: British Columbia, Canada
Posts: 5,652
View FrankC's Photo Album My Photos
Quote:
Originally Posted by WoodandMetal View Post
Woodnthings,

...OR just use a smaller diameter blade

I just saw your suggestion about cutting a ZCI at an a 45 by starting with a smaller blade. Thanks for sharing that tip. I'll do that for my Deck Balluster cutting

Dave
If you are cutting a profiled baluster a zero clearance insert will make no difference except on the squared ends

Wise men speak because they have something to say; fools because they have to say something -Plato

FrankC
http://sawdustmaking.com
http://woodworkerglossary.com
FrankC is offline
post #12 of 12 Old 09-02-2016, 10:17 PM
Senior Member

Join Date: Aug 2012
Location: British Columbia, Canada
Posts: 5,652
View FrankC's Photo Album My Photos
Quote:
Originally Posted by WoodandMetal View Post
Woodnthings,

...OR just use a smaller diameter blade

I just saw your suggestion about cutting a ZCI at an a 45 by starting with a smaller blade. Thanks for sharing that tip. I'll do that for my Deck Balluster cutting

Dave
If you are cutting a profiled baluster a zero clearance insert will make no difference except on the squared ends

Wise men speak because they have something to say; fools because they have to say something -Plato

FrankC
http://sawdustmaking.com
http://woodworkerglossary.com
FrankC is offline
