Jigsaw gear position

Greetings, I have an old Sears Craftsman Jigsaw, model 315.231120. I opened it up to add more grease but the two gears inside came apart before I could mark their positions. This might be a long shot but I am hoping someone knows how these gears go back together. I randomly placed them in for the picture below.
Attached Images

kanuski is offline
Sponsored Links
Advertisement

post #2 of 10 Old 06-28-2020, 08:42 AM
Senior Member

Alchymist's Avatar

Join Date: Jan 2011
Location: Central PA
Posts: 2,276
View Alchymist's Photo Album My Photos
Sometimes the gears are marked with a tiny dimple near a tooth indicating alignment. If no markings, i'd start with the two rollers on the gears next to each other, and check for vibration. If that doesn't work, and no owners manual info, it's cut and try. One of those gears drives the blade, the other one drives the counterweight.
gmercer_48083 likes this.

Alexis de Tocqueville was a very smart man.
Alchymist is offline
post #3 of 10 Old 06-28-2020, 11:41 AM
Senior Member

Join Date: Apr 2016
Location: Troy Michigan USA
Posts: 1,203
View gmercer_48083's Photo Album My Photos
I agree with Alchymist, before testing with power... rotate the motor by hand through a complete cycle to make sure the two counteracting parts do not collide.

Gary

Woodworking is like wetting myself....Only I know that warm feeling!
gmercer_48083 is offline
Sponsored Links
Advertisement

post #4 of 10 Old 06-29-2020, 09:02 AM Thread Starter
Junior Member

Join Date: Jun 2020
Posts: 3
View kanuski's Photo Album My Photos
Thanks. I will give it a try.
kanuski is offline
post #5 of 10 Old 06-29-2020, 09:28 AM
Senior Member

Join Date: Jan 2020
Location: Oakland, CA, USA
Posts: 160
View kiwi_outdoors's Photo Album My Photos
my guess is to install gears with the two driven slots as far apart as possible , or as close together as possible, to provide the 180 degree phase

Retired engineer-bureaucrat in Oakland, CA. Been working with wood since the 1960's.
kiwi_outdoors is offline
post #6 of 10 Old 06-29-2020, 09:30 AM
Moderator

John Smith_inFL's Avatar

Join Date: Jul 2018
Location: Central Florida
Posts: 2,406
View John Smith_inFL's Photo Album My Photos
let us know what worked so we will know
if this issue ever comes up again.

.

there is no educational alternative to having a front row seat in the School of Hard Knocks.

Last edited by John Smith_inFL; 06-29-2020 at 09:34 AM.
John Smith_inFL is offline
post #7 of 10 Old 06-29-2020, 09:54 AM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 27,160
View woodnthings's Photo Album My Photos
I found it on You Tube

This video shows the gear positions when he disassembles it at 2:43 in:
https://youtu.be/nwRmD-mOZxU?t=163


The full video here:

The answer to your question will only be as detailed and specific as the question is detailed and specific. Good questions also include a sketch or a photo that illustrates your issue. (:< D)
woodnthings is offline
post #8 of 10 Old 06-29-2020, 05:03 PM Thread Starter
Junior Member

Join Date: Jun 2020
Posts: 3
View kanuski's Photo Album My Photos
Thanks

You helped me realize that the top roller was for the counter weight and needed to be moving the opposite direction of the blade. I placed the two rollers next to each other so the counterweight would be moving up while the blade moved down. It works perfectly. Thanks for all the advice.
Alchymist and John Smith_inFL like this.
kanuski is offline
post #9 of 10 Old 06-30-2020, 11:18 AM
Senior Member

Join Date: Apr 2016
Location: Troy Michigan USA
Posts: 1,203
View gmercer_48083's Photo Album My Photos
I have the same saw as the video that Woodnthings posted, That gave me a better understanding of what is involved if I ever need to re grease mine. Thanks!

Alchymist gave the first clue... about the counter weight involved... made sense, Thank you also.

Gary

Woodworking is like wetting myself....Only I know that warm feeling!
gmercer_48083 is offline
post #10 of 10 Old 06-30-2020, 02:30 PM
Senior Member

_Ogre's Avatar

Join Date: Feb 2013
Location: Motown
Posts: 653
View _Ogre's Photo Album My Photos


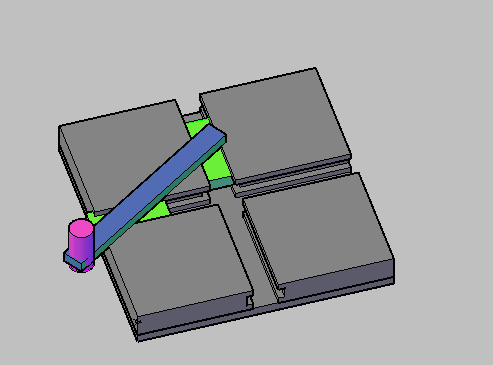

_Ogre is offline
