Timber Slab Dining Table

Hi everyone, My name is Troy, I am from Australia and I am about to create a dining table using a slab of english elm. I am looking for some designs or plans and ideas if anyone knows of any on the web.
I will post some pictures later as it starts to happen.
jesterchef is offline
Sponsored Links
Advertisement

post #2 of 59 Old 11-04-2006, 08:27 AM
Senior Member

Big Dave's Avatar

Join Date: Sep 2006
Location: Southwest Mo.
Posts: 1,586
View Big Dave's Photo Album My Photos
Send a message via Yahoo to Big Dave
How thick are the slabs? Do they still have the bark on them?

Do one thing at a time, do it well, then move on.
www.bigdaveswoodworks.com
Big Dave is offline
post #3 of 59 Old 11-04-2006, 11:57 AM
Junior Member

Join Date: Nov 2006
Posts: 6
View reveivl's Photo Album My Photos
Here's one I built years ago. Don't know all the names for the various pieces, but: The top and legs are Douglas Fir, the horizontals on the floor are Arbutus, the horizontal between those is a butterfly'd Yellow cedar bole.
Attached Thumbnails
Click image for larger version

Name:	DSCF0004crop.jpg
Views:	325
Size:	54.4 KB
ID:	88

Click image for larger version

Name:	DSCF0005crop.jpg
Views:	470
Size:	65.0 KB
ID:	89

reveivl is offline
post #4 of 59 Old 11-04-2006, 12:06 PM
Junior Member

Join Date: Nov 2006
Posts: 6
View reveivl's Photo Album My Photos
And here's one I didn't do, but is in a building that I built this spring. It's a bit weird for my taste, but anyway...
Attached Thumbnails
Click image for larger version

Name:	DSCF10crop.jpg
Views:	6013
Size:	58.3 KB
ID:	90

Attached Images

reveivl is offline
post #5 of 59 Old 11-04-2006, 08:26 PM
Senior Member

Big Dave's Avatar

Join Date: Sep 2006
Location: Southwest Mo.
Posts: 1,586
View Big Dave's Photo Album My Photos
Send a message via Yahoo to Big Dave

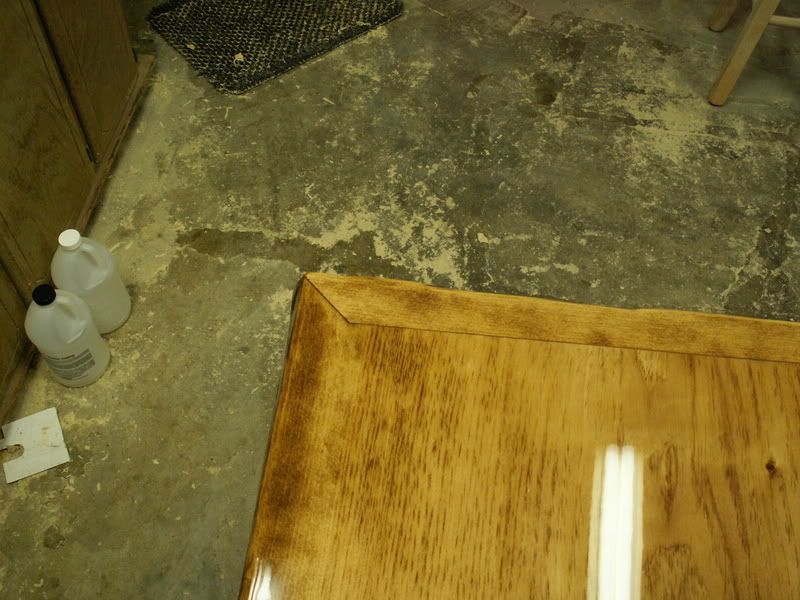

Ok here are a couple that I've done, actually the only two. One is just a long single peice of white pine that had the bark on both edges. It went to a local restaurant and that is the width they wanted. It is 12' long and about 30" wide. The second went to a home that had an alcove that they needed a table for. It was 67" wide by 72" long. It took 3 slabs to get the width and on the ends I let in a leftover peice of the barked edge I had to rip off to get the same look on all four sides.









The drips under the top were sanded off I just hadn't gotten too it before I took the picture. The finish on the tops is an epoxy finish called liquid glass. The finish on the bases is just plain old laquer.

Do one thing at a time, do it well, then move on.
www.bigdaveswoodworks.com
Big Dave is offline
post #6 of 59 Old 11-05-2006, 08:05 AM Thread Starter
Junior Member

jesterchef's Avatar

Join Date: Nov 2006
Location: Canberra Australia
Posts: 22
View jesterchef's Photo Album My Photos
Send a message via Skype™ to jesterchef
Wow guys, theyre brilliant, I love them.
The timber slabs are about 40mm thick but taper to about 80mm thick at one end, but I am going to put them through a thickening machine.
jesterchef is offline
post #7 of 59 Old 11-05-2006, 08:18 AM Thread Starter
Junior Member

jesterchef's Avatar

Join Date: Nov 2006
Location: Canberra Australia
Posts: 22
View jesterchef's Photo Album My Photos
Send a message via Skype™ to jesterchef
Here is one design I was thinking about, and my slabs the start of project.
Attached Thumbnails
Click image for larger version

Name:	Timber Slab Table Project 005.jpg
Views:	3731
Size:	62.9 KB
ID:	93

Click image for larger version

Name:	Timber Slab Table Project 004.jpg
Views:	626
Size:	46.1 KB
ID:	95

Attached Images

jesterchef is offline
post #8 of 59 Old 11-05-2006, 08:18 AM
Senior Member

Burlkraft's Avatar

Join Date: Oct 2006
Location: Northern Southern Wisconsin
Posts: 442
View Burlkraft's Photo Album My Photos
Those are some great looking tables...

Nothing like sitting down and pulling up a chair to a big old slab table..

We will harvest no burl before it's time.....
Burlkraft is offline
post #9 of 59 Old 11-05-2006, 09:04 AM
Senior Member

Big Dave's Avatar

Join Date: Sep 2006
Location: Southwest Mo.
Posts: 1,586
View Big Dave's Photo Album My Photos
Send a message via Yahoo to Big Dave
Those are some nice looking slabs Jesterchef.

Do one thing at a time, do it well, then move on.
www.bigdaveswoodworks.com
Big Dave is offline
post #10 of 59 Old 11-05-2006, 12:28 PM
Junior Member

Join Date: Nov 2006
Posts: 6
View reveivl's Photo Album My Photos
One phrase you don't hear with this furniture: "Hand me that table"!
reveivl is offline
post #11 of 59 Old 11-15-2006, 09:00 AM
Senior Member

Burlkraft's Avatar

Join Date: Oct 2006
Location: Northern Southern Wisconsin
Posts: 442
View Burlkraft's Photo Album My Photos
Hey Troy,

Any progress on those slabs???

Did you settle on a design yet

We will harvest no burl before it's time.....
Burlkraft is offline
post #12 of 59 Old 11-15-2006, 04:34 PM
Senior Member

Join Date: Nov 2006
Location: North Danville, Vermont
Posts: 283
View JP Sinclair's Photo Album My Photos
Slab table tops are great. I recently made a 3" thick bar top out of spalted flame white birch for a cusomer. It's still waiting to go into the kiln and final processing. I'll try to attach a pic here but I'm not sure how well I'll do......


JP Sinclair is offline
post #13 of 59 Old 11-15-2006, 04:39 PM
Senior Member

Join Date: Nov 2006
Location: North Danville, Vermont
Posts: 283
View JP Sinclair's Photo Album My Photos
Ok, that didn't work for $*##*. I knew there was a reason I work in sawdust and not technology......Sorry guys, I'll try to figure it out.
JP Sinclair is offline
post #14 of 59 Old 11-15-2006, 06:58 PM
Senior Member

Burlkraft's Avatar

Join Date: Oct 2006
Location: Northern Southern Wisconsin
Posts: 442
View Burlkraft's Photo Album My Photos
I love birch,,,That should be an awesome top.

Don't worry...you'll get the picture thing..

We will harvest no burl before it's time.....
Burlkraft is offline
post #15 of 59 Old 11-15-2006, 09:19 PM
Old Timer

TexasTimbers's Avatar

Join Date: Oct 2006
Location: Texas
Posts: 5,688
View TexasTimbers's Photo Album My Photos
I haven't worked with really big slabs yet but one thing I hear is that what you do to the topside you should do the same to the bottom or it will have defects over the years.
i.e. if you top it with 5 coats of clear you should not only coat the bottom, but coat it with 5 coats. I don't know the accuracy of this, but it seems to make sense. If you pour a gallon of PU on the top but leave the bottom bare, then the moisture is going to enter/exit out of the bottom at a much faster rate.
This is just book knowledge on my part though no experience.
TexasTimbers is offline
post #16 of 59 Old 11-15-2006, 09:25 PM
Senior Member

Big Dave's Avatar

Join Date: Sep 2006
Location: Southwest Mo.
Posts: 1,586
View Big Dave's Photo Album My Photos
Send a message via Yahoo to Big Dave
I haven't had any trouble yet but my stuff isn't 5 or 20 years old yet either. I have a coffee table that I built and only poly'd the top and not the bottom so I will watch and see. If the furniture peice is placed in a house then it should be ok as long as the relative humidity is kept constant. One thing that I stress to homeowners when I install a wood floor is to keep the relative humidity between 35% and 45%. my wood floors along with most other wood floors are only finished on the top side with no adverse affect. I'm not saying I'm right but these are my little tid-bits of knowledge.

Do one thing at a time, do it well, then move on.
www.bigdaveswoodworks.com
Big Dave is offline
post #17 of 59 Old 11-16-2006, 12:56 PM
Senior Member

Join Date: Nov 2006
Location: North Danville, Vermont
Posts: 283
View JP Sinclair's Photo Album My Photos


Ok, I clearly can't do this right.

The pic is on the gallery photos. I seem to be able to upload ok right from the CD but I think the image is just too big for this.

Last edited by JP Sinclair; 11-16-2006 at 01:13 PM. Reason: photo
JP Sinclair is offline
post #18 of 59 Old 11-16-2006, 01:09 PM
Old Timer

TexasTimbers's Avatar

Join Date: Oct 2006
Location: Texas
Posts: 5,688
View TexasTimbers's Photo Album My Photos
Quote:
Originally Posted by Big Dave View Post
. . .my wood floors along with most other wood floors are only finished on the top side with no adverse affect . . . .
That is a good point. I thought about it though and I think the difference is that the bottomside of floors are not exposed like the bottomside of a top. And like I said, I have zero empirical data to support what I have read.
I remember eeadin a really good thread about htis on Woodweb. Maybe I'll go digging later.
What is the oldest thick top you have kept track of and how did you finish it. Open question to all.
I have to take back what I said. I said I had no experience with thixk tops, nut the lawbook shelf I built for a law office many moons ago had 2" thick shelves, with PU on the tops and nothing on the bottom two shelves. The principal lawyer died and the office building has since been condemned but I think I can get access from the city building inspector. Maybe I should go look at the shelves just for the knowledge I could get.
TexasTimbers is offline
post #19 of 59 Old 11-16-2006, 04:26 PM
Senior Member

Burlkraft's Avatar

Join Date: Oct 2006
Location: Northern Southern Wisconsin
Posts: 442
View Burlkraft's Photo Album My Photos
I have 50 or so slab tables out there that are just finished on the top and sides. I only had one that took to bendin' and warpin' and it's the only honey locust table I ever made. The redwoods, oak, cherry, pine, walnut and buckeye tables are just like the day I finished them. I have used epoxy and poly and oil and they all seem to be fine.....Maybe I'm just lucky....

We will harvest no burl before it's time.....
Burlkraft is offline
post #20 of 59 Old 11-17-2006, 06:21 AM Thread Starter
Junior Member

jesterchef's Avatar

Join Date: Nov 2006
Location: Canberra Australia
Posts: 22
View jesterchef's Photo Album My Photos
Send a message via Skype™ to jesterchef
Thumbs up Progress so far

It is good to hear the info about using slabs as I have never before worked with them.
Here are some more pics of the timber, I bought some rosewood to build the frame and have been busy driving my slabs around to get them through a thickner machine.
It was great to see them when they came through the first time from raw timber to finished.

by the way JP sinclair to add a photo you need to resize it first then save it and then add it.
Attached Thumbnails
Click image for larger version

Name:	timber table pics 016.jpg
Views:	9277
Size:	54.4 KB
ID:	142

Click image for larger version

Name:	timber table pics 017.jpg
Views:	887
Size:	52.4 KB
ID:	143

Click image for larger version

Name:	timber table pics 020.jpg
Views:	276
Size:	65.7 KB
ID:	145

Click image for larger version

Name:	timber table pics 021.jpg
Views:	876
Size:	61.2 KB
ID:	146

Attached Images

jesterchef is offline
