Joining plywood

What is the best way to join the edges of plywood? If you were making a box and you did not want the ends of the plywood to show at the joint. Should I dado one of the ends so just the thickness of the outer veneer shows?
Bob Willing is offline
Sponsored Links
Advertisement

post #2 of 20 Old 09-19-2009, 10:29 AM
Senior Member

phinds's Avatar

Join Date: Mar 2009
Location: Central New York
Posts: 3,248
View phinds's Photo Album My Photos
the most common method, I believe, to totally hide the plywood end grain (or any other end grain for that matter) is the miter joint. Check it out here:

http://www.hobbithouseinc.com/person...ineryterms.htm

You may want to reinforce it with biscuits or a spline, all shown at that joinery glossary I just pointed you to.

Paul

You can never have too much pepperoni on your pizza or own too many clamps.
www.hobbithouseinc.com/personal/woodpics/
phinds is offline
post #3 of 20 Old 09-19-2009, 01:54 PM
Old School

Willie T's Avatar

Join Date: Jan 2009
Location: St. Petersburg, FL
Posts: 373
View Willie T's Photo Album My Photos
I think I'd use a lock miter joint.
Attached Thumbnails
Click image for larger version

Name:	35Lock%20Miter%20Joint.jpg
Views:	20704
Size:	13.8 KB
ID:	10790

Willie T is offline
post #4 of 20 Old 09-19-2009, 02:16 PM
Old School

cabinetman's Avatar

Join Date: Jul 2007
Location: So. Florida
Posts: 24,062
View cabinetman's Photo Album My Photos
Quote:
Originally Posted by Bob Willing View Post
What is the best way to join the edges of plywood? If you were making a box and you did not want the ends of the plywood to show at the joint. Should I dado one of the ends so just the thickness of the outer veneer shows?

That works good...looks like this:







cabinetman is offline
post #5 of 20 Old 09-19-2009, 03:48 PM
Old Methane Gas Cloud

Join Date: Jun 2009
Location: Huntington Beach, California
Posts: 3,500
View rrich's Photo Album My Photos
OR

You could glue a strip of matching hardwood to the edge of the plywood. Rather than hiding the edge, flaunt it.

Use the right tool for the job.

Rich (Tilting right)
Huntington Beach, California
Remember that when we have the "BIG ONE" everything east of the Rockies falls into the ocean.
rrich is offline
post #6 of 20 Old 09-19-2009, 05:26 PM Thread Starter
Senior Member

Join Date: Jul 2008
Location: UP of Michigan
Posts: 938
View Bob Willing's Photo Album My Photos
cabinetman

That is exactly what I had in mind. I tried the lock miter joint on some scrap pieces of plywood and this seems a little damgerous. I did not like the kick back because you are taking so much material all at once. I also had a problem with set-up. Another draw back is you need to attach a piece of wood to support the edge when you make the alternate edge that is when you set the wood pirpendicual to the table. The other idea of putting a matching piece of wood on the end sounds like another good idea.

I think I will try the dado first and i will probably use pocket screws to secure the jount.
Bob Willing is offline
post #7 of 20 Old 09-19-2009, 05:49 PM
Old School

Willie T's Avatar

Join Date: Jan 2009
Location: St. Petersburg, FL
Posts: 373
View Willie T's Photo Album My Photos
THIS will give you some tips on how to easily make several passes to avoid the kick-back.
Willie T is offline
post #8 of 20 Old 09-19-2009, 06:12 PM Thread Starter
Senior Member

Join Date: Jul 2008
Location: UP of Michigan
Posts: 938
View Bob Willing's Photo Album My Photos
Those are good videos if you are making short pieces, but I will be working with pieces 36" and 56" long and 16" wide. I suppose it could be done but I would need to build a support system to hold the long boards.
Bob Willing is offline
post #9 of 20 Old 09-19-2009, 08:55 PM
Old School

cabinetman's Avatar

Join Date: Jul 2007
Location: So. Florida
Posts: 24,062
View cabinetman's Photo Album My Photos
Quote:
Originally Posted by Bob Willing View Post
cabinetman

That is exactly what I had in mind. I tried the lock miter joint on some scrap pieces of plywood and this seems a little damgerous. I did not like the kick back because you are taking so much material all at once. I also had a problem with set-up. Another draw back is you need to attach a piece of wood to support the edge when you make the alternate edge that is when you set the wood pirpendicual to the table. The other idea of putting a matching piece of wood on the end sounds like another good idea.

I think I will try the dado first and i will probably use pocket screws to secure the jount.

I wouldn't use pocket screws. I would just use glue and clamps. Use a 2" - 3" wide piece of 3/4" (out of anything), by the length of the joint as a clamp scab against the side with the thin edge. That joint can be clamped from two directions and produces a good bond.






cabinetman is offline
post #10 of 20 Old 09-19-2009, 09:11 PM
old Woodworker

Join Date: Dec 2008
Location: Spring Texas
Posts: 5
View lcurrent's Photo Album My Photos
Edge glue

A jig like this will edge glue plywood also

http://farm3.static.flickr.com/2534/...0584e1d8_m.jpg

Plus mortise for edge gluing ( Tops ) for tables

All these were cut using this jig

http://farm3.static.flickr.com/2604/...aeec9f9b_m.jpg

Larry
lcurrent is offline
post #11 of 20 Old 09-19-2009, 09:39 PM
Senior Member

Tony B's Avatar

Join Date: Jul 2008
Location: Full time cruising on my boat. Currently on the Little Tenn. River (Tellico Lake) near Knoxville
Posts: 2,673
View Tony B's Photo Album My Photos
Another Option

This is what I do when the edge will be exposed.
I start with a piece of stock approx 2" Square and as long as needed. I then dado a 3/4" rabit on 2 sides where the plywood can butt up against and also provide a good gluing surface. Then I roundover the outside corner. I then use glue and a pin nailer.
See sketch below
Attached Thumbnails
Click image for larger version

Name:	Plywood Joint.jpg
Views:	917
Size:	27.9 KB
ID:	10796


Tony B



Retired woodworker, amongst other things, and now full time cruising the waterways on my boat.
Tony B is offline
post #12 of 20 Old 09-20-2009, 10:14 AM
Senior Member

Join Date: Apr 2007
Location: Powell River British Columbia, Canada
Posts: 2,279
View Gerry KIERNAN's Photo Album My Photos
Quote:
Originally Posted by Bob Willing View Post
Those are good videos if you are making short pieces, but I will be working with pieces 36" and 56" long and 16" wide. I suppose it could be done but I would need to build a support system to hold the long boards.
I am making an assumption here that you are doing your boards on a router table. Perhaps it would work better if you clamped the boards down to a bench and used a hand held router with an edge guide to make your lock miter joints. Take small cuts at each pass to reduce the tendency to kick back and also to reduce chipping out or splintering.

Gerry
Gerry KIERNAN is offline
post #13 of 20 Old 09-20-2009, 02:07 PM Thread Starter
Senior Member

Join Date: Jul 2008
Location: UP of Michigan
Posts: 938
View Bob Willing's Photo Album My Photos
This sounds like good idea, but don't forget the router bit is 2" or 50.8mm in diameter. I don't know if the standard plate will accept that big of a bit. I will check it out.
Bob Willing is offline
post #14 of 20 Old 09-20-2009, 06:48 PM
Senior Member

Tony B's Avatar

Join Date: Jul 2008
Location: Full time cruising on my boat. Currently on the Little Tenn. River (Tellico Lake) near Knoxville
Posts: 2,673
View Tony B's Photo Album My Photos
I would nix the lock miter idea. It will break.
Attached Thumbnails
Click image for larger version

Name:	Lock Miter.jpg
Views:	17233
Size:	38.6 KB
ID:	10810


Tony B



Retired woodworker, amongst other things, and now full time cruising the waterways on my boat.
Tony B is offline
post #15 of 20 Old 09-24-2009, 04:36 PM
Junior Member

nicewood's Avatar

Join Date: Sep 2009
Posts: 24
View nicewood's Photo Album My Photos
I would do as Tony B suggests in post 11 above, with one small variation, remove the internal corner of the corner block it will not affect the strength and will add to the internal apperance

Wood for turning, carving, and craft projects, craft shapes and cabinet hardware visit http://thewoodshed.ecrater.com/
nicewood is offline
post #16 of 20 Old 09-25-2009, 06:28 AM
Senior Member

Join Date: Jul 2008
Location: Florida Panhandle
Posts: 8,758
View GeorgeC's Photo Album My Photos
Quote:
Originally Posted by Willie T View Post
THIS will give you some tips on how to easily make several passes to avoid the kick-back.
Good link for a number of different joints.

George
GeorgeC is offline
post #17 of 20 Old 09-25-2009, 07:32 PM
where's my table saw?

woodnthings's Avatar

Join Date: Jan 2009
Location: SE, Michigan
Posts: 19,150
View woodnthings's Photo Album My Photos
To avoid the issues mentioned above

I would use a splined miter like this:
splined edge miter joint --- A joint that is used at the long edges of two planks, as in the side/bottom of a box, and that is mitered, usually at 45 degrees on each plank, and then strengthened by the addition of a spline. Compare/contrast to edge miter joint. Examples:





The only caution is not to use a spline with the long grain running the length since it will have no strength. You should make a cross grain spline so the fibers have to break rather than shear
in failure. If you have to make them in 2 - 8" pieces from wide stock that would be better than long grain. bill

The answer to your question will only be as detailed and specific as the question is detailed and specfic. Good questions also include a sketch or a photo

Last edited by woodnthings; 09-25-2009 at 07:40 PM.
woodnthings is online now
post #18 of 20 Old 09-25-2009, 08:50 PM Thread Starter
Senior Member

Join Date: Jul 2008
Location: UP of Michigan
Posts: 938
View Bob Willing's Photo Album My Photos
Thanks for all of the replies! I went with cabinetmans answer and it turned out great.
Bob Willing is offline
post #19 of 20 Old 10-25-2009, 07:24 PM
Junior Member

Join Date: Oct 2009
Posts: 7
View dansandsleeds's Photo Album My Photos
dont hide it!


it can look great if smoothed over.

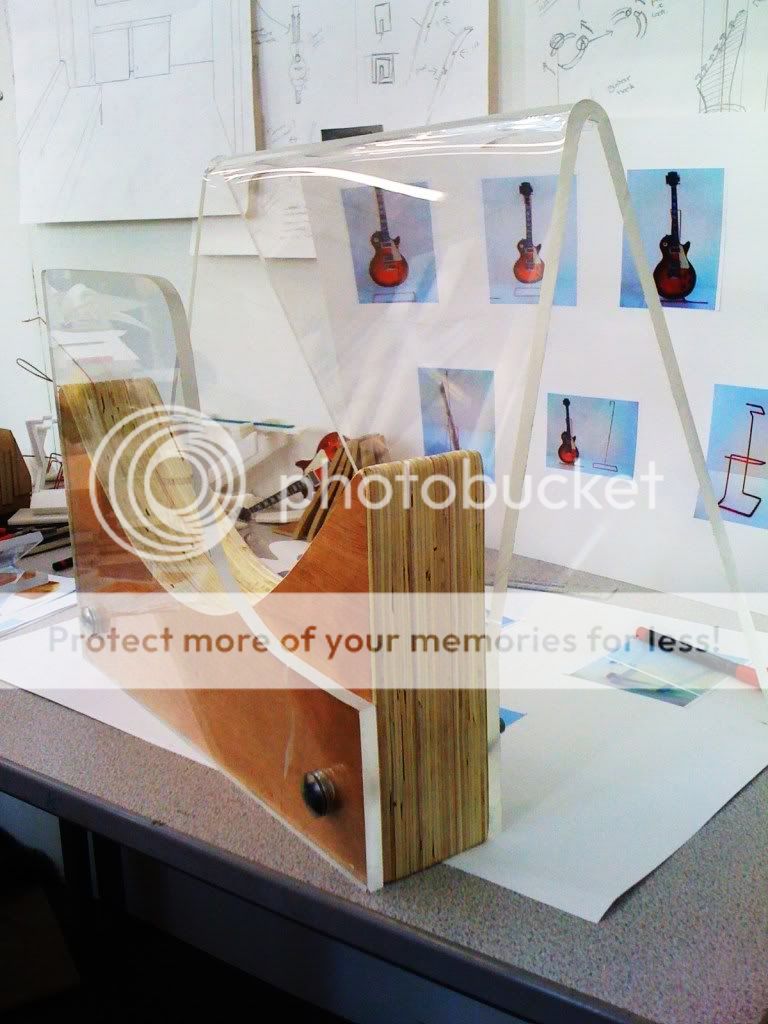

heres my recently finished guitar stand with ply!

dansandsleeds is offline
post #20 of 20 Old 10-25-2009, 08:01 PM
Senior Member

Join Date: Jul 2008
Location: Florida Panhandle
Posts: 8,758
View GeorgeC's Photo Album My Photos
Quote:
Originally Posted by Willie T View Post
I think I'd use a lock miter joint.
Even with "light" passes, lock miters in plywood seem to have a lot of splintering.

George
GeorgeC is offline
