How to cut extreme angles ???

Any ideas on how I can get a 26 degree cut on a table or miter saw? Both tools only tip 45 and 50 degrees and I need oit to go to 64. I'm cutting a 1x6 down on the flat side and I need this to be a clean cut.
Thanks
Cjh
Clutchcargo is offline
Sponsored Links
Advertisement

post #2 of 7 Old 08-25-2008, 08:32 PM
Senior Member

Handyman's Avatar

Join Date: Jan 2008
Location: Amidst of 1000 acers of crawfish ponds under a 500 year old Oak grove. SW La
Posts: 1,463
View Handyman's Photo Album My Photos
Send a message via AIM to Handyman
Quote:
Originally Posted by Clutchcargo View Post
Any ideas on how I can get a 26 degree cut on a table or miter saw? Both tools only tip 45 and 50 degrees and I need oit to go to 64. I'm cutting a 1x6 down on the flat side and I need this to be a clean cut.
Thanks
Cjh

What about cutting a 2 x 6 down the middle at a 45 degree angle, then stack one peice ontop the other and screw them together. Then clam it to your tablesaw and set the blade at a 19 degree angle and run the board on the 45 degree jig. I may have gotten the math wrong, but you get the picture.

Collector of Old Tools
Fixer of all things broke
Expert = Drip under pressure
Handyman is offline
post #3 of 7 Old 08-25-2008, 08:41 PM Thread Starter
Member

Join Date: Apr 2007
Posts: 36
View Clutchcargo's Photo Album My Photos
That'll work... Thanks
Clutchcargo is offline
post #4 of 7 Old 08-25-2008, 10:43 PM
Senior Member

Bruce B's Avatar

Join Date: Sep 2007
Location: Mesa AZ
Posts: 267
View Bruce B's Photo Album My Photos
Handyman.
Good info that is why I come here I would have never thought of that good tip.

This is only my opinion others may think differently.
Bruce B is offline
post #5 of 7 Old 08-26-2008, 06:53 PM
Old School

cabinetman's Avatar

Join Date: Jul 2007
Location: So. Florida
Posts: 24,062
View cabinetman's Photo Album My Photos
I might not be thinkin' right cause I just took my meds, but when you set up the angle to cut 26 deg, isn't the other side of the cut 64 deg?






cabinetman is offline
post #6 of 7 Old 08-26-2008, 07:14 PM
Ozark Hillbilly

Terry Beeson's Avatar

Join Date: May 2008
Location: Nixa, MO, USA
Posts: 541
View Terry Beeson's Photo Album My Photos
Send a message via Yahoo to Terry Beeson
We must be on the same meds, Cabinetman...

But acutally, both opposing angles are the same. My geometry articulation is a bit weak, but the 26 deg angle is from the 0 point of the Y axis. The 64 deg you refer to is from the X axis to the cut.

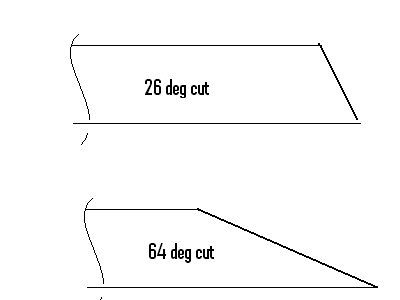

The lower image here is what I'm thinking he is after.

(DISCLAIMER... don't get out your protractor, this is NOT to scale, but just to give you the idea...)



There is a way to cut that on a tablesaw, but it would take a jig. Basically, you want to have the board on the saw fed as if you were ripping, then at the 26 deg angle of the miter. That or use an angle fence.

My money is on Niki having the perfect jig for this... Or someone else could have it as well....

I cut that board three times and it's STILL too short!!!...
http://www.geocities.com/capt9992002

Last edited by Terry Beeson; 08-26-2008 at 07:18 PM.
Terry Beeson is offline
post #7 of 7 Old 08-27-2008, 12:10 AM
Senior Member

Handyman's Avatar

Join Date: Jan 2008
Location: Amidst of 1000 acers of crawfish ponds under a 500 year old Oak grove. SW La
Posts: 1,463
View Handyman's Photo Album My Photos
Send a message via AIM to Handyman
Quote:
Originally Posted by cabinetman View Post
I might not be thinkin' right cause I just took my meds, but when you set up the angle to cut 26 deg, isn't the other side of the cut 64 deg?
Quote:
Originally Posted by Terry Beeson View Post
We must be on the same meds, Cabinetman...

But acutally, both opposing angles are the same. My geometry articulation is a bit weak, but the 26 deg angle is from the 0 point of the Y axis. The 64 deg you refer to is from the X axis to the cut.

The lower image here is what I'm thinking he is after.

(DISCLAIMER... don't get out your protractor, this is NOT to scale, but just to give you the idea...)



There is a way to cut that on a tablesaw, but it would take a jig. Basically, you want to have the board on the saw fed as if you were ripping, then at the 26 deg angle of the miter. That or use an angle fence.

My money is on Niki having the perfect jig for this... Or someone else could have it as well....


Ok friends I never said I could Add, Subtract, Divide, or Mutiply, much less caculate angles. But I figure out how to cut the angle at hand. And with my 3rd grade education That aint to bad.
